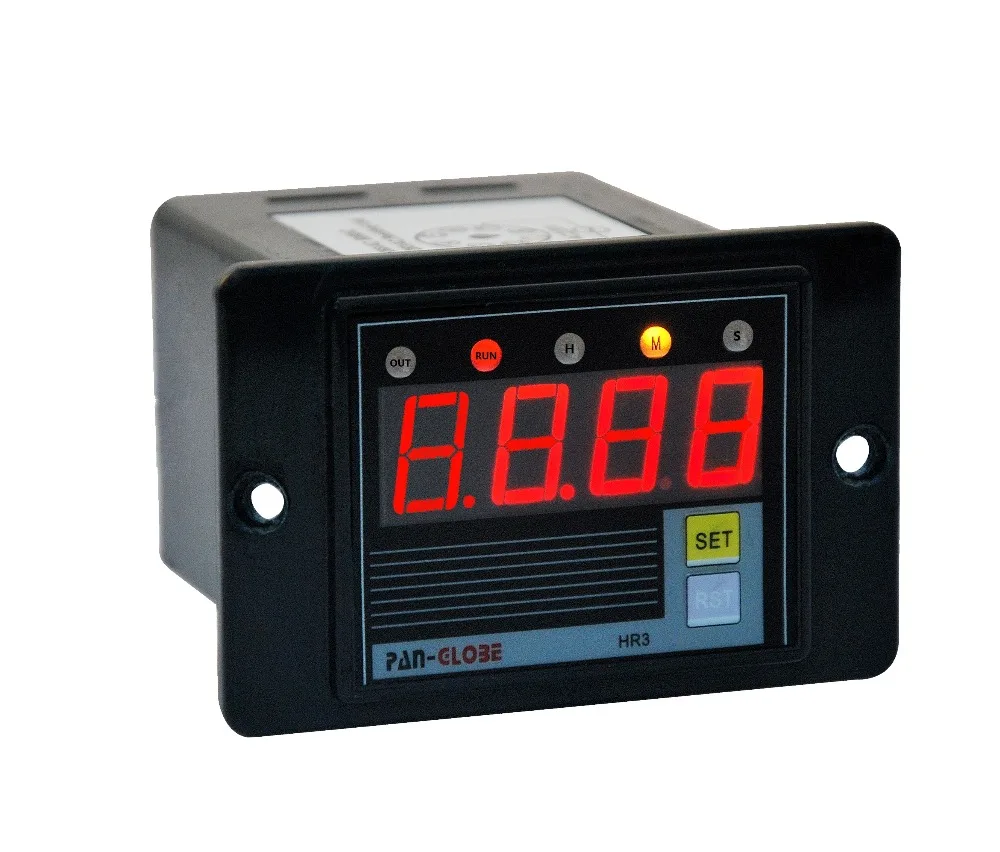

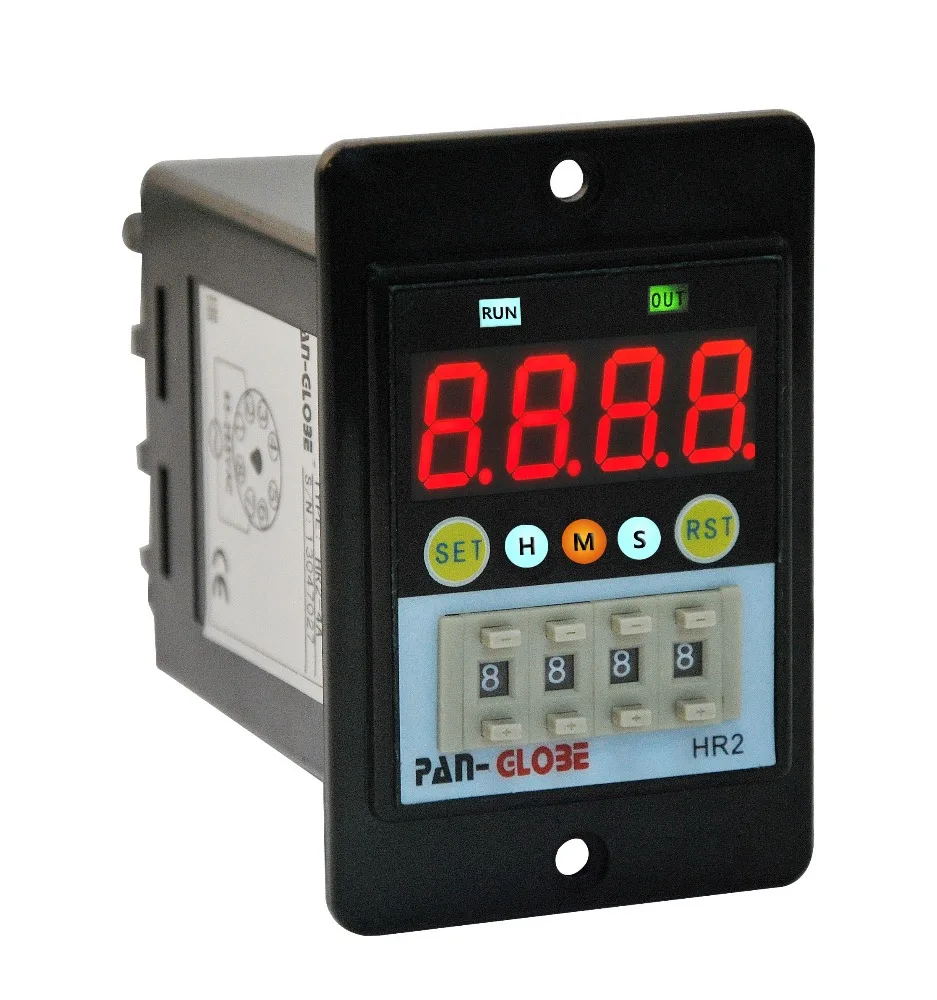

HR series timer

Power voltage

85-265VAC, 50Hz/60Hz (Optional 10-50VDC Input)

Power consumed

5VA MAX

Relay contact capacity

250VAC/3A or 30VDC/5A

Insulating resistance

100 MΩ/500VDC

Insulating Intensity

≥2KV/1MIN

Ambience

-10 ~ 60(Not frozen)  0-90%RH

Relay service life

Mechanical life L 10 million times; electric life: 1 million times

Output delay time

0.1S ~ 9.9S

Timing mode

Up or down optional

Repeated accuracy

0.2% F.S

Set accuracy

0.1% F.S

Recovery time

200 ms

Recovery mode

Power recovery or RST switch and terminal

NO

Words on panels

Description of content

1

OUT

Output indicators

2

H

Hour unit indicator

3

M

Minute unit indicator

4

S

Second unit indicator

5

RUN

Instrument normal operation indicator

6

SET

Time delay set button

7

RST

Return button
