Product Description

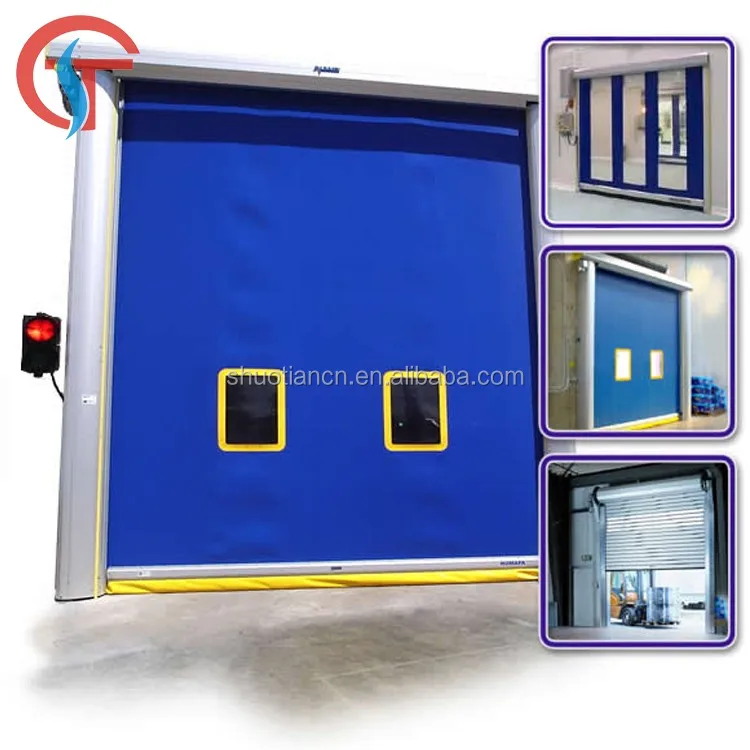

High Speed Door.

Shuotian high speed doors are designed for fast open and close, allowing people and/or equipment to move quickly through the opening. This type of doors is ideal for large size opening and designed for high performance daily use both internally and externally with minimal maintenance. The door operated as speed > 1m/s, this model doors offers beneficial energy saving in both commercial and industrial application. In additional it reduces noise and dust from nearby working areas. It was ideally choice for many commercial and industrial application...

\t
FrameWork Material
\t
1.Power Coated Steel Fame
2.Aluminum Track
3.Stainelss Steel Frame: S.S 201 & S.S 304
\t
High speed Motor
\t
1.German SEW & Nord
2.China SEJ or Tube Motor
Size from 0.75JW - 2.2 KW accordingly to different speed door size
\t
Command System
\t
Radar Sensor, Floor Sensor, Remote Control, Push button, Rope Swtich ect
\t
Control Panel
\t
1. Japan Mitsubishi
2. China Holip

Specification.

1. Door curtain: High strength polyster textile fiber
2. Curtain thickness: 0.8 - 1.2 mm
3. Opening speed: 0.8 - 1.5 M/S
4. Closing speed: 0.6 - 1.0 M/S
5. Side Rail options: 2.0mm thick cold-roll steel sheet (Bao Steel) / 2.0mm thick stainless steel
6. Tube shaft: 114mm diameter / 2.5mm thickness round tube
7. Cover box options: 1.0mm thick cold-roll steel shett (Bao Steel ) / 1.0mm thick stainless steel
8. Motor brand: SEW / NORD
9. Motor power: 550W / 750W / 1500W / 2200W / 4000W
10. Control box: HOLIP / MITSUBISHI
11. Safety performance: Airbag / Photo cell

12. Optional control mode:Loop Sensor, Radar, Remote control, Linkage interlock, Pull rope, etc..

\t
Control System
\t
Japan Mitsubishi Inveter, PLC and other components.
\t
Dynamical Systems
\t
Motor: SEW or Nord from Germany Factory.(China unit: SEJ/SERVO system)
\t
Most stable brake system or Advanced Servo System, 220V~380V/50 -60HZ
\t
Power: 0.75kw ~ 3.0kw(According to the size of door)
\t
Fast Speed Gate Construction
\t
Framework
\t
In 2mm thickness cold-roll steel sheet or on request in Stainless steel INOX201/304, Plaint color accordingly to your order
\t
Rolling Drum
\t
2mm thickness steel/Galvanized rube with machined blacks at each side and incorporating high-speed bearing.
\t
Cross Bar
\t
Normal in aluminum rod for small doors. Additional with Steel pipe for large opening and high-wind application.
\t
Color
\t
Red/Yellow/Blue/Sky blue/Orange/Mesh white and yellow/White/Green/Black/Grey.
\t
Transparent Window
\t
Transparent pvc sheet 1.5mm thickness. Window sizes and loaction accordingly to your requirement.
\t
Command System
\t
Magnetic Loop/Radar Sensor/Rope switch/Remote Control/Finger printer/Bluetooth/Key card etc.
\t
Safety System & Seal
\t
Photocell Sensor
\t
Installed ont he side track with emergency rebound opening when sensing obstacles.
\t
Safety edge bottom
\t
When the people or vehicle touch the bottom edge of closing doors, It bound up automaticlly.
\t
Emergency stop protection
\t
With emergency stop button on the main control board.
\t
Seal
\t
Seal brush are installed inside of guider rail. Besides there is trap heavier fabric on the bottom, Close to any uneven ground.
\t
Technical Parameter
\t
Power Supply: Single or Three phase 220V~260V.. Three phase 380V~460V. 50/60HZ.
\t
Max Size: 10m width * 15m height
\t
Opening & Colsing speed: 0.7~1.5m/S
\t
Operation Frequency: 1000~1500 Cycles/Day
\t
Wind load: 15m/S
Accessories Detail

Gear Box.

Nord brand(German), Size from 0.75~3.0KW).

Explosion-proof motor.

Size from 0.75~1.5KW.

Tube Motor.

Size from 0.55~1.2KW.

Related Products

Rigid Speed Sprial Door.

High speed door system, Panel made of Aluminum PU slat, Insulated, security and durable.

Stacking High Speed Door.

Combine speed operation and high anginst wind abality. Cross bar as steel pipe for larger size door.

Zip Door(SD or Tube motor).

Sidetrack with Zip, Suitable for interior application, Self-repaire.New desigen with tube motor.

Sectional Industrial door.

40mm insulated panel, High security and Soundproof, Heat insulation etc. Use for warehouse, dock leveler etc.

Glass Sectional door.

PC Panel or Glass panel with sliding system, Use for 4S Shop, Warehouse, Garage Etc.

Metal Roller Shutter Door

Material option: Steel, Color sheet, Aluminum, Stainless steel etc, with mesh, grill, normal design.

Application

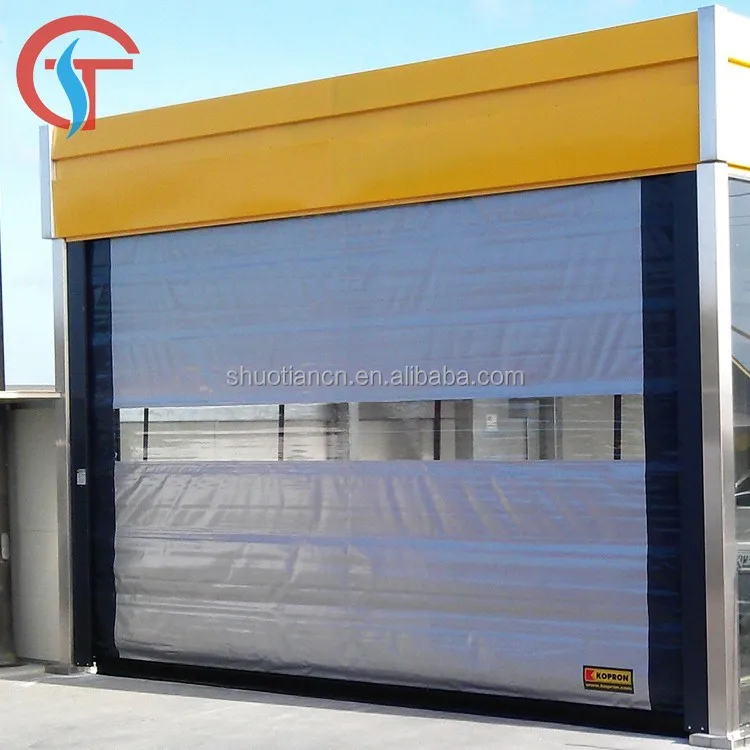

Carwash: Each machnine with 2 door at exit and entrane

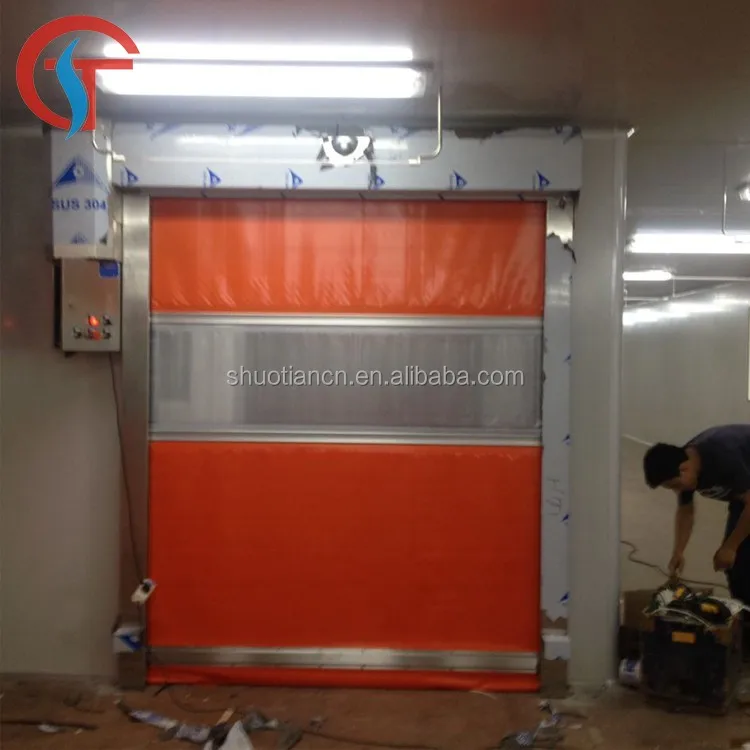

Clean Air Solution: airshower room with 2 door, it can active with sensor, And open door with airshower's command

Convey Belt: Use for cargo in and out when delivery via convey belt

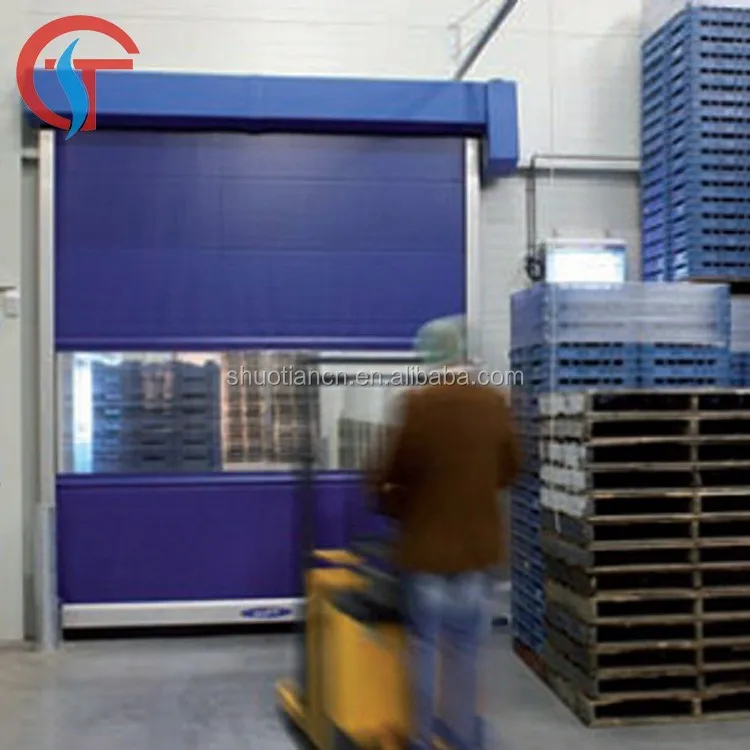

Dock leveler& Warehouse: Fix with Dock leveler, For truck load and unload cargo into warehouse and keep heat inside

Parking lots: The door operation with floor sensor or key car to control the car in& out of packing lots.

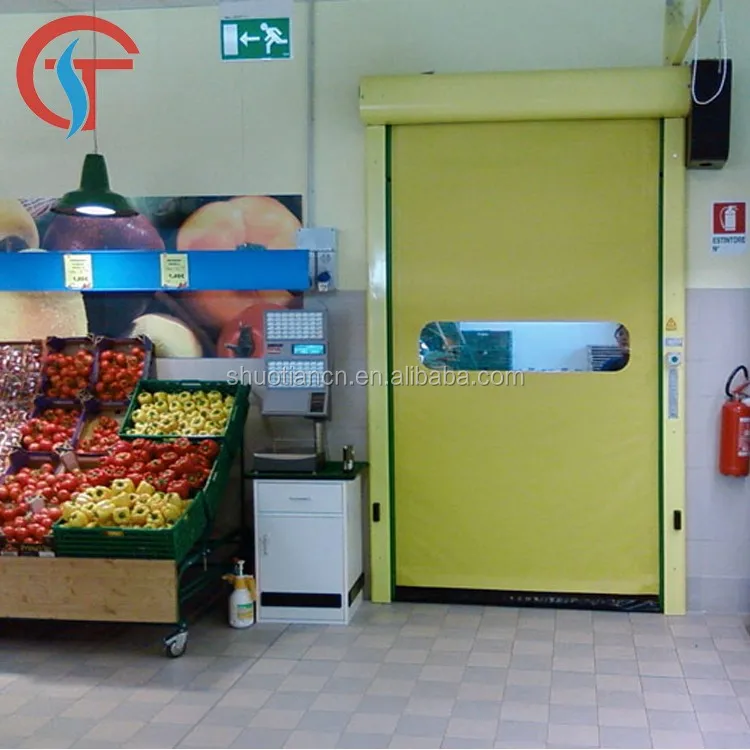

Cold room & Food Facotry: High performance operation to keep the cool air inside, Cutain can be aluminum & pvc insulated panel.

Production Workflow
Packing & Delivery

Plywood Case.

Inside with plastic sheet & Cardboard

Our Company
Guangzhou SHUOTIAN industrial door Co.,ltd specialized in high speed door, industrial door, Swing door and different type rolling door. High speed door could work with Radar & Loop sensor and other command system. High speed door could use as Logistic warehouse doors, And cleanroom doors. High speed door could widely use for many place.

Our Advantage:
1. Shuotian industial door been involed in industrial door manufacture for over 15 years.And have a lot experience for different appliaction arear
2. We been cooperate with many famous company. Like KOHLER/AVON/HONDA/TOYOTA/PEPSI.AMWAY ETC
3. We been export doors to over 30 country

4. We been cooperated with many famous factory.

FAQ

1. What's the delivery time?
For common order, 7 days only

2. How long warranty for the doors?
We provide 12 month warranty for all doors and accessories.

3. Do you provide OEM Service?
Yes. We do provide OEM Service

4. How about the package?
Plywood case or Cardboard,Accordingly to your choose

5. What's the MOQ?
We accepte 1 set as trail order
