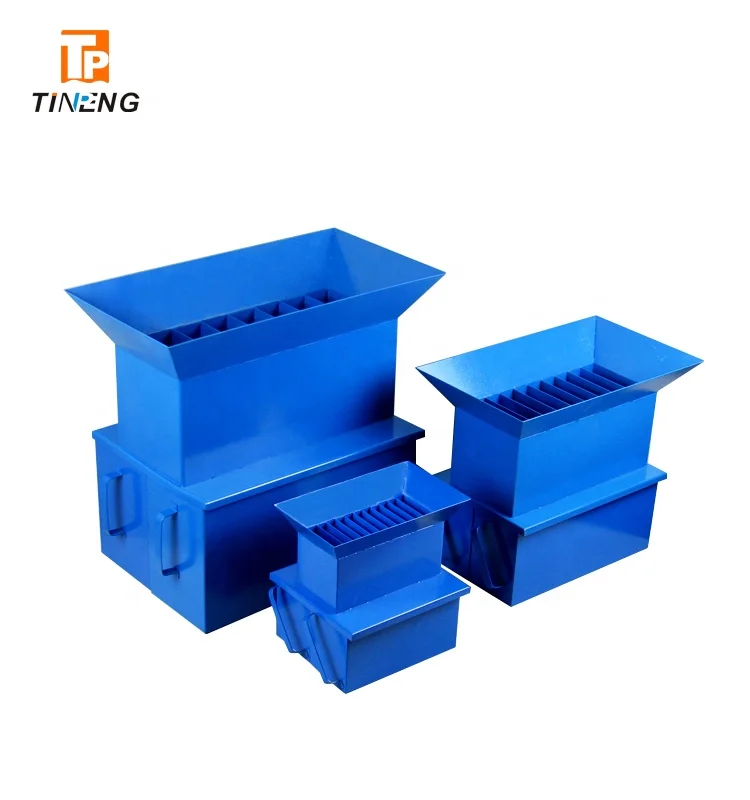

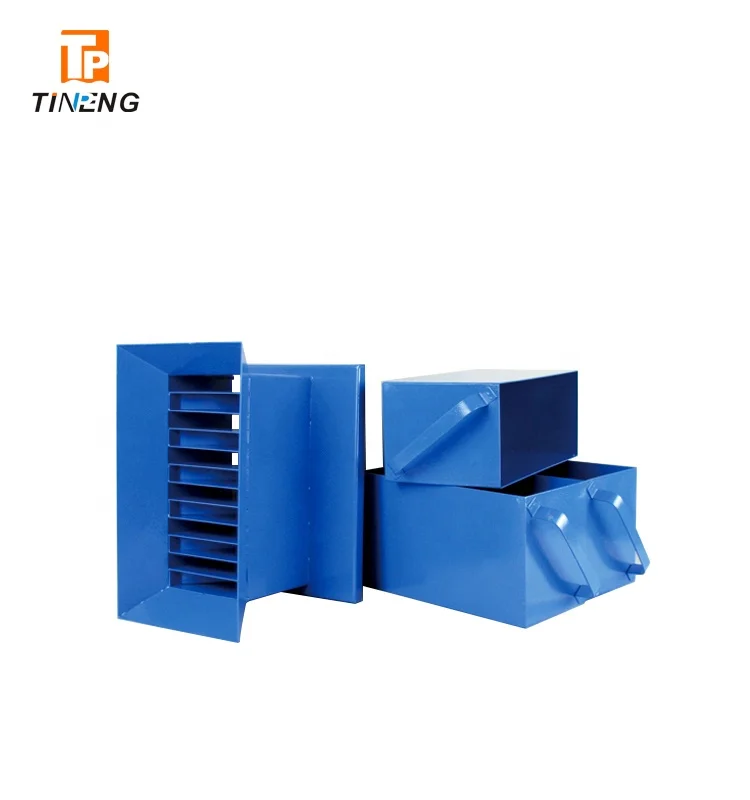

Soil steel riffle boxes(sample dividers)

Product Overview

Description

For aggregate up to 150 mm size Adjustable openings from: 12.5 mm with 12.5 mm increments Clam shell hopper 26 dm3 capacity Complete with two pane.



For the rapid preparation of samples, i.e. division into two representative portions. Detailed below is a range of dividers, each constructed of heavy gauge sheet metal, with particular attention given to reinforcement of the partitions to maintain the accuracy of the slot dimensions.
The units offered are supplied in a range of sizes from 7 mm to 64 mm slots.




Code	Max. size sample(mm) BS      EN	Slot width(mm)	No. of slots	Capacity (dm3)
EL23-3000	4.5     3.5	7	12	0.3
EL23-3050	8.5     6.5	13	12	2.0
EL23-3070	10.0    7.5	15	12	2.0
EL23-3100	12.5    9.5	19	10	4.0
EL23-3150	16.5   12.5	25	10	4.0
EL23-3170	20.0    15	30	10	4.0
EL23-3200	25.0   19	38	8	11.0
EL23-3300	33.0   25	50	8	14.0
EL23-3350	42.5   32	64	8	18.0
