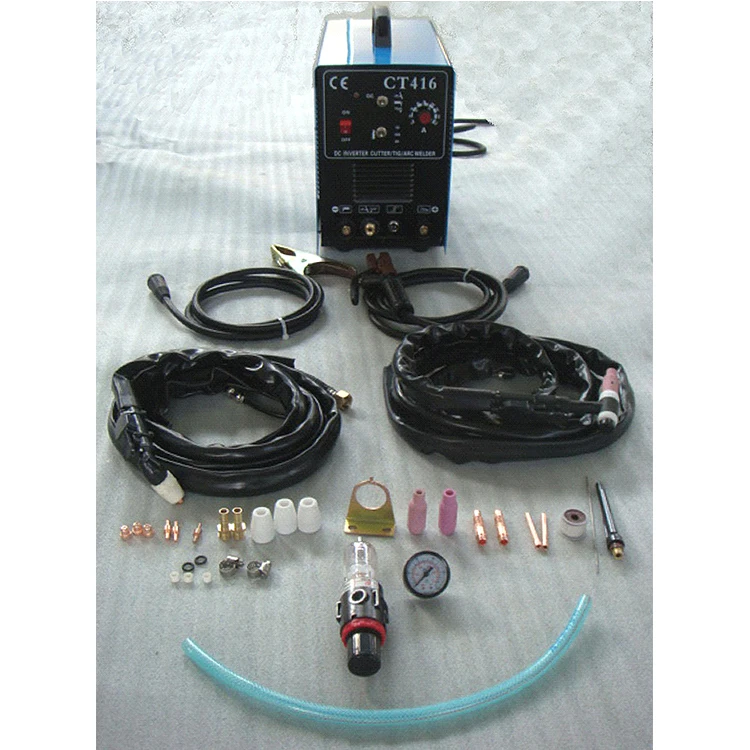

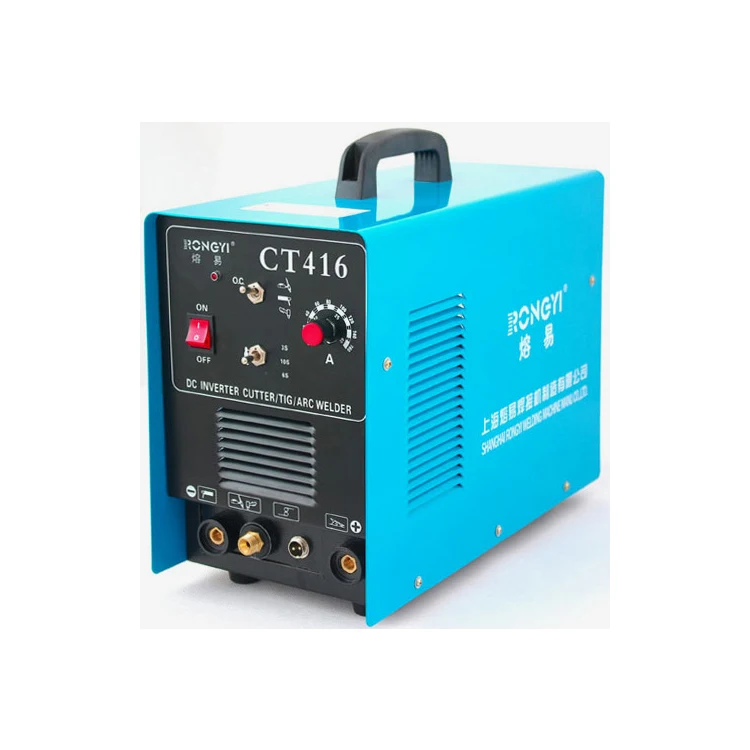

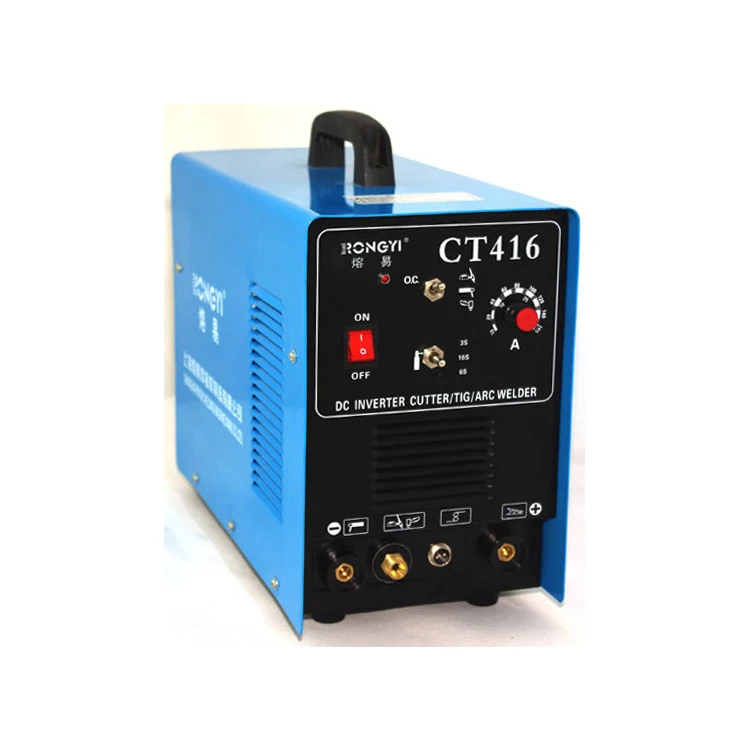

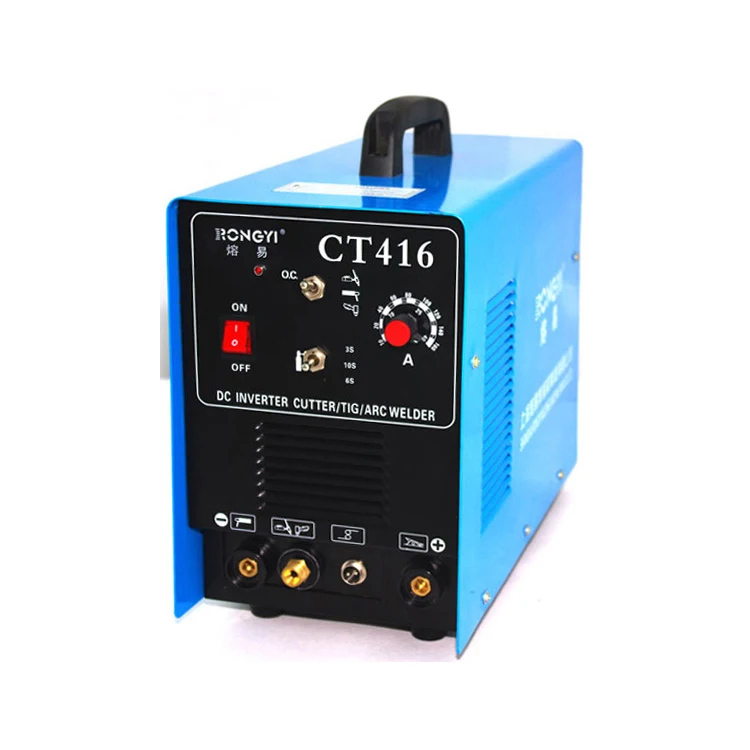

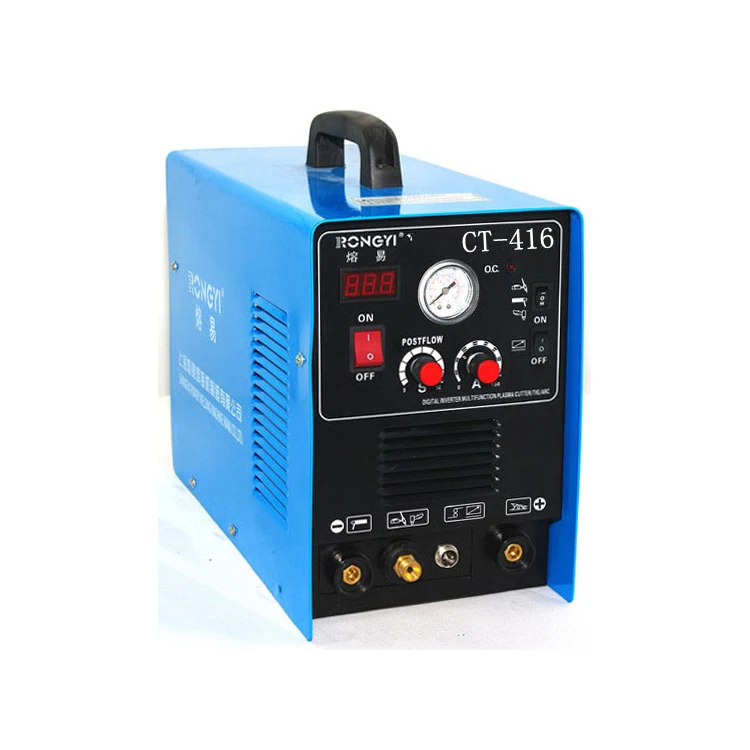

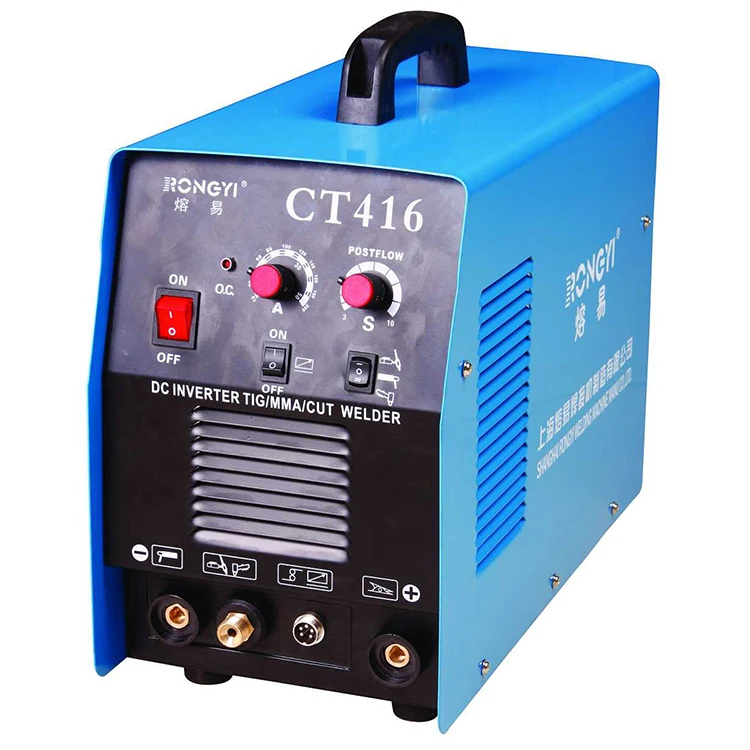

CT416 Инвертор постоянного тока многофункциональный сварочный аппарат
- Category: Plasma Cutters >>>
- Supplier: Shanghai Rongyi Welding Corporation
Share on (253645504):
Product Overview
Description
Features of Inverter DC Multi-Functions Welding machine (CT416):
1. Advanced MOSFET inverter technology, high working efficiency, DC output;
2. Compact structure, convenient to carry, reliable and durable, easy for maintenance;
3. Multi-function of TIG and MMA welder as well as air plasma cutting;
4. We also can provide 110/220 v duel automatic input voltage shift; or 110v voltage input,
5. Air cooling, thermostatic protection, suitable for DIY;
Parameters of Inverter DC Multi-Functions Welding Machine (CT416):
Model Spec. | CT416 |
Power supply voltage | AC 220+/-10% |
Power supply capacity | 3.3 kVA |
Rated input current (TIG) | 15 A |
Rated input current (MMA) | 22 A |
Rated input current (CUT) | 26 A |
Output current range (TIG) | 10 - 160 A |
Output current range (MMA) | 10 - 160 A |
Output current range (CUT) | 20 - 40 A |
No-load voltage (TIG) | 56 V |
No-load voltage (MMA) | 56 V |
No-load voltage (CUT) | 220 V |
Operating voltage (TIG) | 16.4 V |
Operating voltage (MMA) | 26.4 V |
Operating voltage (CUT) | 144 V |
Dia. of welding rodΦ(MMA) | 3.2 mm |
Arc initiation way (TIG) | HF |
Arc initiation way (MMA) | Touch |
Arc initiation way (CUT) | HF |
Protection grade provided by enclosure | IP 21 |
No-load loss | 40 W |
Cosφ (η) | 0.85 |
Insulation grade | F |
Duty cycle | 60% |
Efficiency | 85% |
Air pressure (CUT) | 0.4 MPa |
Gas flow (TIG) | 2-5 L/min |
Gas flow (CUT) | 80 L/min |
Cutting thickness (CUT) | 1-8 mm |
Weight | 12.4 kg |
Dimension (mm) | 575*320*455 |
