200T Disk Type Die Spotting Machine

Product Overview

Description

NC series vertical type die spotting machine draws essences of products of the same type at home and abroad, and is the main facility for design and development.  This product is mainly utilized for repair and maintenance of various plastic die, hardware casting die and thin-strip tensile forming die.  It, boasting convenient, fast and automatic operations, substitutes traditional simple fitting of knocking by copper bar, and greatly promotes efficiency and precision of fitting.  NC series vertical type die spotting machine adopts PLC control, human-machine interface operations, proportion pressure adjustment and chooses different pressures according to working requirements.

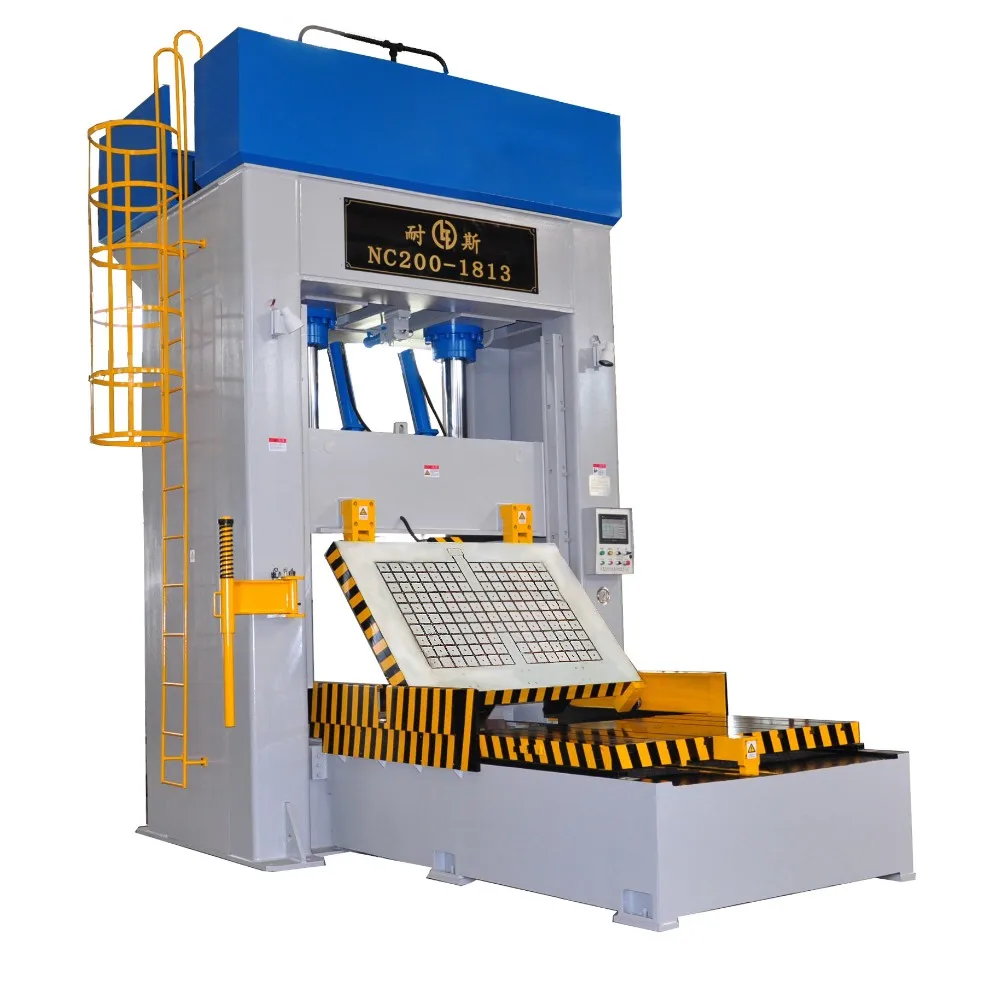

Model:NC200-1813

Max close force:200T

Max lift force:80T

Mould open space:1800MM

Working table size:1800X1300MM

Upper table bearing force:5T

lower table bearing force:11T

Permanent magnetic force of upper magnetic chuck:125T

Permanent magnetic force of lower magnetic chuck:80T

Up/down speed:70/80MM

Pressurizing speed:<25MM

Eject capacity:5T

Eject stroke:100MM

Out stroke of lower working table:2800MM

Motor power:15KW

Total Height of the Machin:5680MM

Land Area of the Machine: 4960x3640MM
