nut rolling steel rod threading threaded rod machine

Product Overview

Description

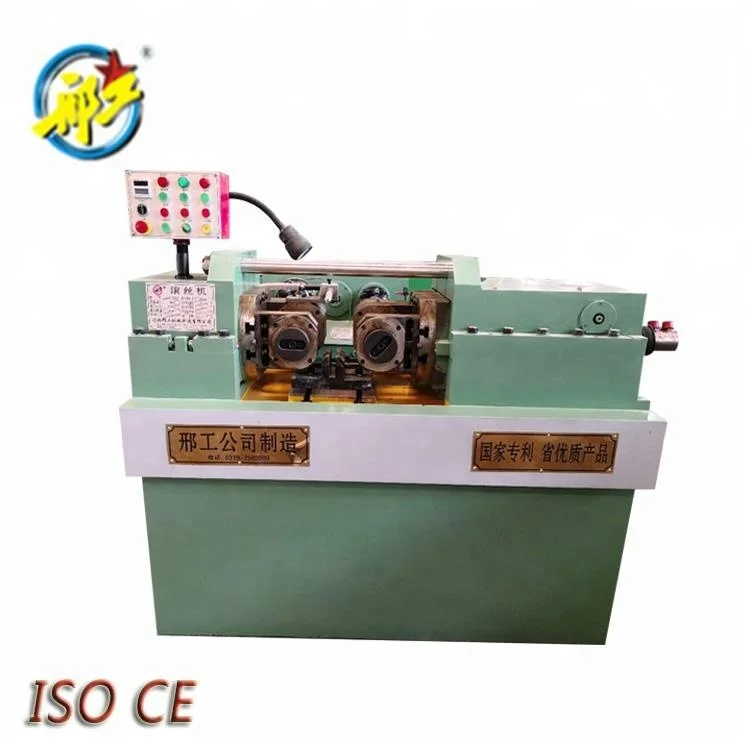

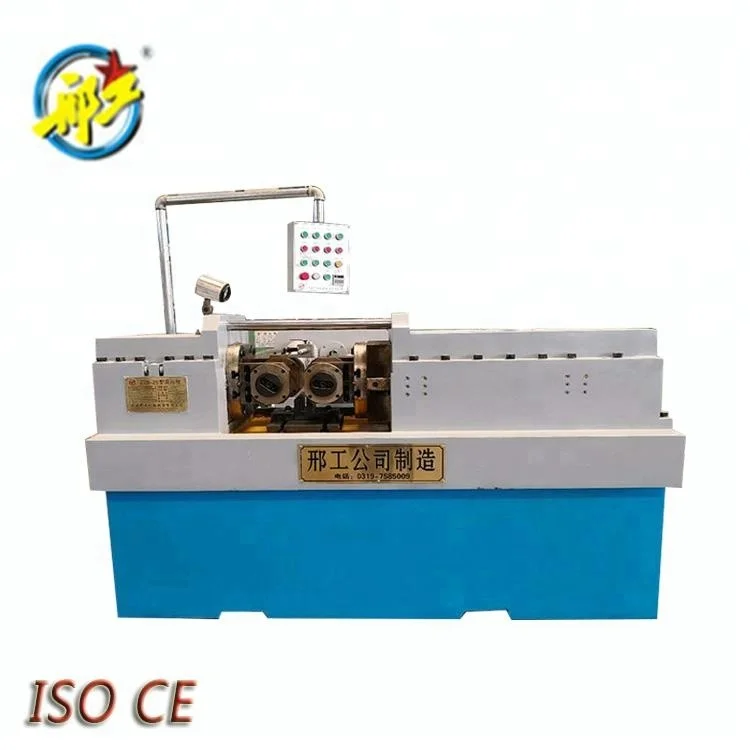

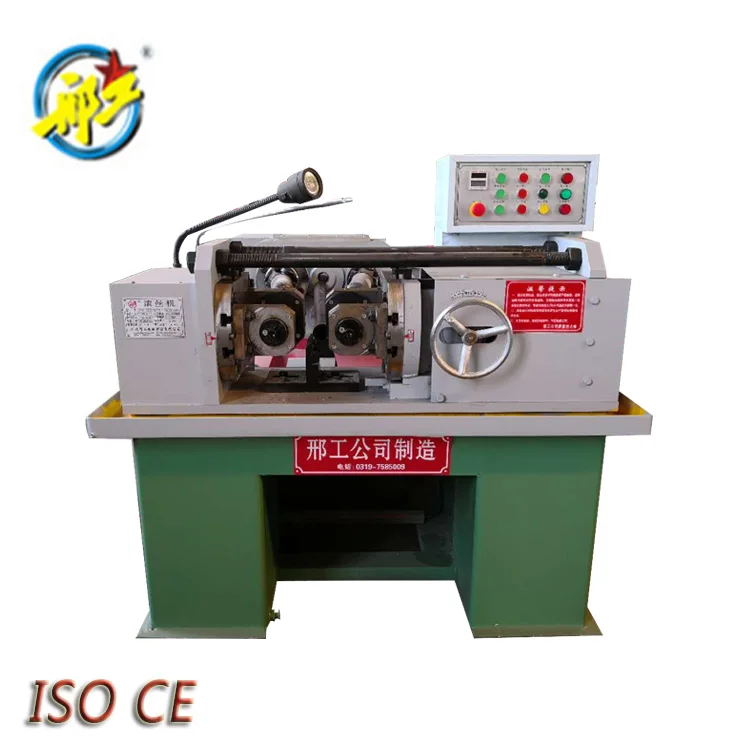

steel rod threading machine

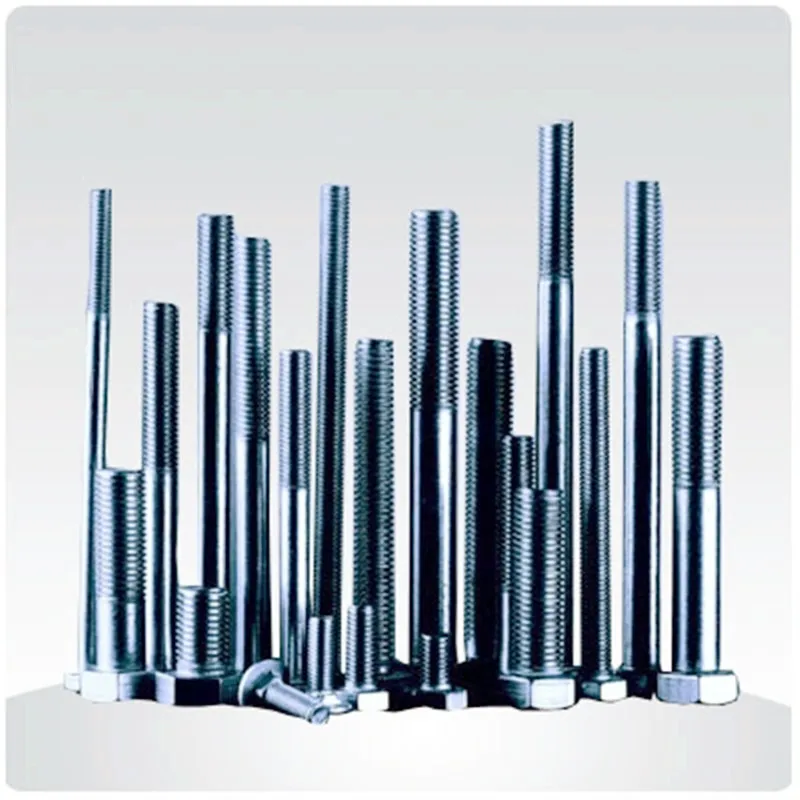

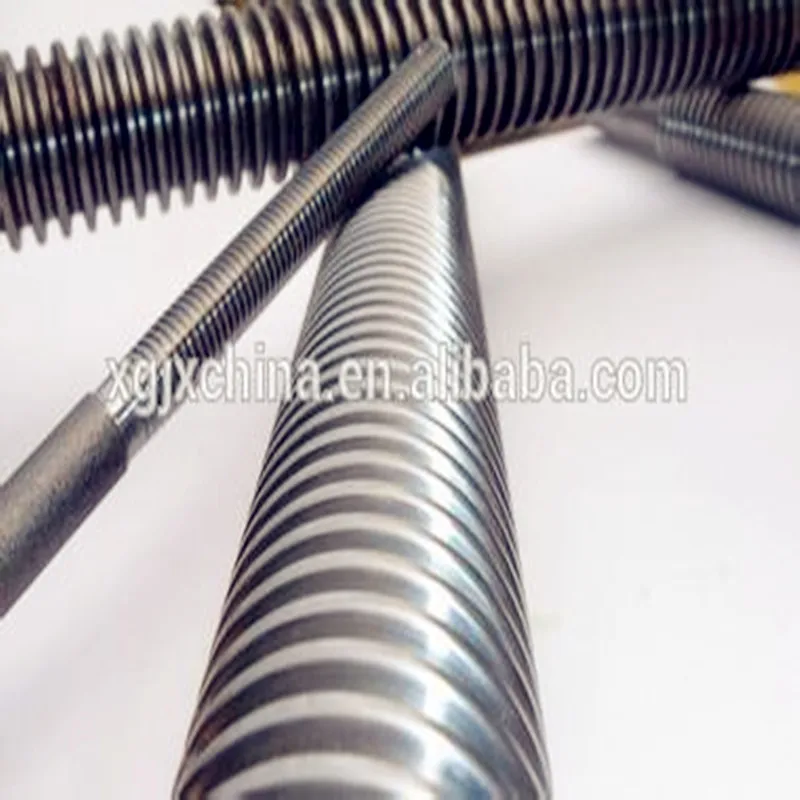

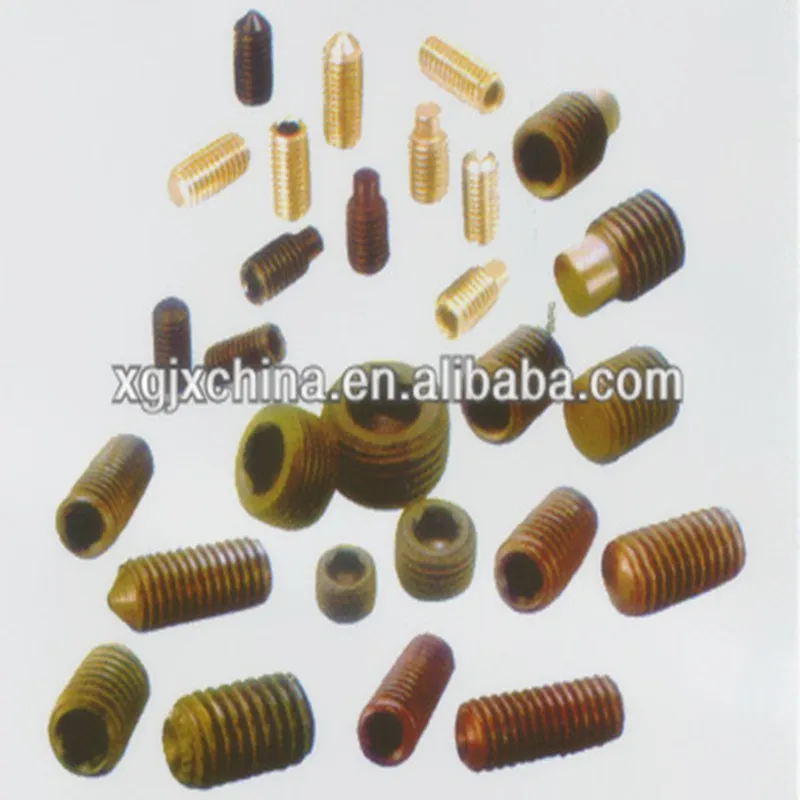

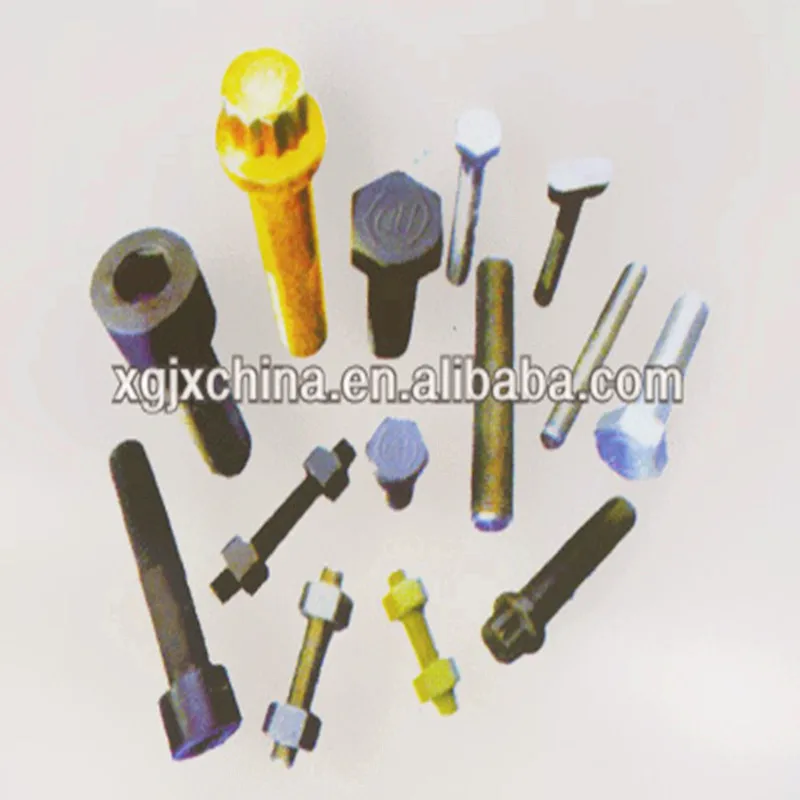

this model is widely praised for its rational price,easy maintenance and radial process,it is used to process regular and irregular bolt,through screw etc.with optional embossing roller.the through screw made with this machine in ZheJiang standard parts base has been exported to US,Canada and Europe.

parameters:

pressure of roller max:150KN

working dia:4-48mm

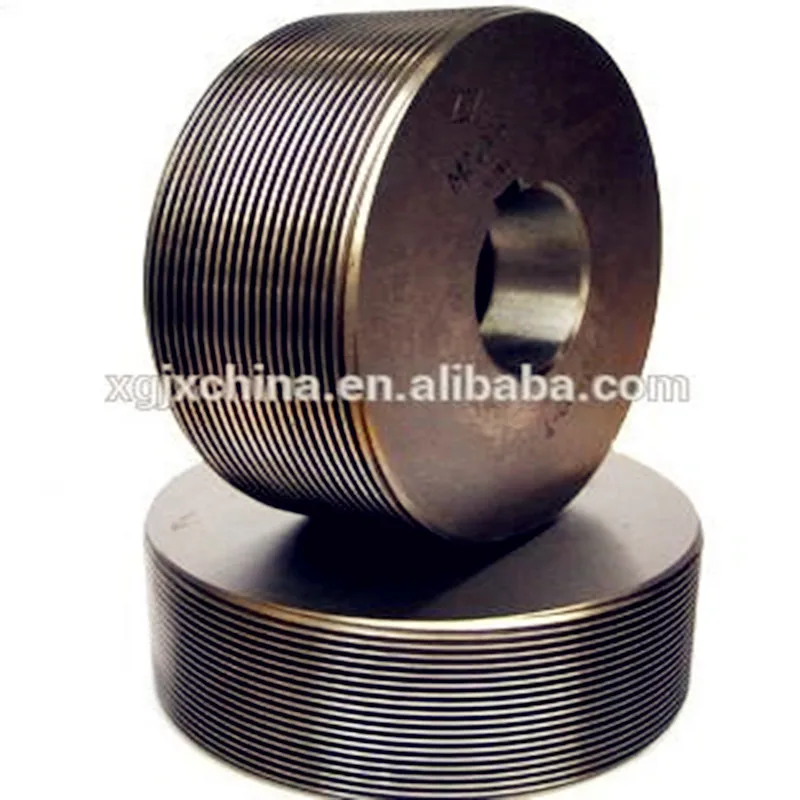

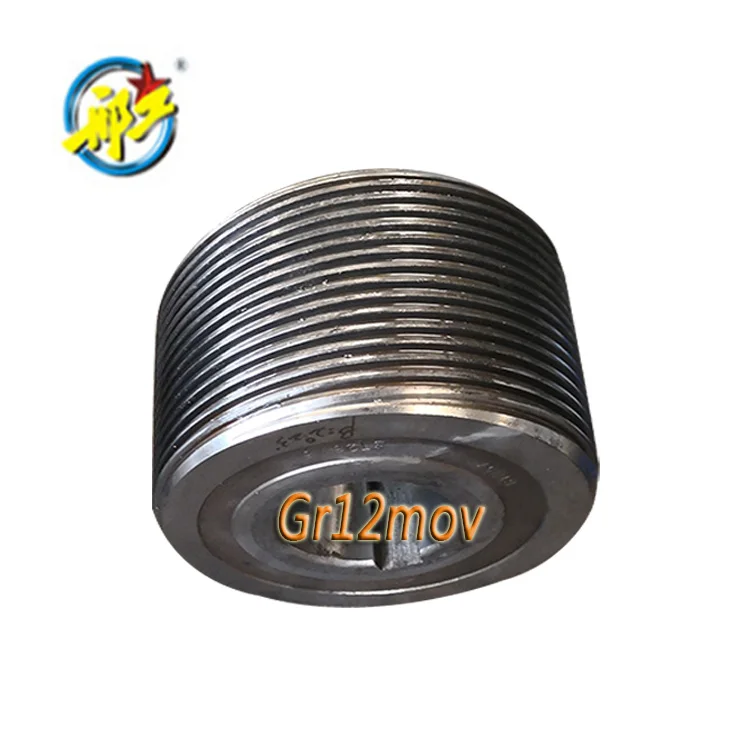

OD of roller:120-170mm

BD of roller:54mm

roller width max:100mm

dip angle of main shaft:+ -5degree

center distance of main shaft:120-240mm

rotary speed of main shaft:36,47,60,78(r/min)

feed speed of movable shaft:5mm/s

thread length:no limits

main power:4kw

hydraulic power:2.2kw

weight:1700kg

size:1500*1380*1140mm

Company Information

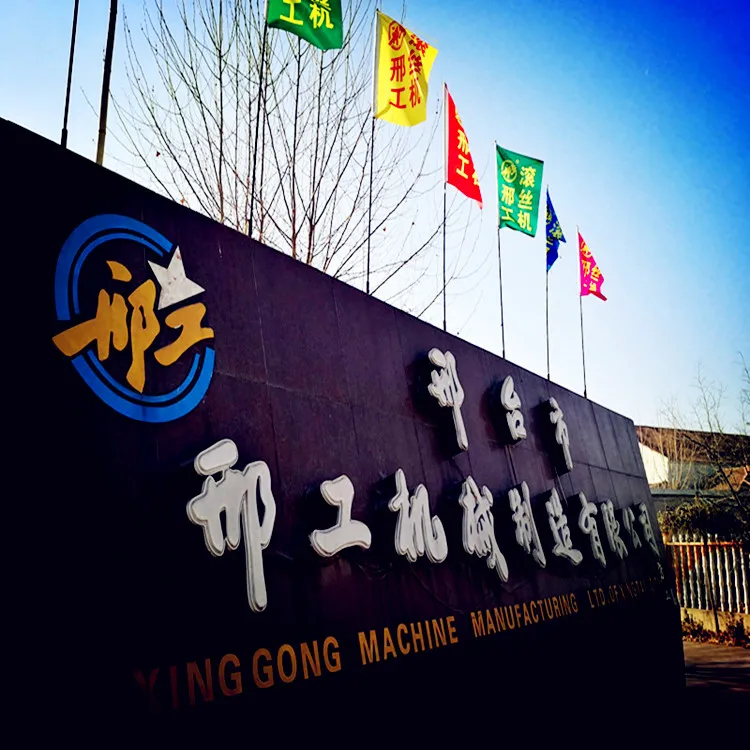

Xinggong Machine Manufacturing Ltd. Of Hebei is located at Xingwan Industrial Zone, Xingtai City, Hebei Province, which has a long history of machinery manufacturing. As a member of China Association of Mechanical Parts Sectors, this company has got successive extension ever since 1984 and has trained numbers of qualified personnel on technology and management. Currently, threading machine is the leading product of this company, it has a series of 4 and covering more than 1200. Thanks to the perfect management, advanced technology, reliable quality and firstclass service, the company passed certification of ISO 9001 international quality control system in August, 2003. “Xinggong” has been conferred as a famous brand of Hebei Province. The thread rolling machine has been given the title of “High-Quality Product of Hebei Province”.
