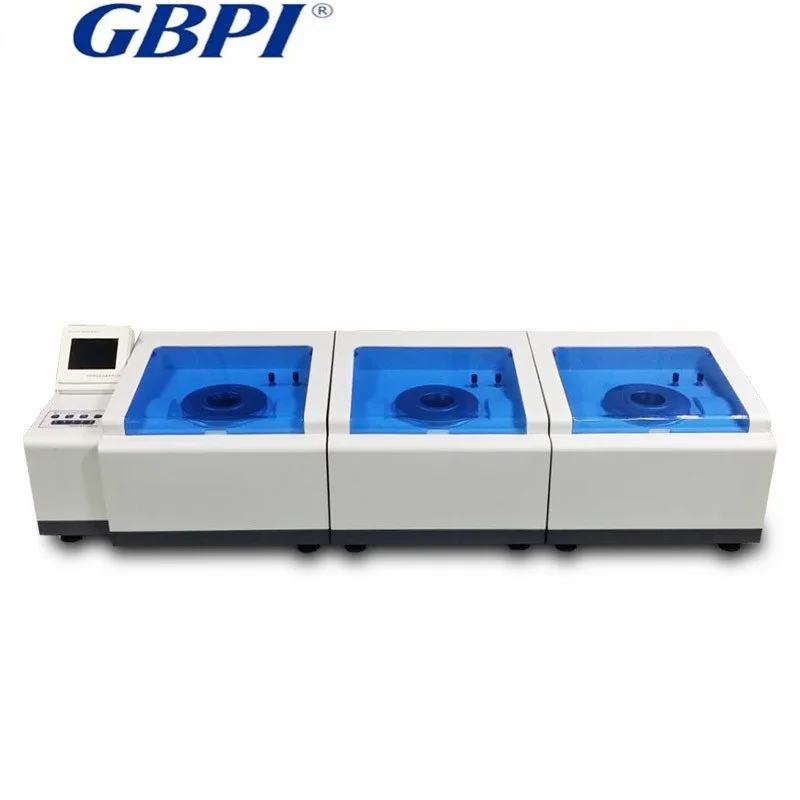

W533 Laboratory Equipment Water Vapor Permeability Analyzer
- Category: >>>
- Supplier: Guangzhou Biaoji Packaging Equipment Co. Ltd.
Share on (255563995):
Product Overview
Description
Module W533
Laboratory Equipment Water Vapor Permeability Analyzer
Water Vapor Permeability Analyzer
Standards
ASTM E96
Application :
* Films
Rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP
* Sheet
Engineering plastics, rubber, waterproof building materials, and thermal insulation materials, e.g. PP, PVC, PVDC, and nylon
*Packages
Paper, plastics, rubber,paper-plastic composite, glass, and metal packages, eg: bottles, containers
Working principle
W533 Water Vapor Permeability Analyzer was designed with the principle of weighting method to use weight reduction method to test the water transmittance rate (WVTR) of plastic films. Namely in the regulated temperature, relative humidity conditions, the sample two sides keep the vapor different pressure, measuring the vapor volume passed through, figure out the WVTR value. Unit is g/ m2·24h.
Techinical Parameter
| Test range | 0.01~10000 g / (m2·24h) |
Test accuracy | 0.001 g / (m2·24h) |
| Temperature range | 10~50 ℃ |
Temperature accuracy | ±0.1 ℃ |
Humidity range | Outside the cup ≤ 10 %RH, inside the cup ≥ 90 % |
Humidity accuracy | ±1%RH |
Test area | 50.24 cm2 |
| Sample size | Φ 90 mm |
| Sample thickness | ≤ 2 mm |
Sample amount | 1~3 pieces |
Instrument size | 122cm×42cm×34 cm |
| Weight | 103 kg |
Powe | 750 W |
Power supply | AC 220 V, 50 Hz |
Features:
Precise & Reliable
- High precision sensor, continuous data collecting, accurate and dependable.
- Test accuracy reaches 0.001 g / (m2·24h), which stays in leading position of the industry.
- Adopt the only Standard Films in the industry which are authorized by AQSIQ and developed by GBPI to verify the instrument, and the data are 100% reliable.
- The discreteness of data for the same sample is less than 5%.
Multi-testing Chambers to test samples flexibly and Efficiently
- Three chambers with unique sensor in every chamber. Can stop any one of the chambers to change sample, which can effectively enhance the test efficiency.
- Three chambers can test three different samples.
- Can extend to the maximum of six chambers. Every chamber works independently.
- Fully automatic operation, One-click test, automatic judgment and automatic stop.
- Supported by professional software. Software interface is simple and easy to operate.
- Built-in operating system, can work independently without computer.
- Curves of temperature, humidity, weight and transmission rate, real time display and zoom in/out.
- Professional test report, can be exported in Office or PDF formats easily.
- Configured with a 7-inch color touch screen for setting parameters, display curves and report.
- Temperature control adopts international advanced electromagnetic technology. Program stepping controlling makes the temperature rises and drops automatically.
- Carry cutting-edge ARM controlling system, running independently without computer.
- Automatic over range protection.
- Humidity control utilizes proportioning dry and wet gas, performing excellently.
- Parameters are locked with password automatically.
- Add external fittings for packaging container test, being able to test bag, pouch, bottle, can, bowl,aluminum foil, aluminum-plated film, and many other packaging containers.
- The only tester in the industry that can test High barrier materials like aluminum foil and aluminum-plated film.
- Adopt two calibrating methods: Weight calibration and standard film calibration. Configured with appropriative mouthpiece of temperature and humidity.
After sale Service:
l 2 years coverage
l Speedy reply, 12hrs response to customer questions
l Software free update
l Minor maintenance ---parts ship within 24 hrs
l Major maintenance---Technical will be sent within 15 days
l Free inhouse training for customer operator
