MB3100 millivoltmeter milliammeter panel meter

Product Overview

Description

digital dc voltmeter

Meter size: w96 x h48 x d77mm

Mounting hole: w90 x h45

Snap-in

CE passed

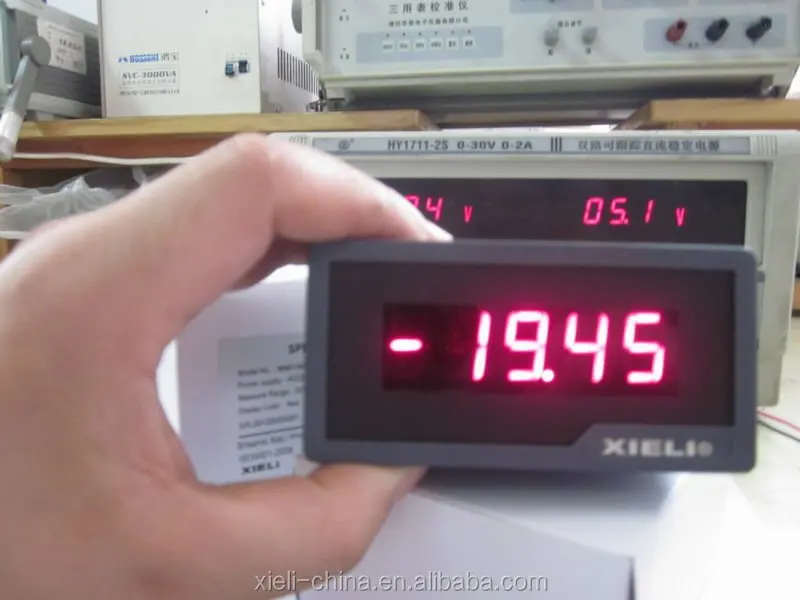

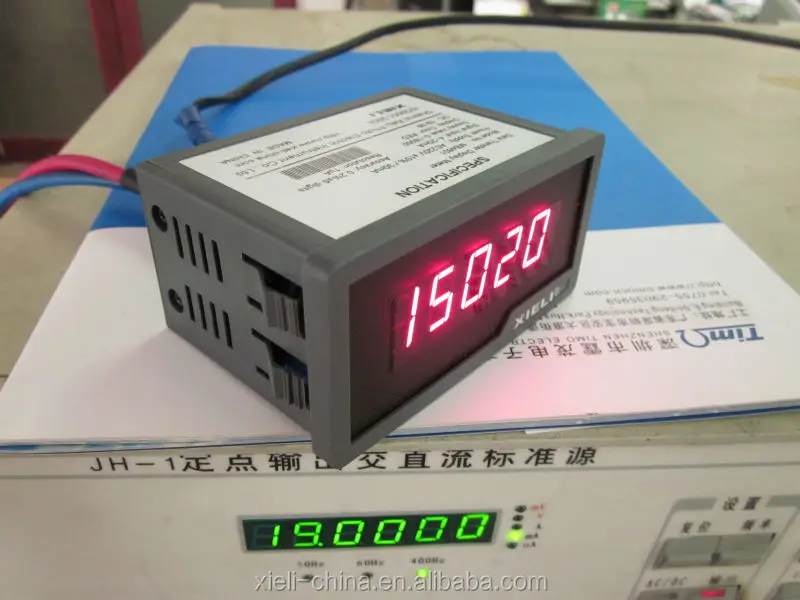

MB3100 Series  DC voltmeter  3 1/2 digit, 0.56” LED display

Model	Range	Accuracy	Resolution	Impedance	Momentary Max. Input	Power Supply
MB3101	±199.9mV	±0.3%+1digit	100uV	100MΩ	±10V	5v/12vdc, 9v/12vac
MB3102	±1.999V	±0.3%+1digit	1mV	100MΩ	±35V	5v/12vdc, 9v/12vac
MB3103	±19.99V	±0.3%+1digit	10mV	10MΩ	±250V	5v/12vdc, 9v/12vac
MB3104	±199.9V	±0.3%+1digit	100mV	10MΩ	±400V	5v/12vdc, 9v/12vac
MB3105	±300V	±0.5%+1digit	1V	10MΩ	±500V	5v/12vdc, 9v/12vac

MB3200 Series  DC Ammeter  3 1/2 digit, 0.56” LED display

Model	Range	Accuracy	Resolution	Impedance	Momentary Max. Input	Power Supply
MB3201	±199.9uA	±0.5%+1digit	100uA	1KΩ	±15mA	5v/12vdc, 9v/12vac
MB3202	±1.999mA	±0.5%+1digit	1uA	100Ω	±50mA	5v/12vdc, 9v/12vac
MB3203	±19.99mA	±0.5%+1digit	10uA	10Ω	±150mA	5v/12vdc, 9v/12vac
MB3204	±199.9mA	±0.5%+1digit	100uA	1Ω	±500mA	5v/12vdc, 9v/12vac
MB3205	±1.999A	±0.5%+1digit	1mA	0.1Ω	±3A	5v/12vdc, 9v/12vac





NOTE:

1      Power Supply:  5vdc,150mA common ground * Default power style

               12vdc, 9v/12vAc common ground power style available

               5v/12v/24v isolation power style available, 9-18v/18-36v wide range isolation power module style

               110V/120V/ 220V/240VAC power style available

2      Data transfer display: Input 75mV/5v/10v volt, or 4-20mA, 1A/5A amp signal display appointed value, max. 19999

3      Meter extra function Selection:  a. AC TrMS measure  [Any wave format signal measuring ]

                             b. RS232/RS485/MODBUS communicating port [MB4000 series meter]

                             c. 4-20mA output

                             d. Up/Down limit relay switch output, Setting by panel front button[MB3000 series meter]

4      LED Display Color:  Red/Blue color Available

5         DC polarity: Automatic,  “-” display  negative DC Volt/Amp,  default will be Positive DC signal

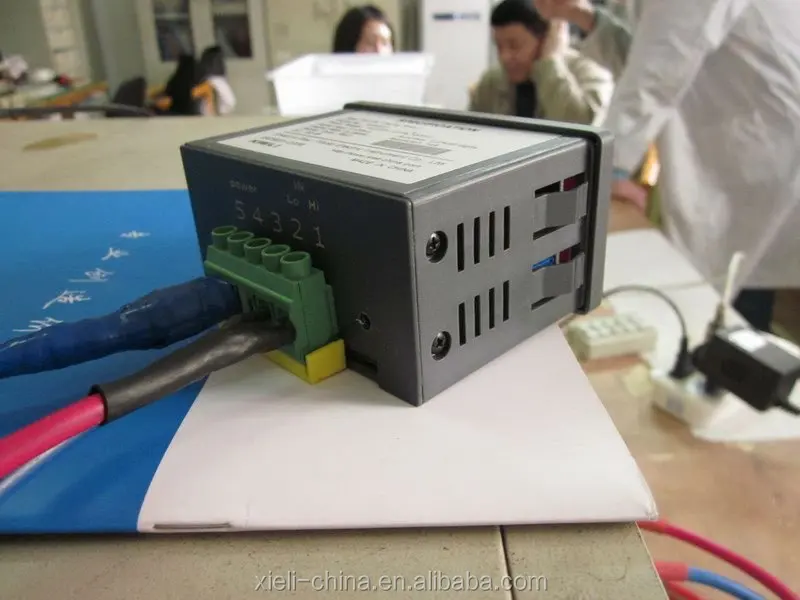

6         Dimension:  w96 x h48 x d77mm[d87mm if the meter with RS485/RS232/MODBUS, 4-20mA /relay switch output]

Panel mounting size: w90x h45mm          Mounting method: Snap-in /Guide-screw
