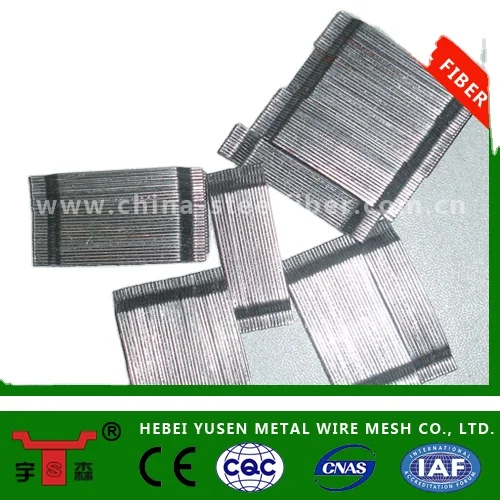

hooked end glued steel fiber

Product Overview

Description

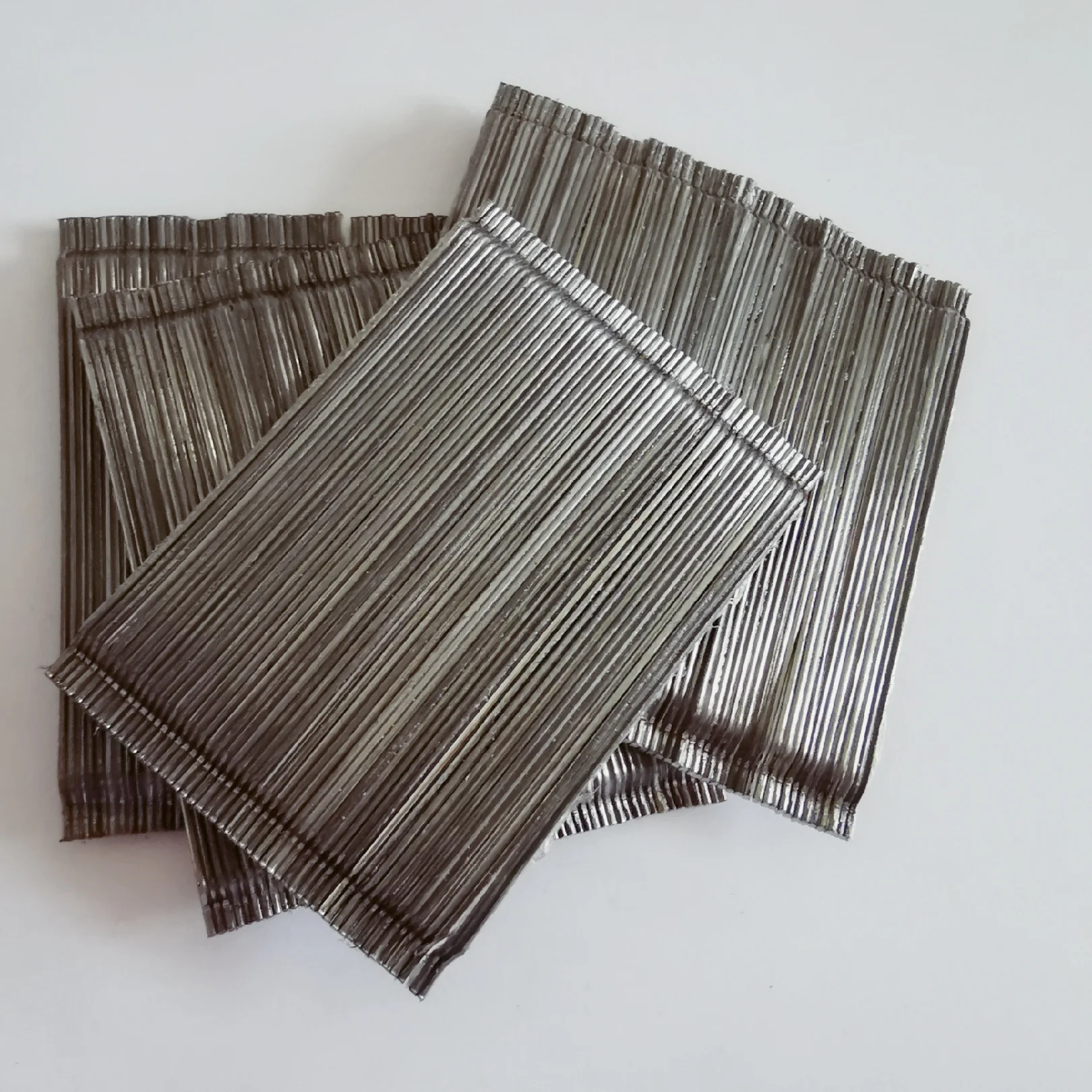

1.General Introduction of the  Steel Fiber with end hook



The steel fiber is made of high-quality low carbon steel wire,with the characteristic

of the high tensile strength,good toughness,etcs.



2.Application



This product is widely used in the construction fields for concrete reinforcement

or  the shotcrete for tunnle.



3.Quality assurance



According to the standard of JG/T3046-1999 Steel Fiber Concrete,

YB/T 151-1999 Steel Fiber for Concrete and ASTM AB820-90 Steel Fiber

for the Fiber-Rinforced Concrete.



4.Specification

<

hooked ends steel fiber
TYPE	Diameter(mm)	Length(mm)	Length/Diameter	Tensile strength
YS-60/60	1.0	60	60	>=1000Mpa
YS-50/50	1.0	50	50	>=1000Mpa
YS-65/60	0.9	60	65	>=1000Mpa
YS-55/50	0.9	50	55	>=1000Mpa
YS-80/60	0.75	60	80	>=1000Mpa
YS-45/35	0.75	35	45	>=1000Mpa
YS-55/30	0.55	30	55	>=1000Mpa
YS-60/30	0.5	30	60	>=1000Mpa
YS-50/25	0.5	25	50	>=1000Mpa
YS-60/25	0.4	25	60	>=1000Mpa
