concrete Steel Fiber

Share on (255979955):


Price:RUB 59,461.68 - RUB 89,192.52

Quantity:


Product Overview

Description



Product Description

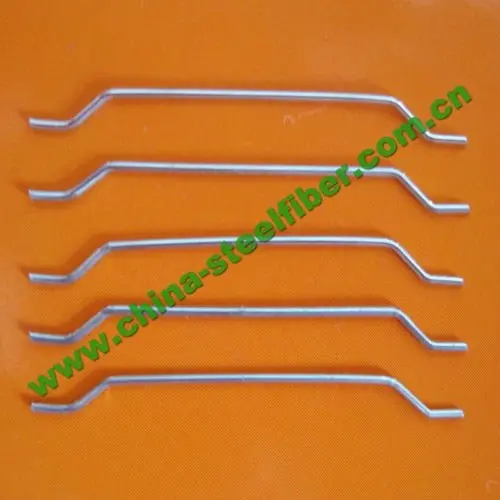

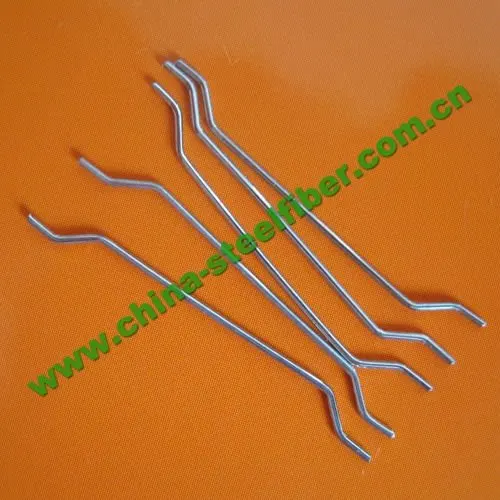

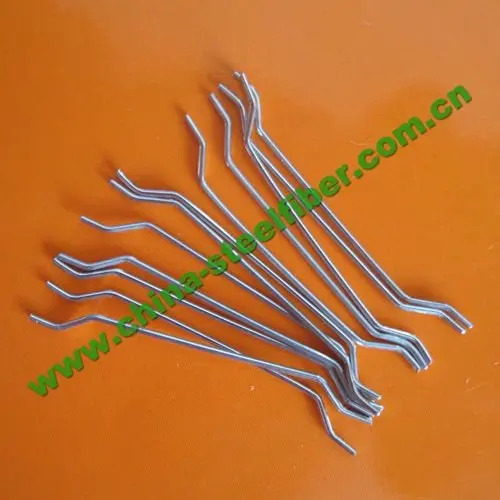

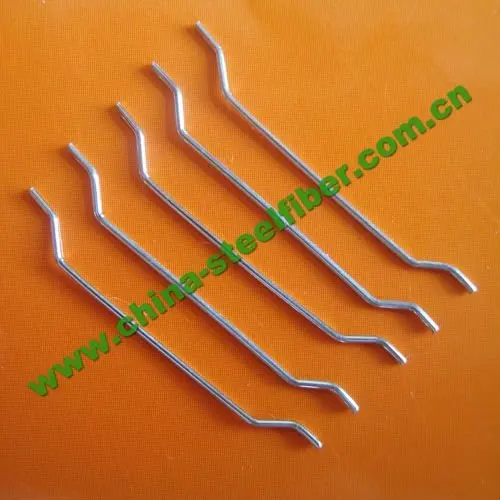

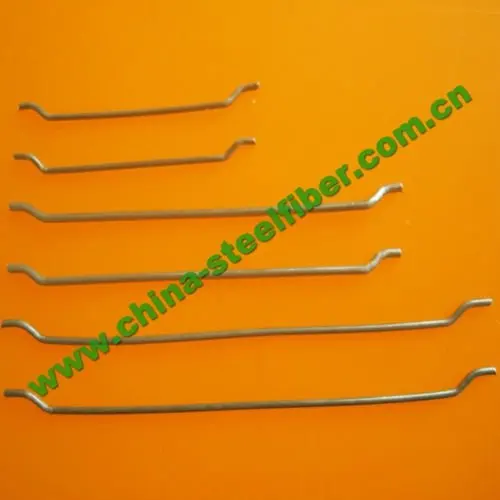

1.General Introduction of the Hooked Ends Steel Fiber



The steel fiber is made of high-quality low carbon steel wire,with the characteristic

of the high tensile strength,good toughness,etcs.



2.Application



This product is widely used in the construction fields for concrete reinforcement

or  the shotcrete for tunnle.



3.Quality assurance



According to the standard of JG/T3046-1999 Steel Fiber Concrete,

YB/T 151-1999 Steel Fiber for Concrete and ASTM AB820-90 Steel Fiber

for the Fiber-Rinforced Concrete.



4.Specification

<

The Specification of Hooker Ends Steel Fiber
TYPE Diameter(mm) Length(mm) Length/Diameter Tensile strength
YS-60/60 1.0  60 60 >=1000Mpa
YS-50/50 1.0  50 50 >=1000Mpa
YS-65/60 0.9  60 65 >=1000Mpa
YS-55/50 0.9  50 55 >=1000Mpa
YS-80/60 0.75  60 80 >=1000Mpa
YS-45/35 0.75  35 45 >=1000Mpa
YS-55/30 0.55  30 55 >=1000Mpa
YS-60/30 0.5  30 60 >=1000Mpa
YS-50/25 0.5  25 50 >=1000Mpa
YS-60/25 0.4  25 60 >=1000Mpa
