HAS VIDEO Rubber Or Resin Polymer Flexo Plate Making machine (Water wash or chemical wash) for Printing Machine
- Category: >>>
- Supplier: Wenzhou Xiaohai Import And Export Co. Ltd. [Zhejiang China]Wenzhou
Share on (256071934):
Product Overview
Description

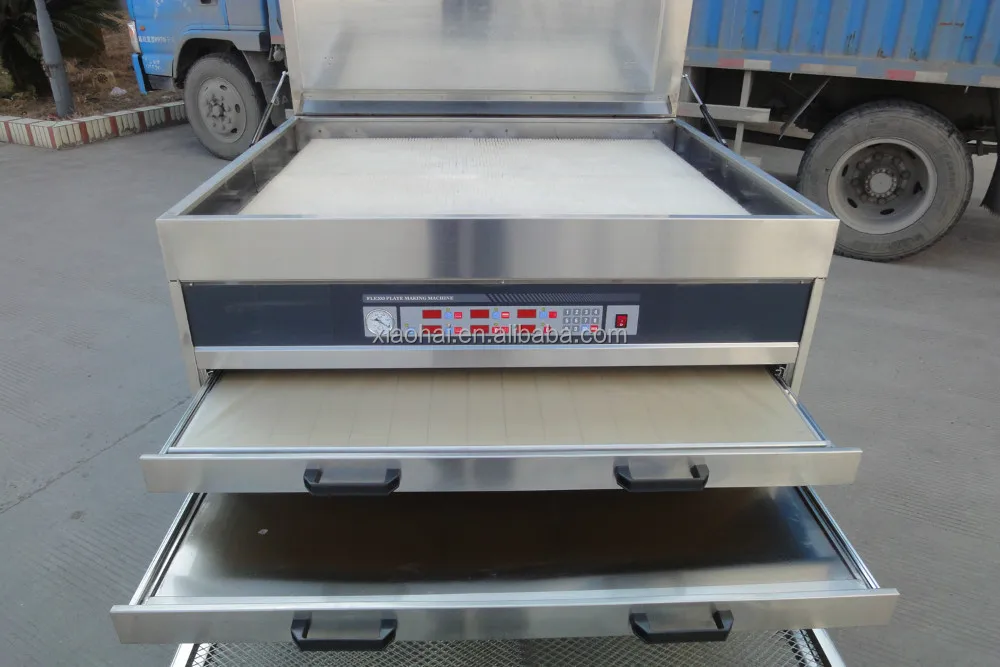

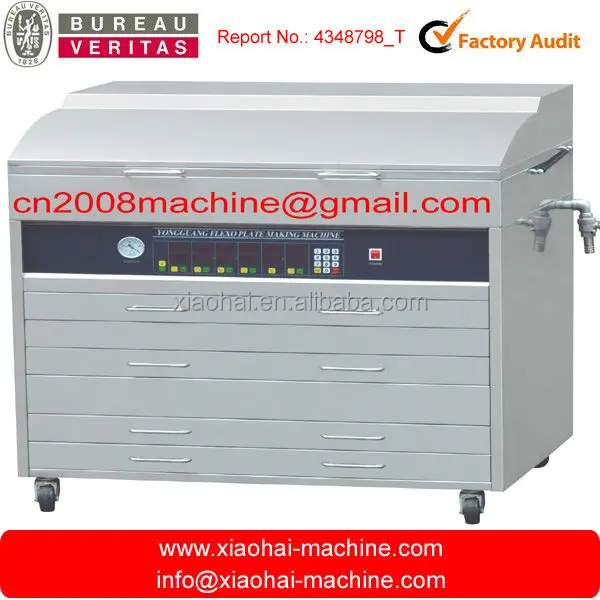

Rubber Or Resin Polymer Flexo Plate Making machine (Water wash or chemical wash) for Printing Machine
(sell plate made in japan also)
Usage:
It is used to make solid photopolymer plates and iron resin plates, which is an ideal equipment for plate making of sticky label, brand, seal and ribbon etc.
Performance and Features?
1. Multiple functions of exposure, rising and drying integrated in one machine.
2. Imported Philips light source with stable spectrum and balanced printing-down effect.
3. The diffuse reflection highly clear violet air bleeding film imported from Japan enjoys an outstanding vacuum effect and high exposure transmission.
4. The carefully selected brush with moderate hardness, extremely smooth rinsing plate ensures perfect effect and a professional level.
5. 220 V power supply, less power consumption, attractive and practical design, totally stainless steel structure, durable and rust-free for ever.
2. Imported Philips light source with stable spectrum and balanced printing-down effect.
3. The diffuse reflection highly clear violet air bleeding film imported from Japan enjoys an outstanding vacuum effect and high exposure transmission.
4. The carefully selected brush with moderate hardness, extremely smooth rinsing plate ensures perfect effect and a professional level.
5. 220 V power supply, less power consumption, attractive and practical design, totally stainless steel structure, durable and rust-free for ever.
Model | RZ400 | RZ600 | RZ760 | RZ900 | RZ 1200 |
Max.plate making size | 400X300mm | 600x400mm | 760X460mm | 900x600mm | 900x1200mm |
Total power | 1.5kw | 2.2kw | 3kw | 5kw | 7kw |
Machine size(mm) | 850x730x1350 | 1015X855X1350 | 1100X920X1350 | 1190X950X1350 | 1290X980X135 0 |
weight | 200kg | 260kg | 320kg | 450kg | 580kg |
Also you can watch our machine working here: //v.youku.com/v_show/id_XMTQ0MjU1NDEy.html
Customer Bought This Machine,Also Have Interesting To Buy Following Machines:
1. 4 colors flexo printing machine
2. 2 colors flexo printing machine
3. high speed 150meter wide web flexo printing machine
5. flexo cylinder plate mounter machine
