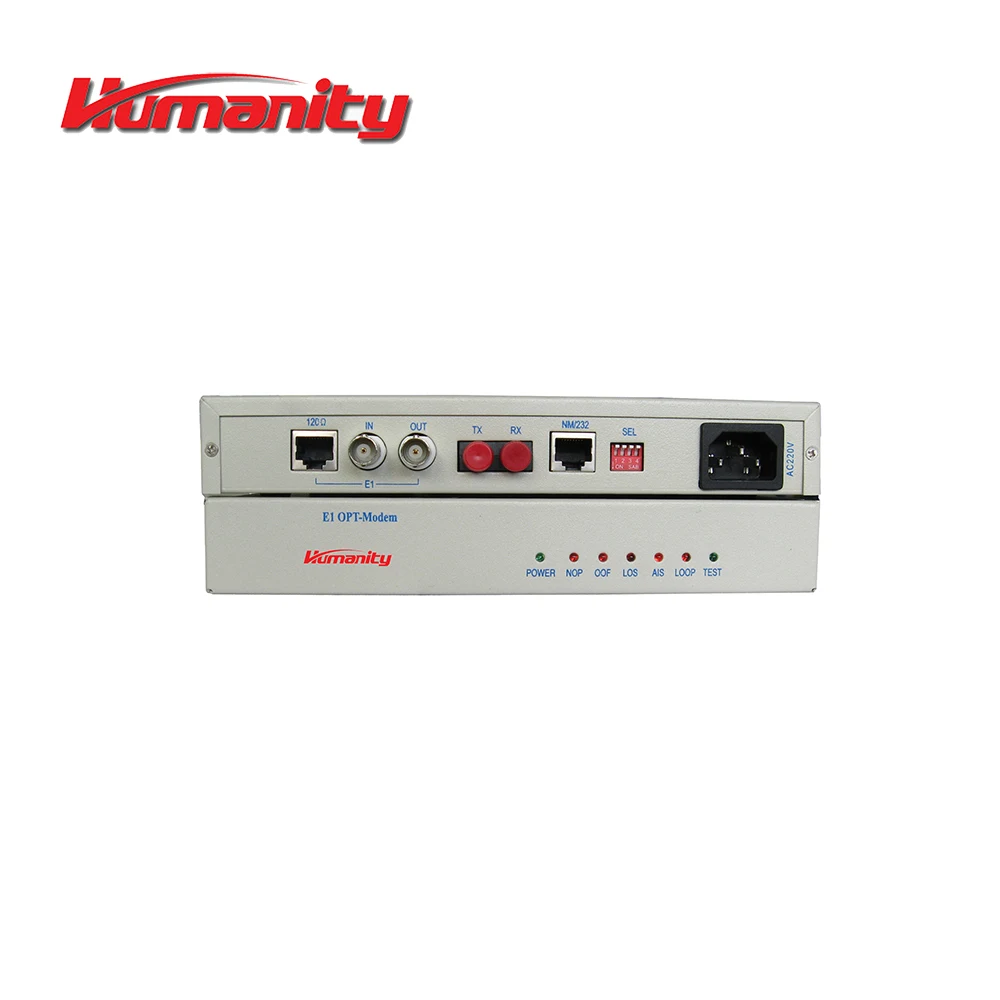

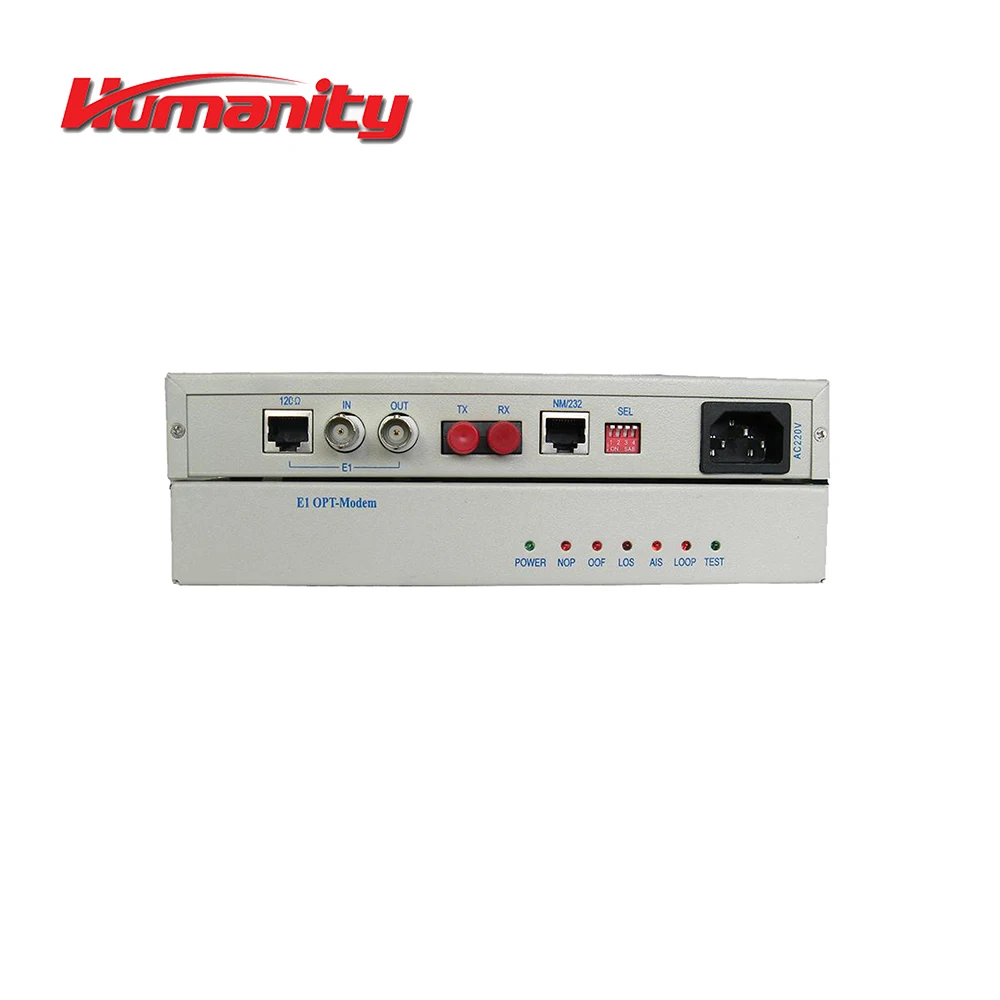

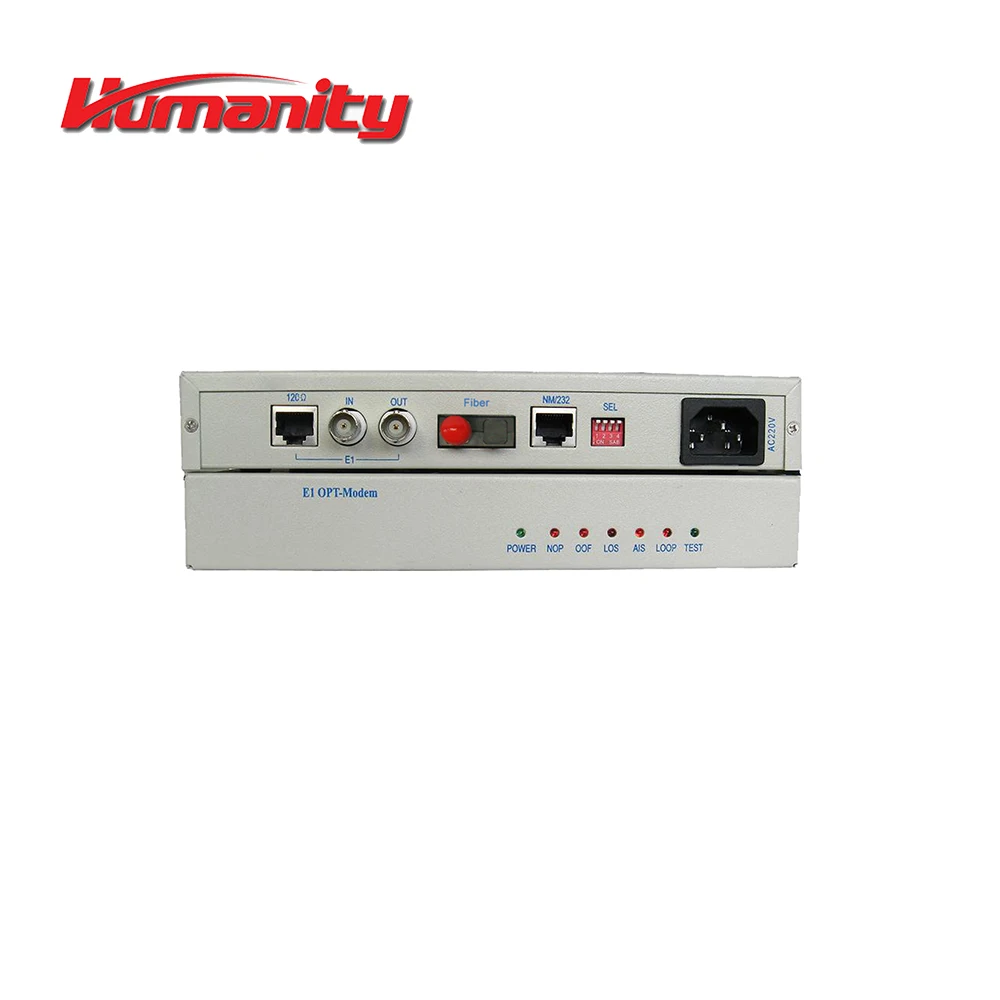

Humanity G.703 E1 Fiber Optical Modem

Product Overview

Description



Humanity G.703 E1 Fiber Optical Multiplexer



Product Description
      Humanity G.703 E1 Fiber Optical Multiplexer is used for E1 transmission over Fiber. It's used in the mobile phone net station. and FTTH etc.



Technology Characteristics
-> Realized one E1 transmitting over fiber in transparent mode
-> Allow the equipment to interoperate over V.35 fiber modem and ethenet fiber modem
-> Relaize one RS232 data transmitting in optical fiber line with 4800bps rate
-> Have a loop setting function and easy to open and test
-> Enable to manage networks and supervise equipment running and settings
-> Provide unbalanced 75Ω and balanced 120Ω E1 interfaces

Interface Parameters
E1 Interface:
   -> Support ITU-T G.703G.704
   -> HDB3 line coding, comply indication output of route warn
   -> Coding rate : 2048Kbps±50ppm
   -> 75Ω physics interface use BNC standard coaxial connector, 120Ω physics interface use RJ45 connector
Optical Interface:
   -> Rate : 4.096Mbps±50ppm
   -> Wavelength : 1310nm
   -> Power of optical signal output: 2~-11dBm
   -> Receipt sensitivity : better than 36dBm
   -> Interface : FC
   -> Interface mode :DCE
