Product Overview

Description

oil jacketed Kettle / natural gas LGP heating jacketed pot



we can produce the capacity FROM 100L TO 1000L.

 The jacketed kettle is also known as a steam pot, a cooking pot, and a sandwich steam pot. Usually consists of a pot and a foot. The pot body is a two-layer structure consisting of a spherical body inside and outside, and the middle layer is heated by steam. Available in fixed, tiltable, and agitated styles. The sandwich pot has the characteristics of large heating area, high thermal efficiency, uniform heating, short boiling time of liquid material, easy control of heating temperature, beautiful appearance, easy installation, convenient operation, safety and reliability. The sandwich pot is widely used in the processing of various foods, and can also be used in large restaurants or canteens, soups, stews, stews, porridge, etc. It is a good equipment for food processing to improve quality, shorten time and improve working conditions.



1. The mixer motor speed 8 RPM ,the motor with some  ball joint that move away for cleaning. As the blades.

2.Inner layer 4mm (stainless steel (304) 4mm)
3.Insulation layer 2mm(stainless steel (304) 2mm)
4.the base of kettle is 5mm(stainless steel (304) 5mm)

5.interlayer working pressure:0.3mp



 a 200L jacketed cooking kettle specification

Model			DG-200
kettle	diameter		Φ800mm
	Deepth		550mm
Capacity (L)			200
Connection pipes		steam	3/4"
		Cool water	3/4"
Motor power(kw)			1.5
Electric-heating power			18KW/H
Boiling time			~13 mis
heat transfer area			1.12 m2
Gas consumption			7CBM/H
Design temperature			180°C
MAX working temperature			151°C
Design pressure			0.095Mpa
MAX pressure			0.095
size	L(mm)		1100
	W(mm)		850
	H(mm)		1450

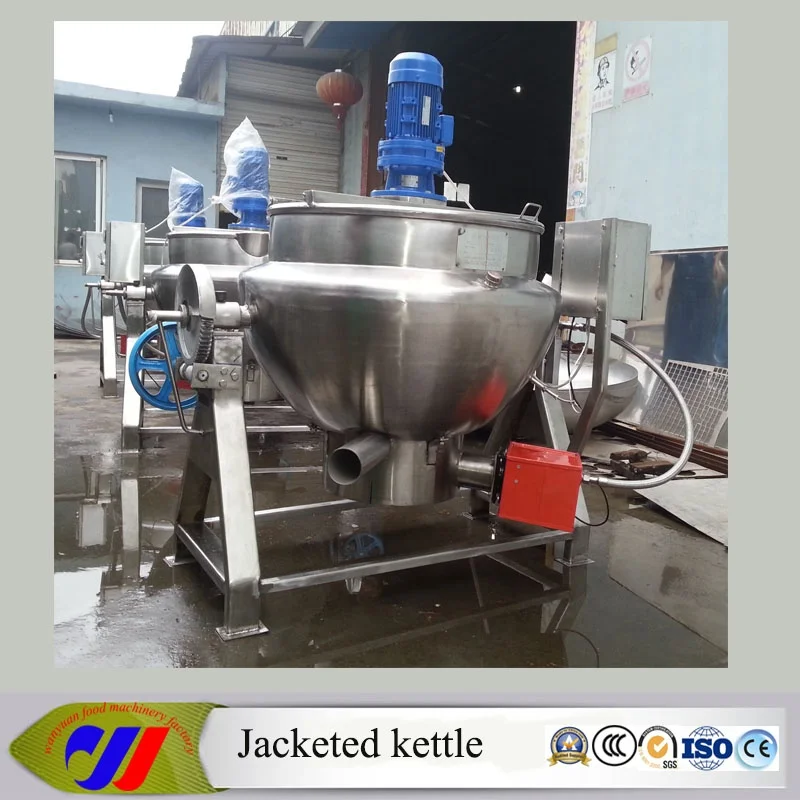

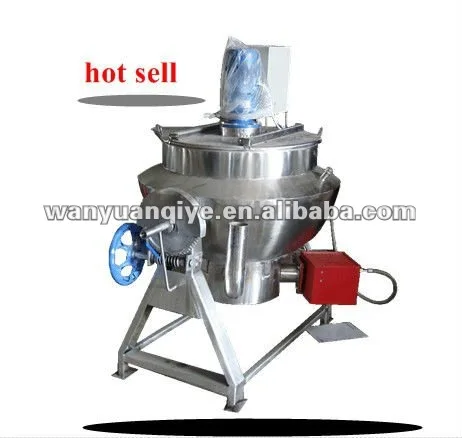

  oil jacketed Kettle / natural gas LGP heating jacketed pot picture



6.evaporative power:30kg/h
7.heating area :0.4m2,The max temperature is:270
8.Consumption of energy :33kg/h

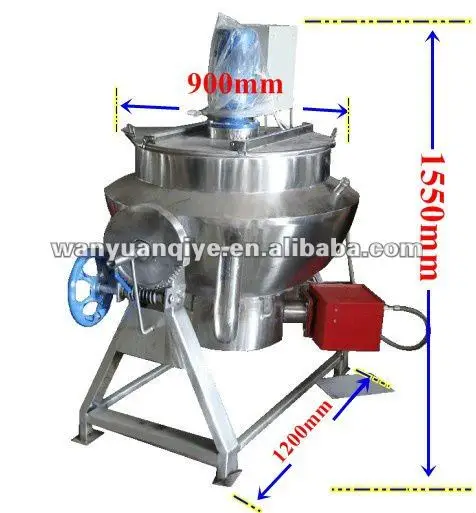

9. Dimension: 720*600*830mm,weight:170kg.
10. Heating ways: Tilting&Agitation Jacketed Kettle(cooker, kettle.weld tank)

the heating medium is heat transfer oil.
(burner is the highly-efficient &energy saving) we will finished installation with the kettle. Then ship to you.
