Automatic 4&6 corners folder gluer machine/automatic folding gluing machine for corrugated box
- Category: >>>
- Supplier: Yiwu Innovo Printing Machinery Co. Ltd.
Share on (257280059):
Product Overview
Description
Product Description
ZH-1150/1450FSC Automatic 4&6 corners folder gluer machine
Introduction:
1. This machine belongs to the full configuration folder gluer.
2. This machine can do straight line box, pre-folding box, crash lock bottom box and 4&6 corners box.
3. High pressure suction of paper feeding belt.
4. The whole machine is electrically shifted.
5. The whole machine is equipped with pneumatic lifting.
6. Pneumatic back pressure table, with waiting function, pneumatic paper kick count.
7. The pressing part has the function of snapping.
8.Cold spray glue system with 3 glue guns.
9. The electric of the whole machine adopts PLC computer touch screen control and wireless remote control.
Technical specification:
Line speed | 0-300m/min adjustable | ||
Paperboard thickness | 210-700gsm cardboard, E flute | ||
Box forming | Single side or both side gluing and pre-folding, crach lock bottom, 4&6 corner box | ||
Paperboard feeding | Continuous automatic | ||
Way of folding | Frist, second and fourth lines fold 180 degree, third line folds 135 degree | ||
Glue type | Cold glue | ||
Power | ZH-1150FSC 380V, 25KW |
| ZH-1150FSC 380V, 30KW |
Weight | 7500KG |
| 10000KG |
Machine Dimension | 16000*1900*1800mm |
| 17000*2100*1800mm |

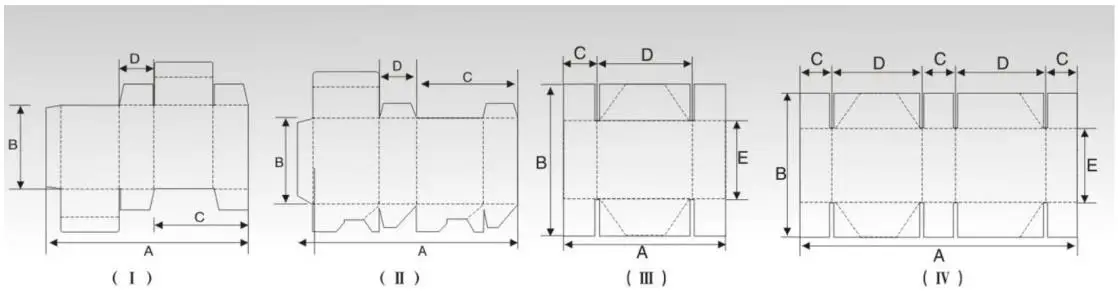

Parameters:
Unit: mm
Model | Box type | A | B | C min | D min |
ZH-1150FSC | Straight-line box(I) | 500-1150 | 80-1000 | 50 | 20 |
Pre-fold box(I) | 500-1150 | 80-1000 | 50 | 20 | |
Crash lock bottom box(II) | 500-1150 | 80-1000 | 80 | 50 | |
4 corner box(III) | 500-1050 | 160-1000 | 20 | 100 | |
6 corner box(IV) | 500-1050 | 160-1000 | 20 | 100 | |
ZH-1450FSC | Straight-line box(I) | 600-1450 | 80-1000 | 50 | 20 |
Pre-fold box(I) | 600-1450 | 80-1000 | 50 | 20 | |
Crash lock bottom box(II) | 600-1450 | 80-1000 | 80 | 50 | |
4 corner box(III) | 600-1350 | 160-1000 | 20 | 100 | |
6 corner box(IV) | 600-1350 | 160-1000 | 20 | 100 |
