VDLS 1300 3 Axis CNC VMC/ CNC Vertical Machining Center
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (257387507):
Product Overview
Description

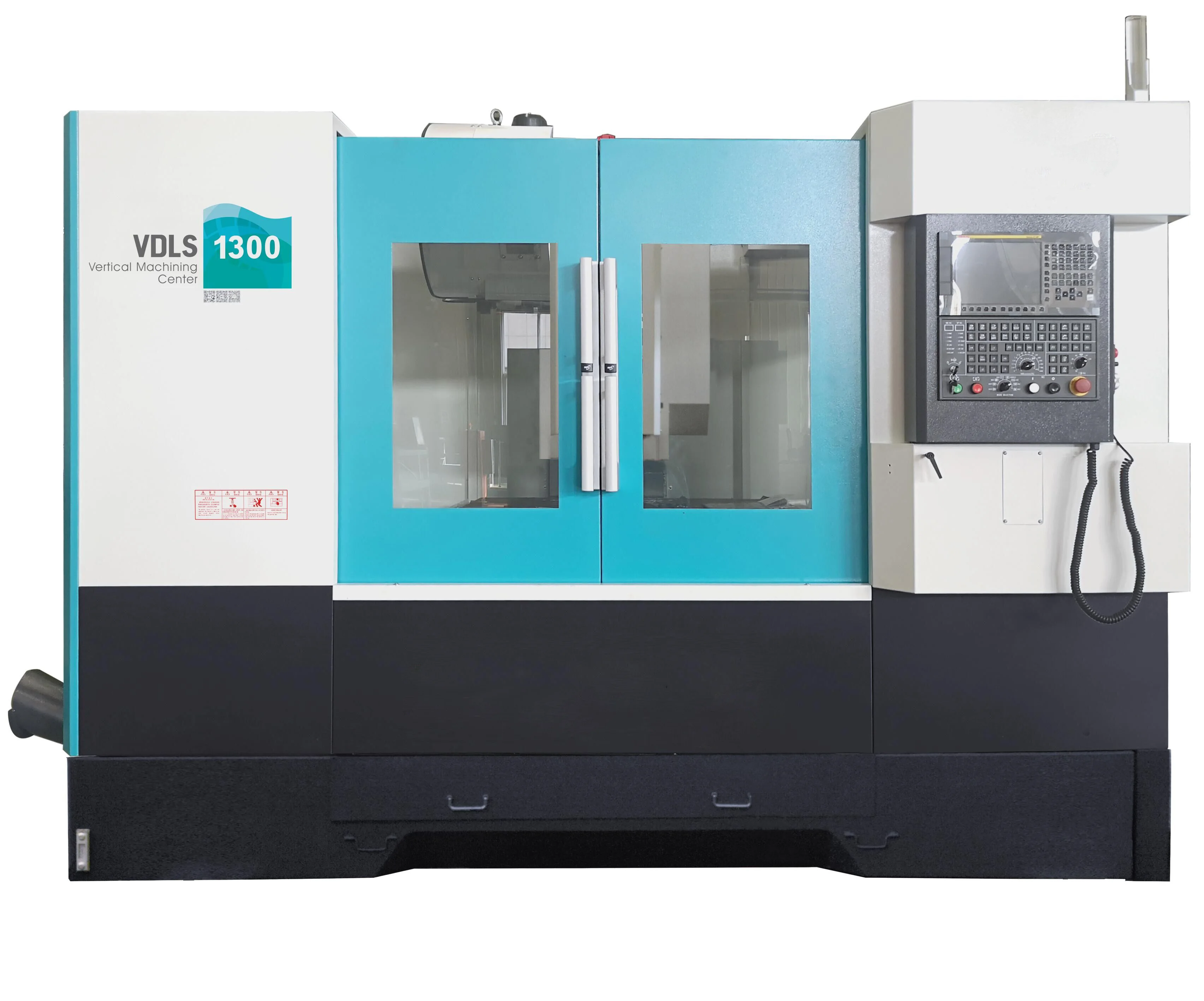

VDLS1300 3 Axis CNC VMC/CNC Vertical Machining Center
Main features
The 3 axis CNC vmc/cnc vertical machining center is widely used in various industries of military, aviation, car manufacturing and molding.
The machine has characteristics of high-Automation, reliability, convenience, easy operation, suitability and handsome appearance together with heavy duty.
The machine is equipped with automatic tool changing system (ATC), automatic lubricating system, automatic cooling system, full-enclosed guard, automatic chip conveyor, manual oil gun and Manual Pulse Generator (MPG).
Milling, boring, drilling, reaming and tapping can be performed in one set-up.
* As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice.
Main Technical Data
Specifications | Unit | Parameter |
Table(L x W) | mm | 1300 x 560 |
T-slot(Numbers x Width x Distance) (b / t slots) | mm | 5 x 18 x 100 |
Table load Max. | kg | 750 |
Distance from spindle center to column guide way surface | mm | 666 |
Distance from spindle nose end face to table upper surface | mm | 125~745 |
X/ Y / Z -axis travel | mm | 1290 x 560 x 620 |
Spindle drive type |
| Straight(Standard) |

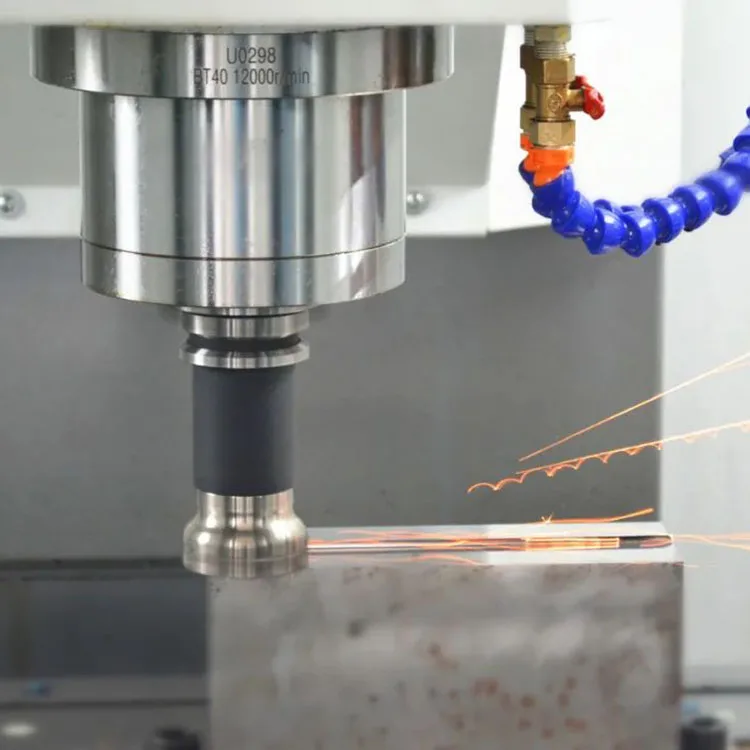

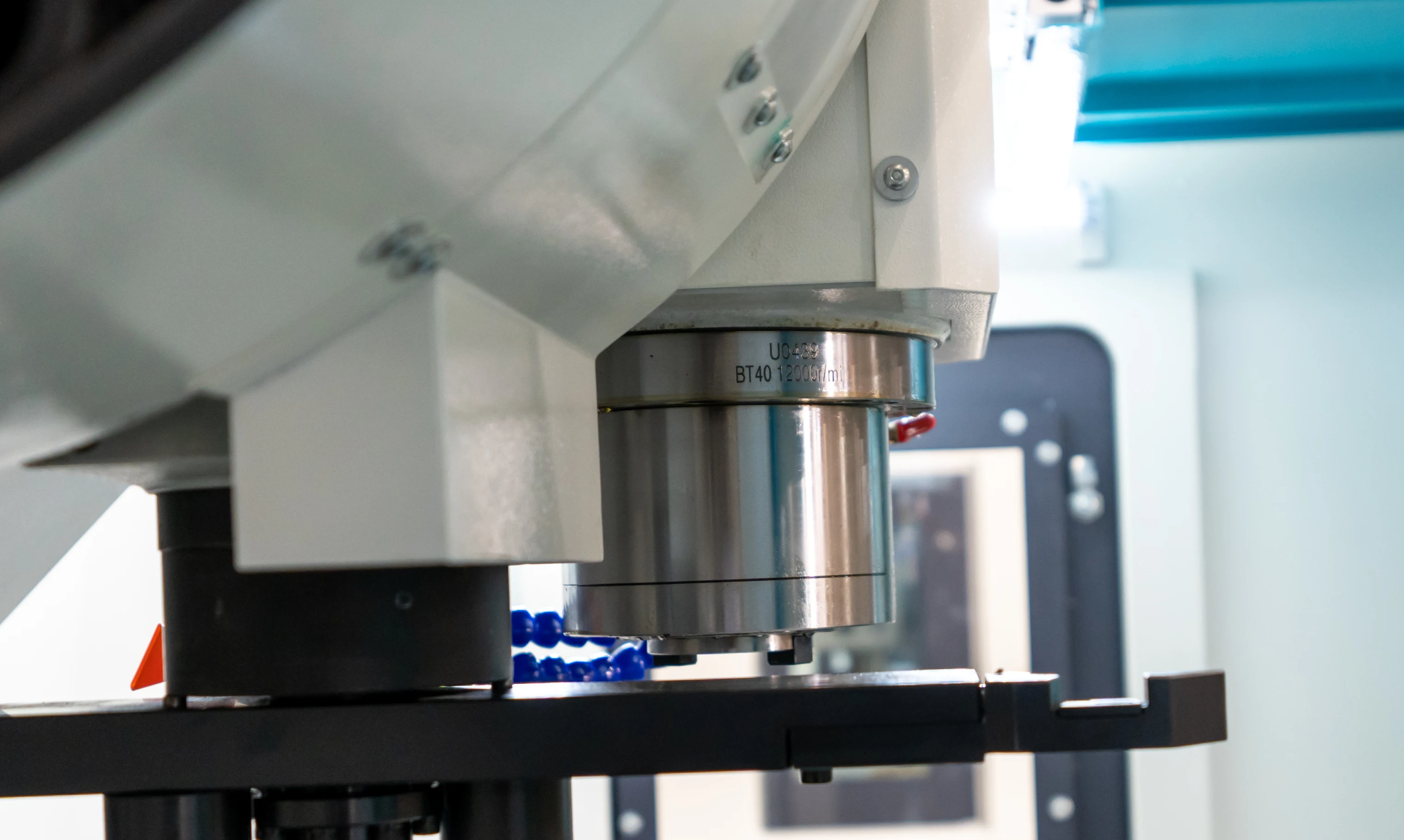

Spindle taper |
| No.40(7:24) |
Spindle power | kW | 11/15 |
Max. spindle speed | r/min | 12000 |

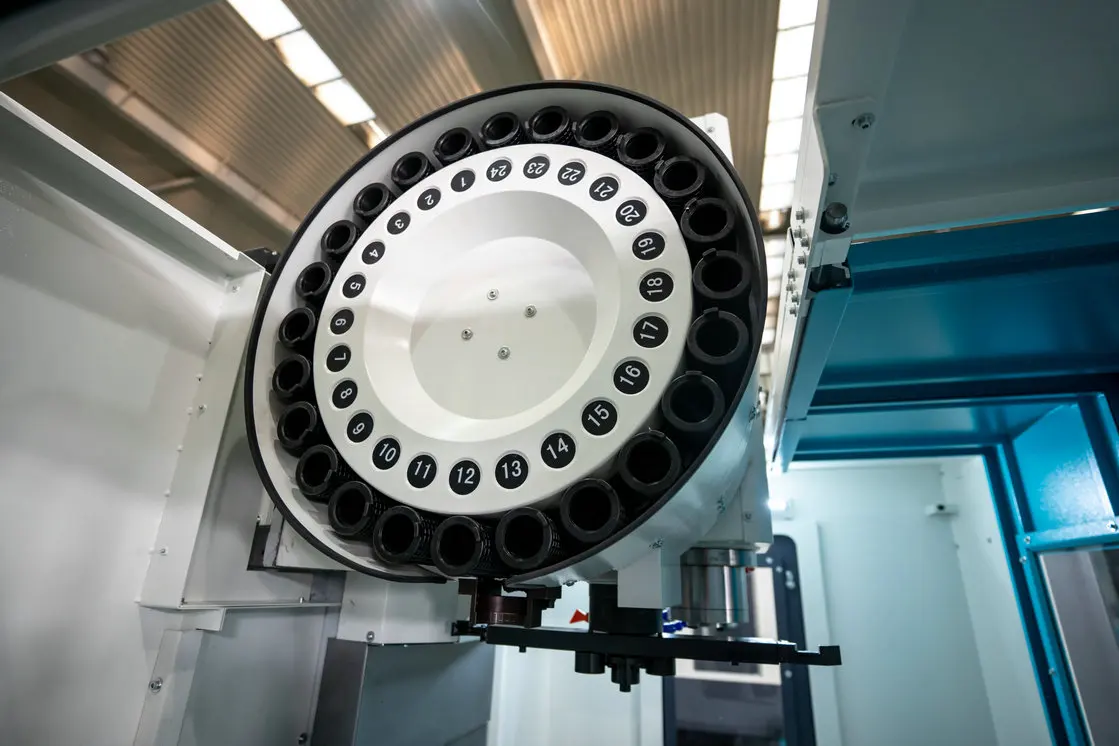

Automatic tool changer capacity/type |
| 24T/Arm |
Tool shank |
| BT40-45° |
Max. tool weight | kg | 8 |
Max. tool diameter | S | Φ78(w/o adjacent tools :Φ155) |
Max. tool length | mm | 300 |
Tool change time(T-T) |
| 2.7 (T24) |
X/Y/Z guide way type |
| Linear way |
Max. X/Y/Z cutting speed | m/min | 10 |
X/Y/Z rapid traverse speed | m/min | 36/36/30 |
X-axis guideway width | mm | 2-45 |
Y-axis guideway width | mm | 2-45 |
Z-axis guideway width | mm | 2-45 |
X/Y/Z-axis screw(diameter×guide distance) | mm | 40 x 12 / 40 x 12 / 40 x 10 |
X/Y/Z-axis positioning accuracy | mm | 0.0019/1300 x 560/0.008 |
X/Y/Z-axis repeatability | mm | 0.008/0.005/0.005 |
Air pressure requirement | MPa | 0.6~0.8 |
Power capacity | KVA | 35 |
Ambient temperature | ºC | 8~40 |
Relative Humidity |
| ≤80% |
Machine size | mm | 3100×2671x2820 |
Machine weight | kg | 7200 |
Packing |
| Wooden pallet or plastic cover |
Machine tool mainframe (Net weight 7200 kg ) | mm | 3100 x 2671 x 2820 |
Free Std Accessories
Optional Accessories
Pls send inquiry to me for optioanl accessories and other further information about such cnc vertical machining centers.
