Factory Directly Sell Transmission Line Fitting Vibration Damper

Product Overview

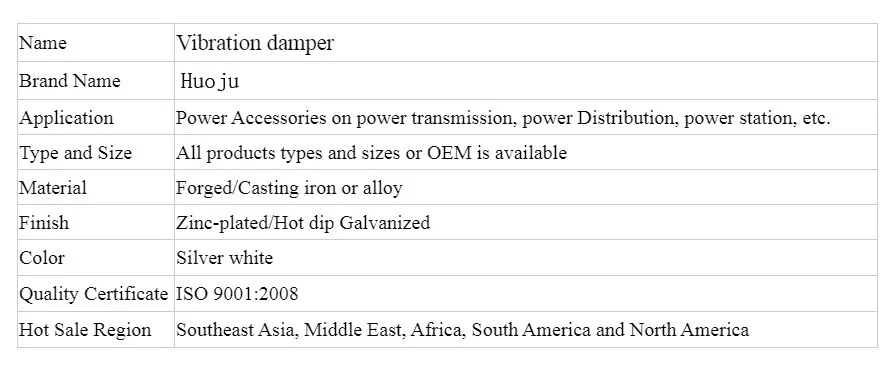

Description

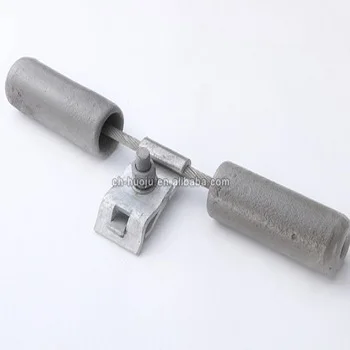

Factory Directly Sell Transmission Line Fitting Vibration Damper

FD-6 Damper is used for conductor ACSR 500-630.

The counter weights are made of gray cast iron and painted.

Other are steel,hot-dip galvanized.

Cat.No.	Conductor Section(mm2)		Dimensions(mm)				Scale of steel strand	Weight(kg)
	Steel Wire	ACSR	D	H	Φ	L
FD-1	-	35-50	40	40	9	300	19/1.8	1.5
FD-2	-	70-95	46	55	9	370	19/1.8	2.4
FD-3	-	120-150	56	65	11	450	19/2.2	4.5
FD-4	-	185-240	62	70	11	500	19/2.2	5.6
FD-5	-	300-400	67	70	13	550	19/2.6	7.2
FD-6	-	500-630	70	75	13	550	19/2.6	8.6
FG-35	35	-	42	50	9	300	19/1.8	1.8
FG-50	50	-	46	50	9	300	19/1.8	2.4
FG-70	70	-	56	60	11	400	19/2.2	4.2
FG 100	100	-	62	65	11	500	19/2.2	5.9
