Automatic Smart 5 gallon caps single stick label sealing machine

Product Overview

Description

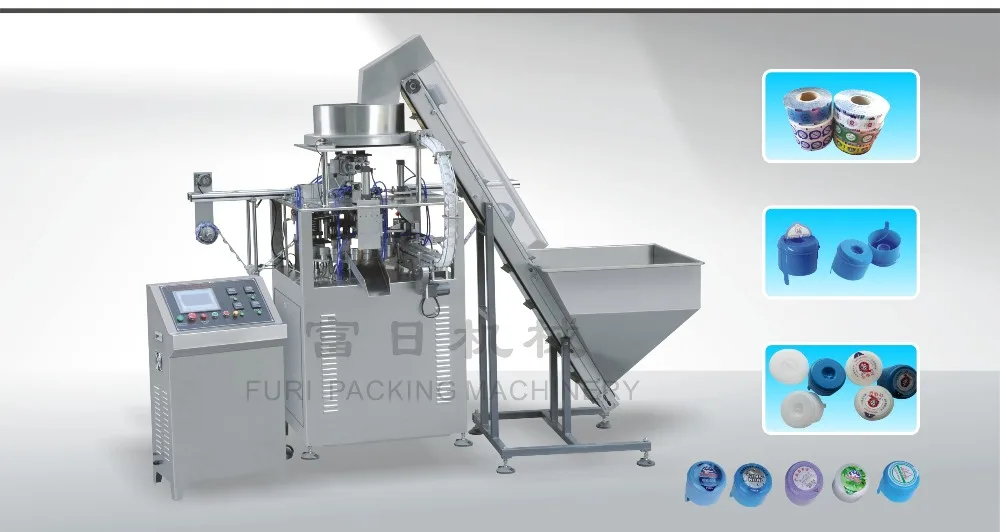

FRTB-402C Fully Automatic 5 Gallon Cap Labeling  Machine(Sealing Machine)

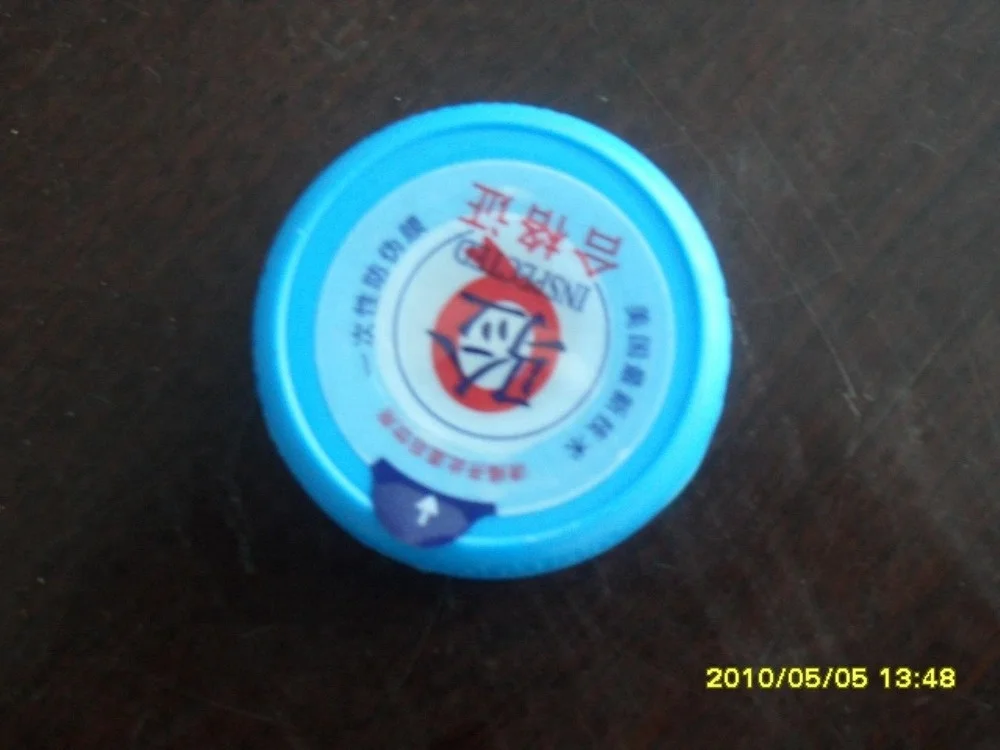

This machine is suitable for Labeling flim on the 5 gallon cap and other bottle cap.





1. Features:

1)      This machine is namely Fully Automatic Capper of Five-Gallon Barreled Water Bottle Cap. To comply with the international trends and meet the needs of market, we specially design this machine for factories with large capacity. It has advanced and unique techniques, which can help Smart Cap meets the Anti-fake, Sanitary, High-grade requirements.

2)      Procedures:  Automatic Sorting Cap, Cap Delivering, Vacuum Capping, Fliming and Feeding, Cutting Flim and Sealing, Second Sealing ,Vacuum Cap Removing, Quantity Counter.

3)      The machine has compact configuration, excellent functions. And it also has PLC and revolving encoder Controller, and the effect will be better with touch screen.

4)      The machine adopts the advanced vacuum systerm from Germany and pneumatic component from Janpa and Taiwan;

5)      The shield of machine is made of Stainless Steel, and it meets the santiary standard of GMP workshop.

6)      The machine has the function of non-fliming and non-calculating without cap.

2. Technical parameters



Speed	Power	Voltage	Frequency	Maximum Air Consumption	Size	Weight
2400pcs / h	1.2KW	380 V	50/60HZ	0.15CBM/ Min.	700×350×1200MM	550 KGS
