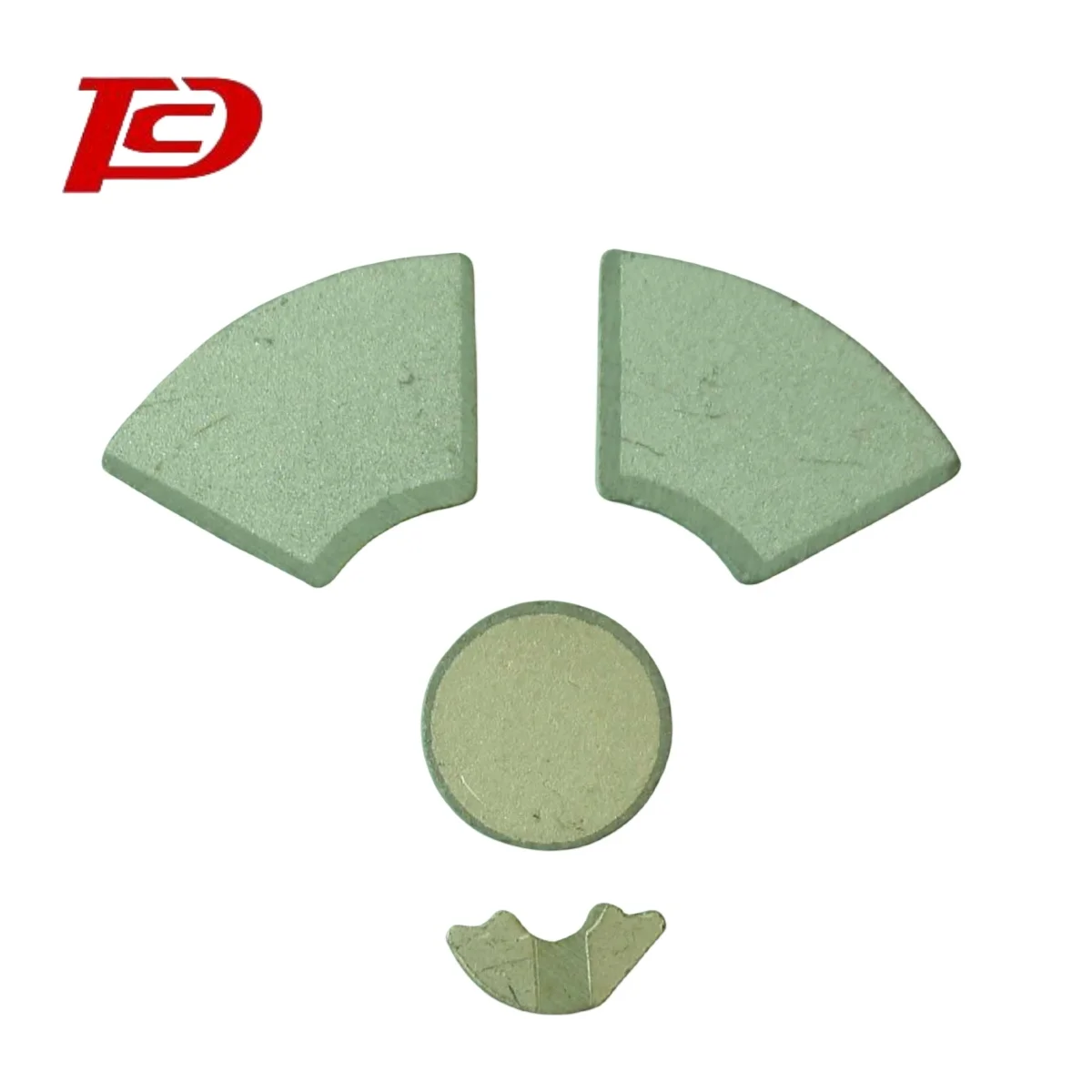

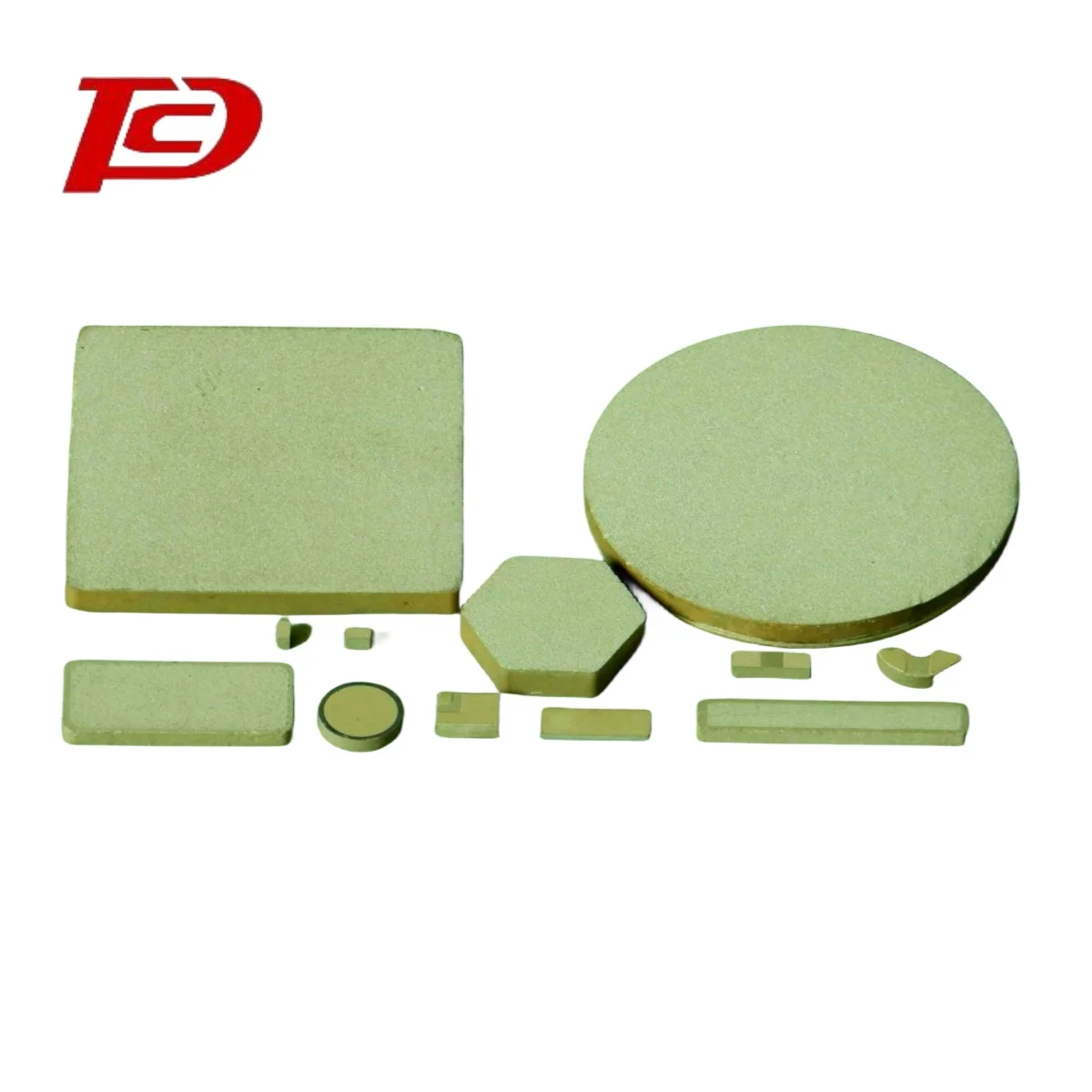

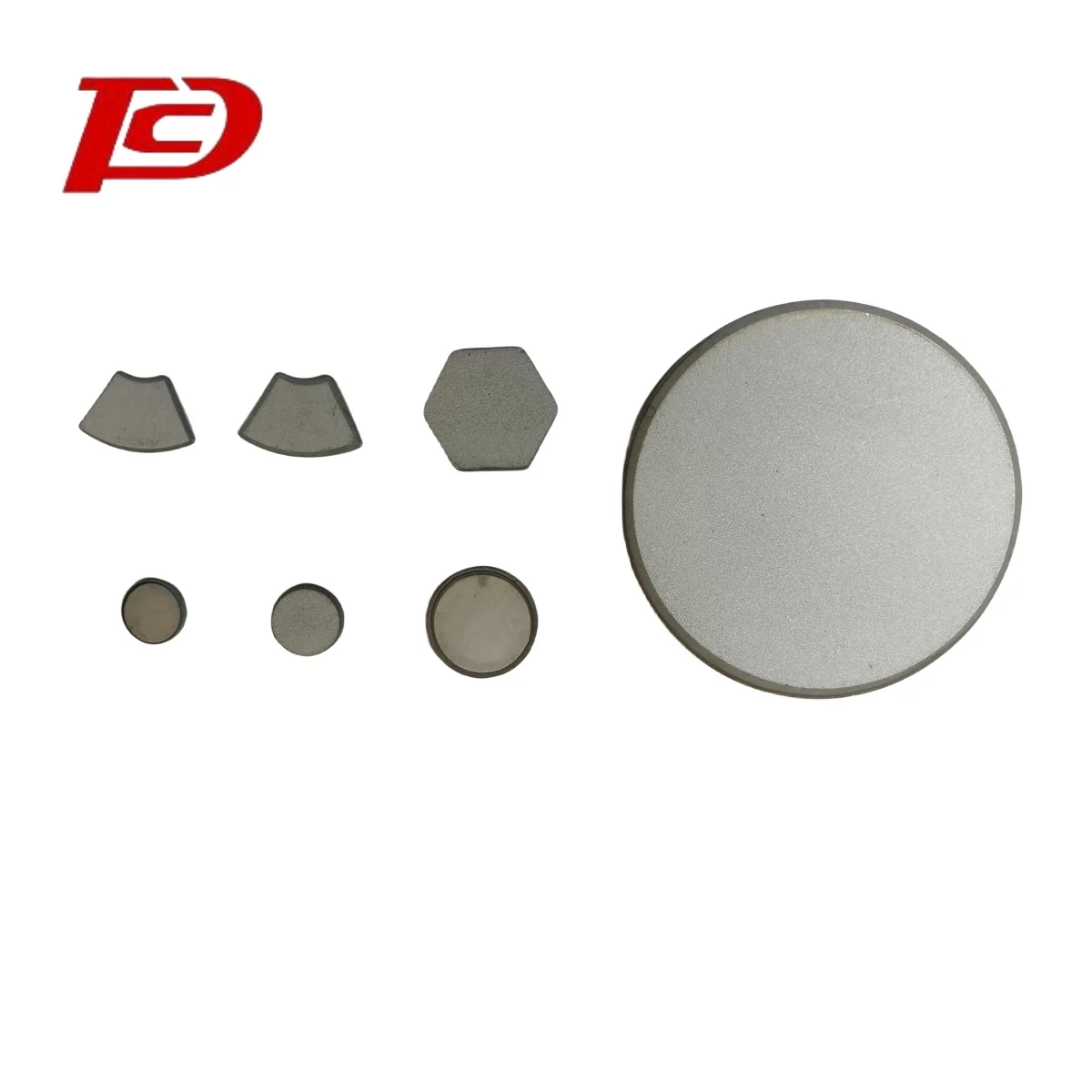

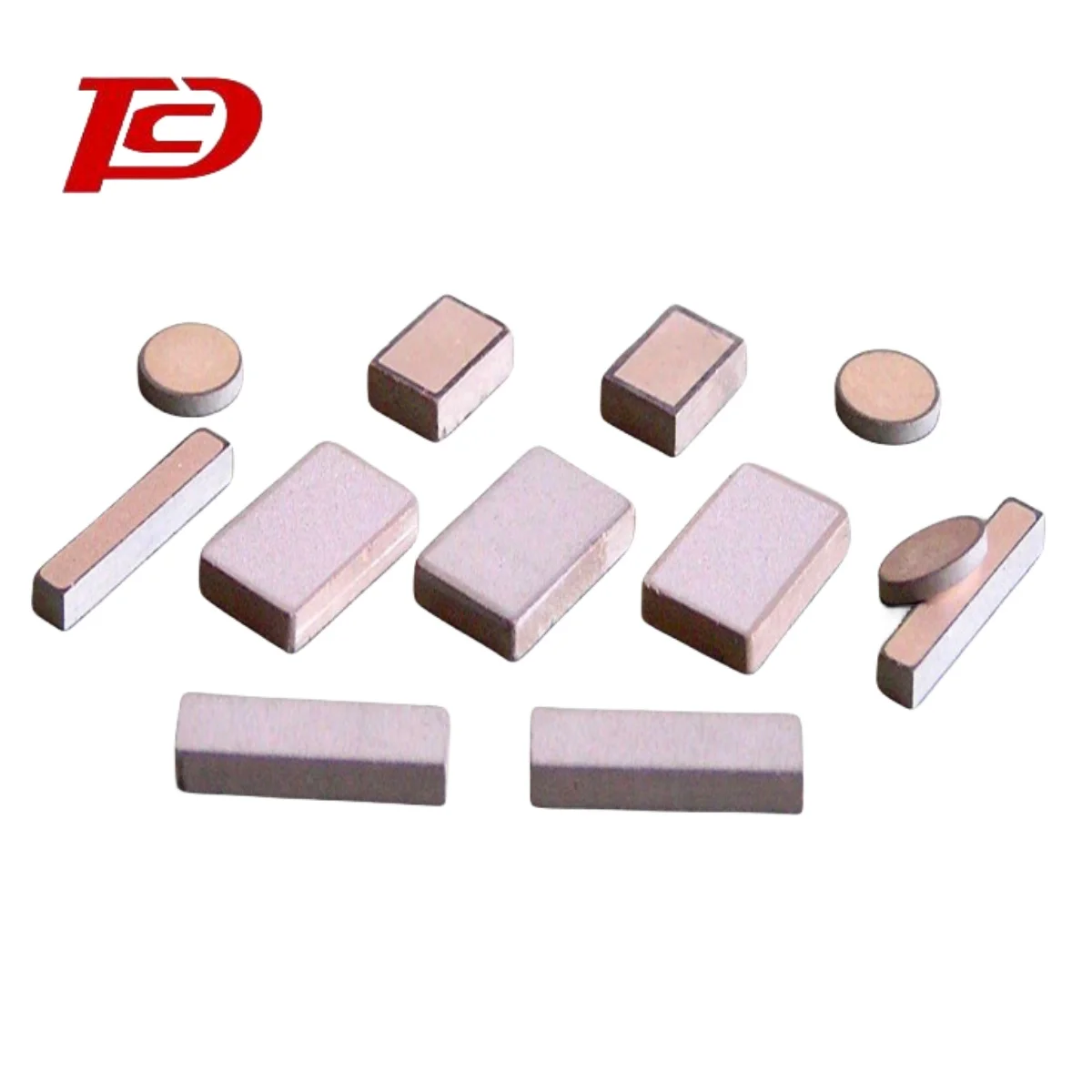

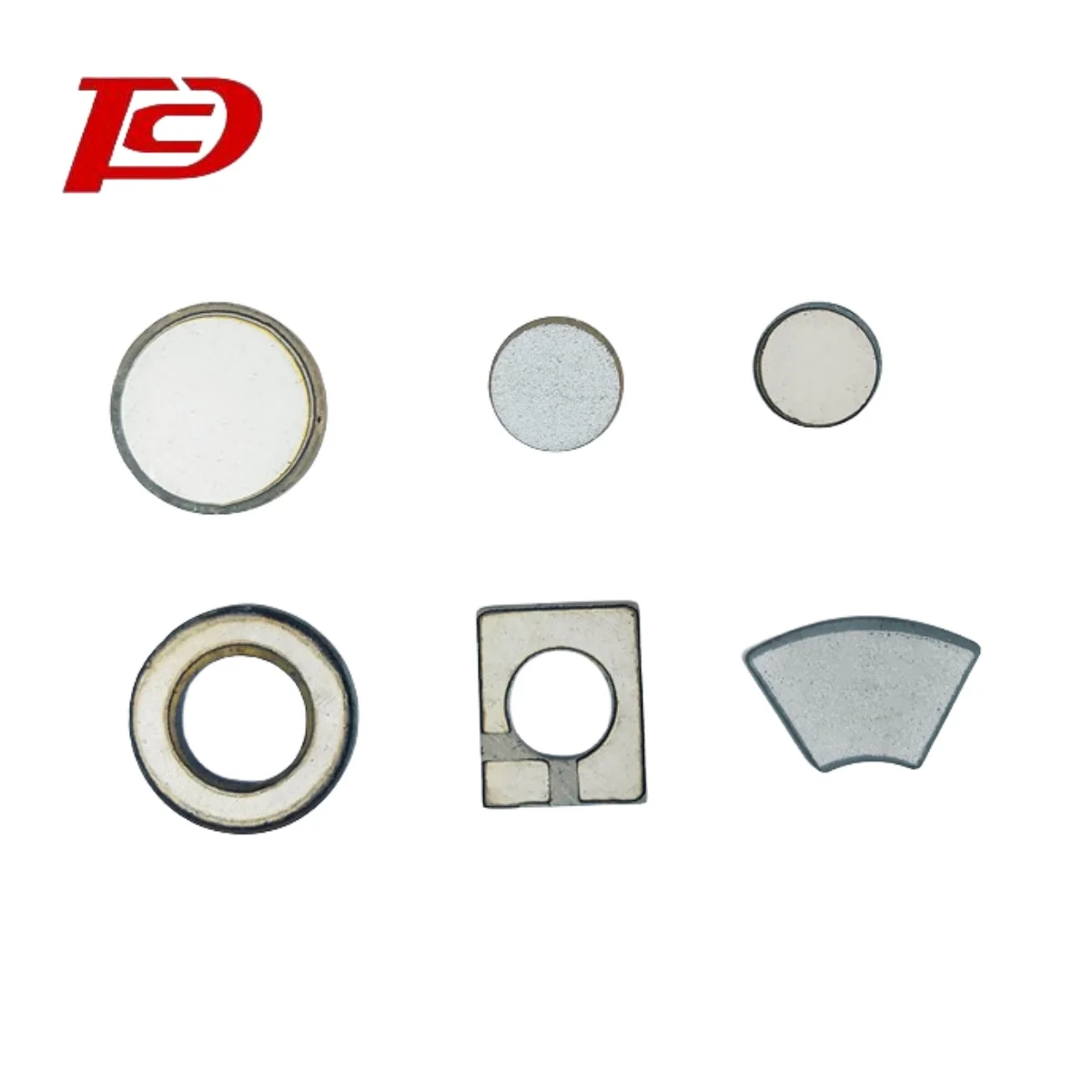

Tiancheng PTC ceramic heater high performance self controlling ceramic heater Alumina insulated heating plate

Product Overview

Description



Some appliances.

 wax melting heater,vapor generator,humidifier,water boiler,liquid warmer,coffee warmer,polymer press-coating heater,hot glue gun,chocolate extruder,shoe dryer,hand/foot warmer,massager,physical therapy heater.

1) Aluminum shell. PTC heater is very appropriate under 260 temperature. Main appliances: hair straightener, hair crimper, wax melting heater, humidifier, water boiler, liquid warmer, coffee warmer, polymer press-coating heater, hot glue gun, chocolate extruder. For details of liquid heater, read another page in this website.

2) Ceramic shell. It is very appropriate for low power amd 50~250, Main appliances: mosquito destroyer, aroma emanater, massager, hair straightener.

3) Hair straightener plate. There are several materials to be choosed, such as aluminum plate coated with ceramic paint, aluminum plate oxygenated, aluminum plate coated with teflon, aluminum plate electroplated, ceramic plate polished, ceramic plate glaze coated. Many color can be choosed. For details of hair straightener, read another page in this website.



Notice in appliance.

1) After switching on, the heating power is large, and then decrease, finally it become steady state. The steady state power depends on appliance conditions. Faster is the heat conduction, higher is the steady state power; higher is the surface temperature, higher is the steady state power.

2) The surface temperature of PTC can be controlled by itself, control circuit may be omitted in most appliances.

3) Our PTC products are high reliable, long aging, but if they are assembled improperly, the end product may be loose, power or temperature may be instable.

4) It operates in long life, and has excellent insulation on high voltage. The surface temperature increases (or decreases) about 8, when supplied voltage increases (or decreases) 2 time. In liquid heating appliance, when liquid was dried in the container, its no problem.

5) Parallel connection is necessary for two or more PTC connection.



Current products with ceramic shell.

Part number	Length /mm	Width /mm	Thickness /mm	Surface temperature /	High Pot /V	Rate voltage /V	Appliances
LG-265V-50T1	35	20	7	50	3750	100~240	Incubating
LG-265V-50T1	50	25	7	50	3750	100~240	Physical therapy
LG-265V-60T1	35	20	7	60	3750	100~240	Physical therapy
LG-265V-70T1	35	20	7	70	3750	100~240	Massager
LG-265V-90T1	12	8	6	90	3750	100~240	Self-control heater
LG-265V-130T1	35	20	10	130	3750	100~240	Mosquito Destroyer
LG-265V-200T1	90	28	10	200	3750	100~240	Hair straightener
LG-265V-250T1	12	8	6	250	3750	100~240	Self-control heater
LG-48V-50T1	50	25	7	50		6~24	Physical therapy
LG-48V-60T1	50	25	7	60		6~24	Physical therapy
LG-48V-70T1	50	25	7	70		6~24	Hand warmer
