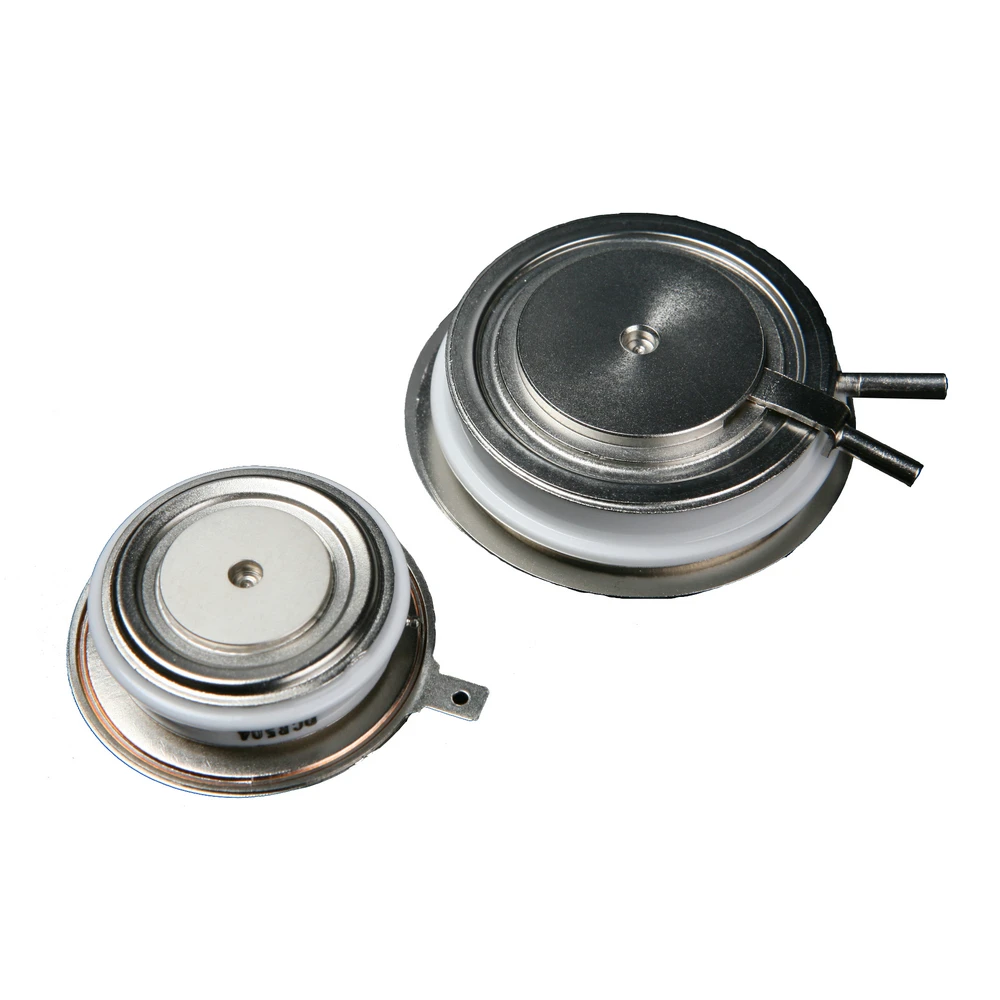

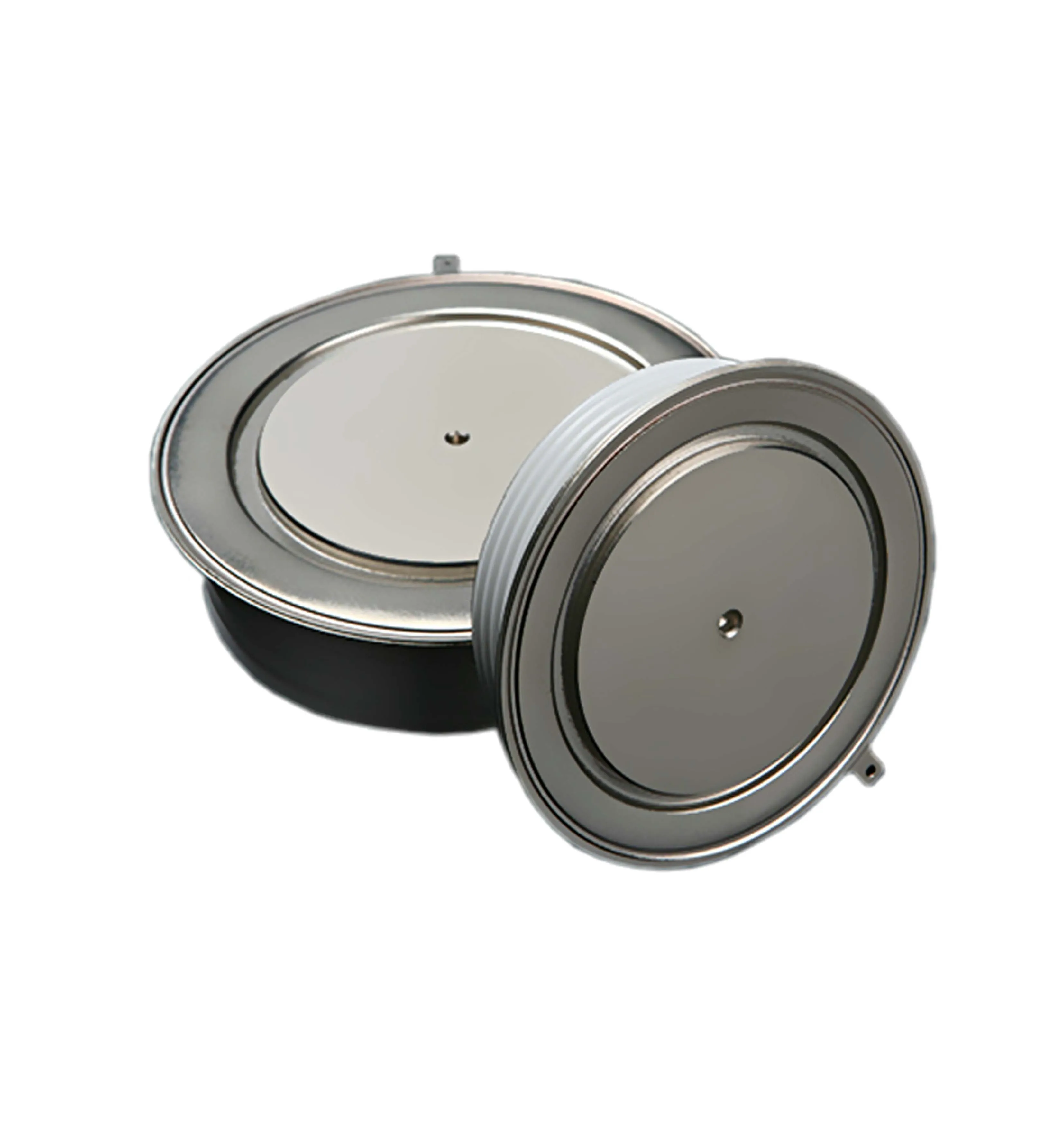

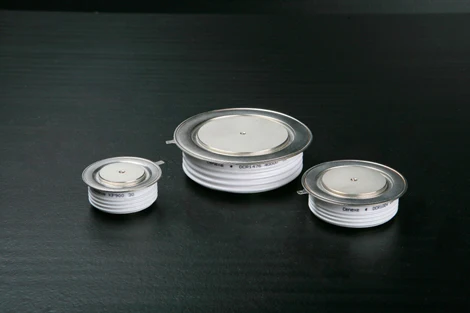

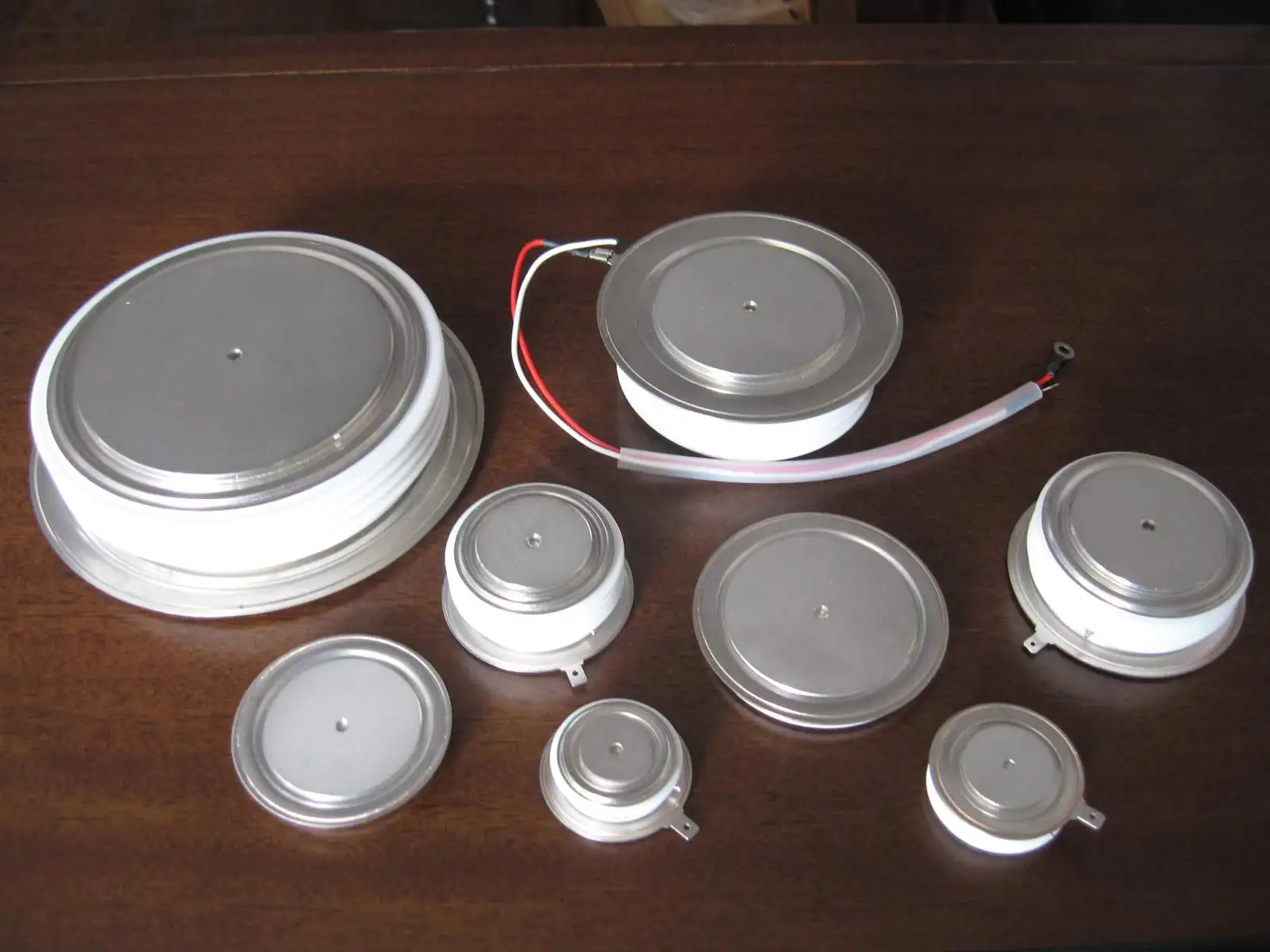

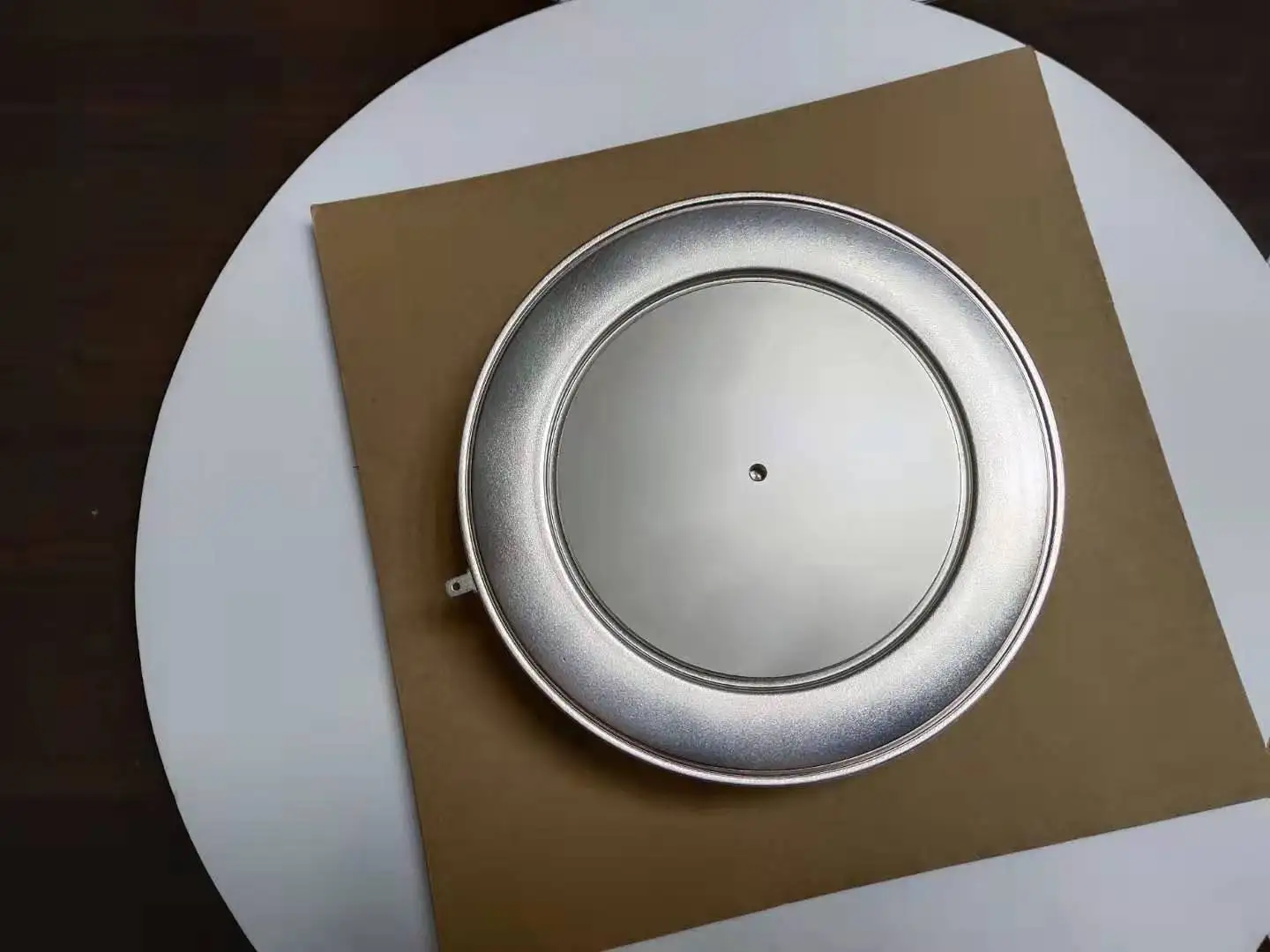

KP disc type phase control thyristor

KP disc type phase control thyristor

Category: >>>
Supplier: Tianjin Century Electronics Co. Ltd.

Price:$15.00

Quantity:

Product Overview

Description

Product Description

Product Description.png

Datasheet of KP series

Model	IT(AV) @TC=75℃ A	VDRM VRRM V	IDRM IRRM mA	ITSM @50HZ kA	VTM V		VGT V	IGT mA	dv/dt V/μs	Rthjc ℃/W	Tvj ℃	Outline
Model	IT(AV) @TC=75℃ A	VDRM VRRM V	IDRM IRRM mA	ITSM @50HZ kA	VTM V	@ITM A	VGT V	IGT mA	dv/dt V/μs	Rthjc ℃/W	Tvj ℃	Outline
KP200/35	200	3500	40	3.0	2.8	600	3.0	150	1000	0.080	125	T6
KP300/18	300	1800	30	4.5	2.0	900			500
KP500/06	500	600	20	6.0	1.4	1500			500
KP300/35	300	3500	40	4.5	2.8	900	3.0	200	1000	0.045	125	T7
KP400/26	400	2600	40	6.0	2.4	1200			1000
KP500/18	500	1800	30	7.5	2.0	1500			500
KP800/06	800	600	20	12.5	1.5	2000			500
KP200/60	200	6000	120	3.0	3.8	600	3.0	200	1000	0.035	125	T9
KP300/46	300	4600	100	4.5	3.2	900
KP400/35	400	3500	80	6.0	2.6	1200
KP500/26	500	2600	60	7.5	2.2	1500
KP800/18	800	1800	50	12.0	1.8	2000			500
KP1000/06	1000	600	40	21.0	1.5	3000			500
KP800/35	800	3500	120	12.0	2.8	2000	3.0	200	1000	0.031	125	T10
KP1000/18	1000	1800	100	18.0	2.0	3000			500
KP1200/06	1200	600	80	24.0	1.5	3000			500
KP500/60	500	6000	200	8.0	4.0	1500	3.0	200	1000	0.022	125	T11
KP800/46	800	4600	150	10.0	3.2	2000
KP1000/35	1000	3500	120	18.0	2.6	3000
KP1200/18	1200	1800	100	28.0	2.2	3000			500
KP1500/06	1500	600	80	36.0	1.5	6000			500
KP1200/35	1200	3500	200	20.0	2.8	3000	3.5	250	1000	0.018	125	T12
KP1500/26	1500	2600	150	27.0	2.4				1000
KP1800/18	1800	1800	120	33.0	2.0				500
KP2000/06	2000	600	100	40.0	1.4	6000			500
KP1000/60	1000	6000	250	15.0	4.2	3000	3.5	250	1000	0.015	125	T13
KP1200/46	1200	4600	200	20.0	3.0
KP1500/35	1500	3500	180	25.0	2.4
KP1800/26	1800	2600	150	30.0	2.2	6000
KP2000/18	2000	1800	120	36.0	1.8				500
KP2500/06	2500	600	100	50.0	1.4				500
KP1500/60	1500	6000	300	25.0	3.6	3000	4.0	300	1000	0.011	125	T14
KP1800/46	1800	4600	280	30.0	3.0	6000
KP2000/35	2000	3500	250	36.0	2.4
KP2500/26	2500	2600	200	45.0	2.0
KP3000/18	3000	1800	180	54	2.0	9000	4.0	300	500
KP3500/06	3500	600	150	65	1.4	9000	4.0	300	500
KP2000/60	2000	6000	350	30	3.8	6000	4.0	400	1000	0.008	125	T15
KP3000/32	3000	3200	300	45	2.4	9000
KP4000/20	4000	2000	250	60	2.0
KP5000/06	5000	600	200	90	1.5				500
KP2500/60	2500	6000	400	35	4.0	9000	4.0	400	1000	0.006	125	T16
KP4000/32	4000	3200	350	60	2.2
KP5000/20	5000	2000	300	80	1.8
KP6000/06	6000	600	250	100	1.4				500

Features

Distributed gate design

Chip diameter 4inch/5inch

Vrrm/Vdrm up to 4.5KV, ITav up to 4KA, tq from 70 us to 300 us

Short turn-off time and low switching losses

Low on-state voltage

Applications

Induction heating

Power supply

High frequency inveter, converter

Traction

UPS

Outline
