Hydraulic pressing tool for Cable lugs

Product Overview

Description

Hydraulic crimping tool HT-51

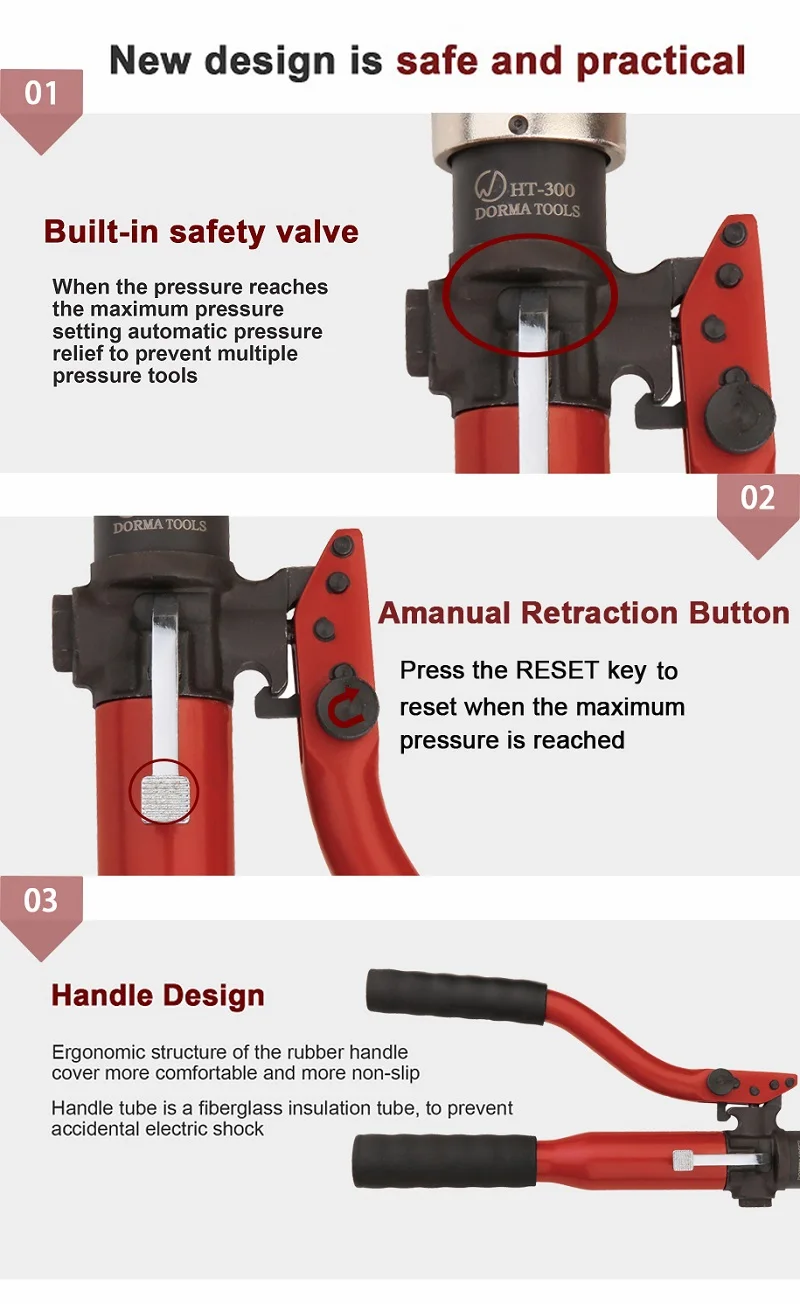

.New designed head much stronger .high tensive aluminum alloy handiness .

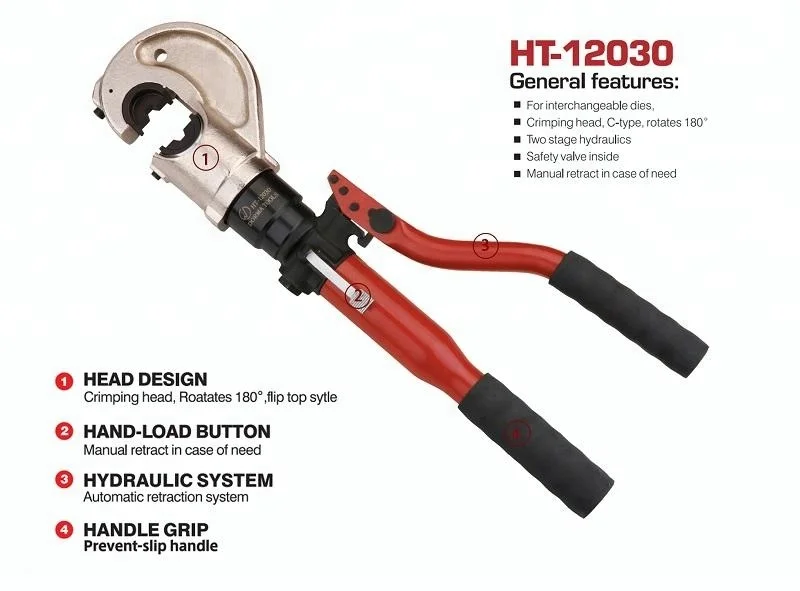

·Head C shaped head can ratated 180 degree with large jaw opening of 32 mm

·Application RangeSuitable for installing electric compression connectors (lugs and splices) on conductor up to.300mm²(600MCM)





Crimping Force:	120 KN
Rated operating pressure:	700kg/cm(10.000psi)
Crimping range:	16-300mm2
Crimping type:	Hexagon
Stroke:	32mm
Length:	545mm
Weight	6.5kg
Package:	Steel case
Standard accessories:	35.50.70.95.120.150.185.240.300mm2.
