Product Overview
Description
Jinan FAST CNC Horizontal Drilling Machine Model HZ900 For Drilling On Ring Workpieces
APPLICATION
The machine is used for drilling on ring workpieces.
FEATURES

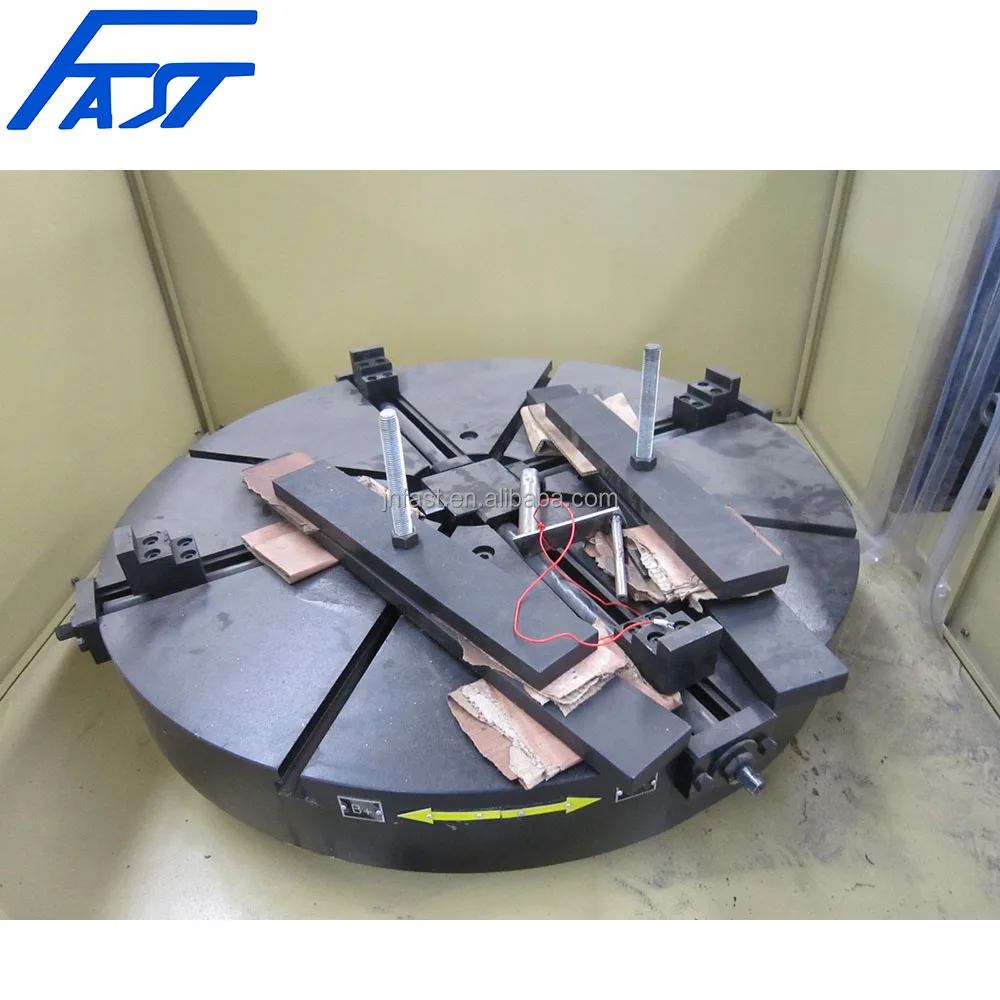

- This machine has central chucks on work table in horizon position. The chuck has four claws fixed manually.
- Servomotor.
- CNC controlling system.
- Cooling liquid automatic circulation.
- Only inputting the dimension of the workpiece. It can be used repeatedly.
TECHNICAL DATA
| Model | HZ900 |
| Inner Diameter: φ280~φ880 |
| Outer Diameter: φ300~φ900 | |
| Height: ≤400 | |
| Max. Drilling Diameter (mm) | φ30 |
| Morse Taper | Morse #3 |
| Infeeding Length(mm) | 320 |
| Rotation Speed of Spindle (rpm) | 1000 |
| Drilling Speed (mm/min) | 30~160 |
| Frequency Converter Stepless Speed Adjustable. | |
| Spindle Power (kW) | 3 |
| Infeeding Servo Motor Power (kW) | 1.5 |
| Rotation Servo Motor Power (kW) | 1.5 |
| Processing Position Accuracy | Circular Direction: ±30 |
- All of these models can be customized according to customer requirements.

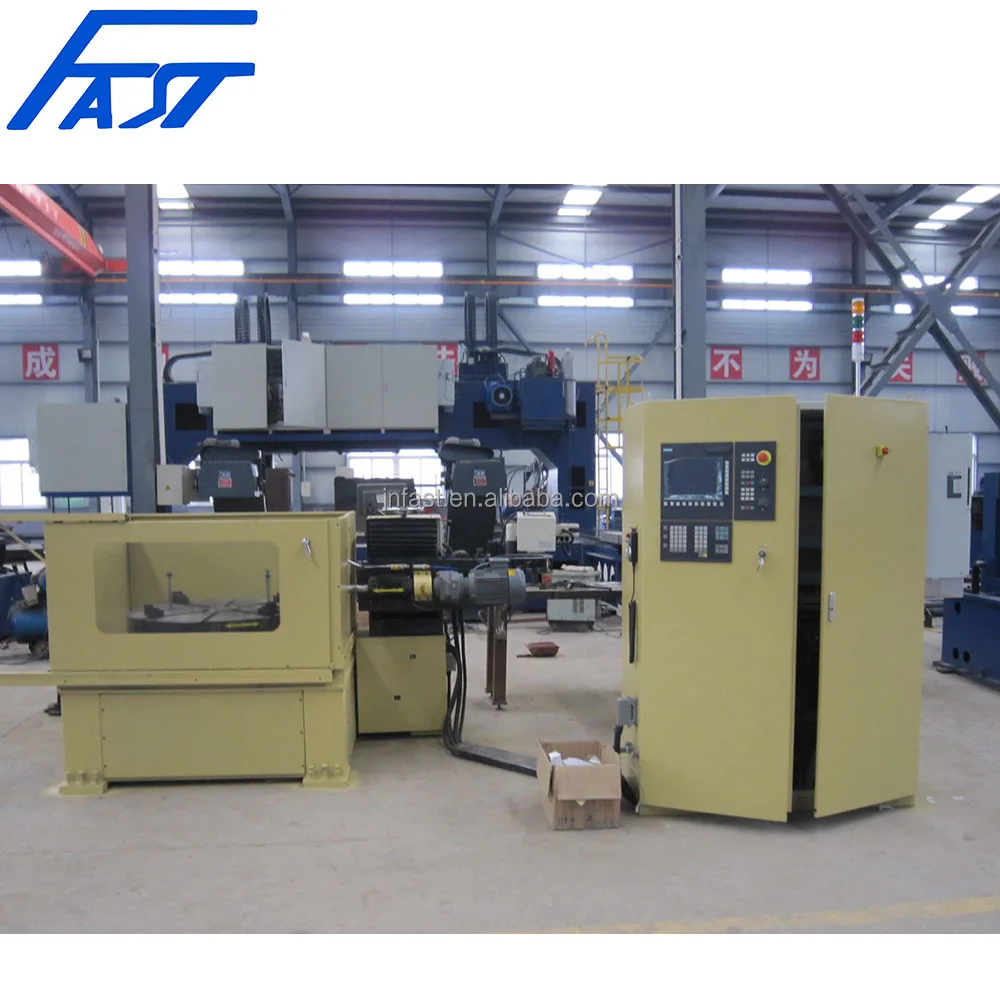

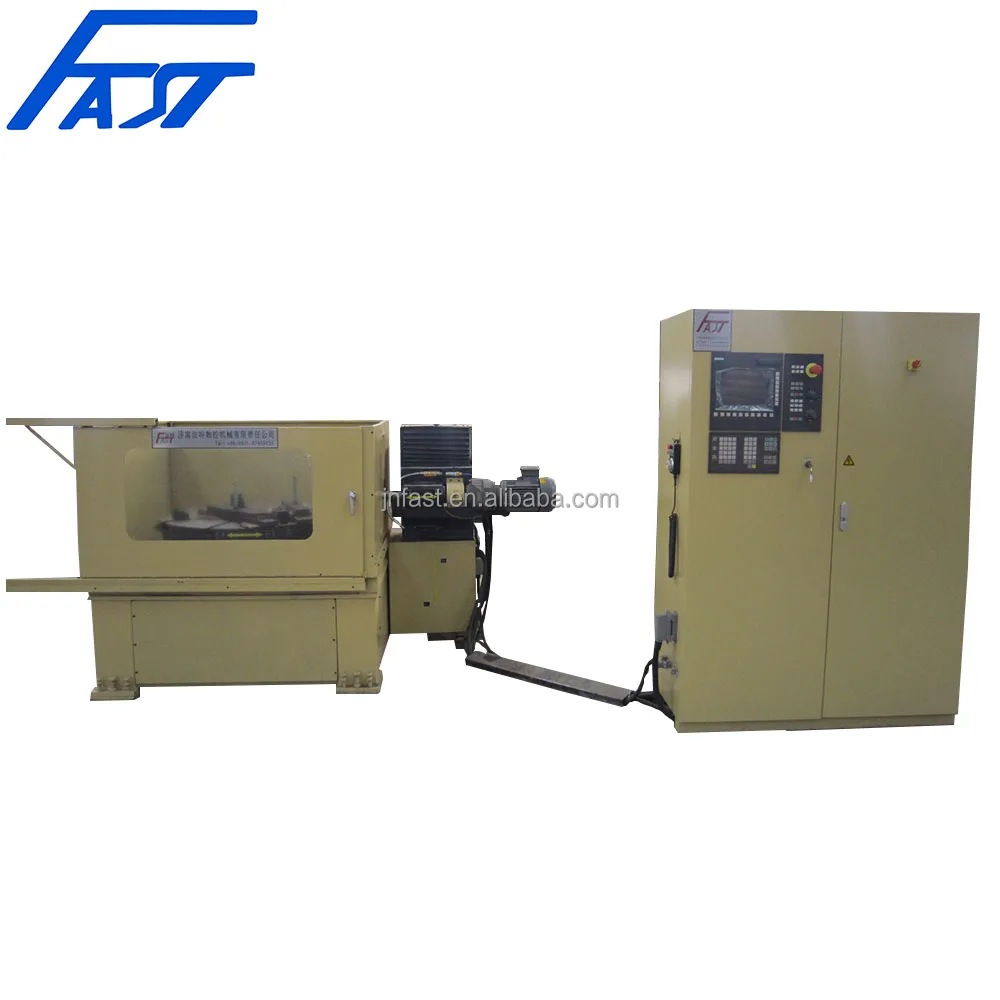

DETAIL IMAGES
