PS 126 PS126 Copper Wire Motor Cast Iron Self priming Peripheral Pump OEM

Product Overview

Description

PS-126 PS126 Copper Wire Motor Cast Iron Self-priming Peripheral Pump OEM

MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction
motor of suitable size, which is quiet, closed and externally ventilated,
suitable for continuous duty.
The thermal cutout replay (motor protector ) is incorporated in all single
phase motors.
Three phase motors require an adequate external motor protector, with
connections according to current standards.
INSULATION: class B (Class F)
PROTECTION: IP 44.
WARRANTY: 1 year

Product Power 0.45kw

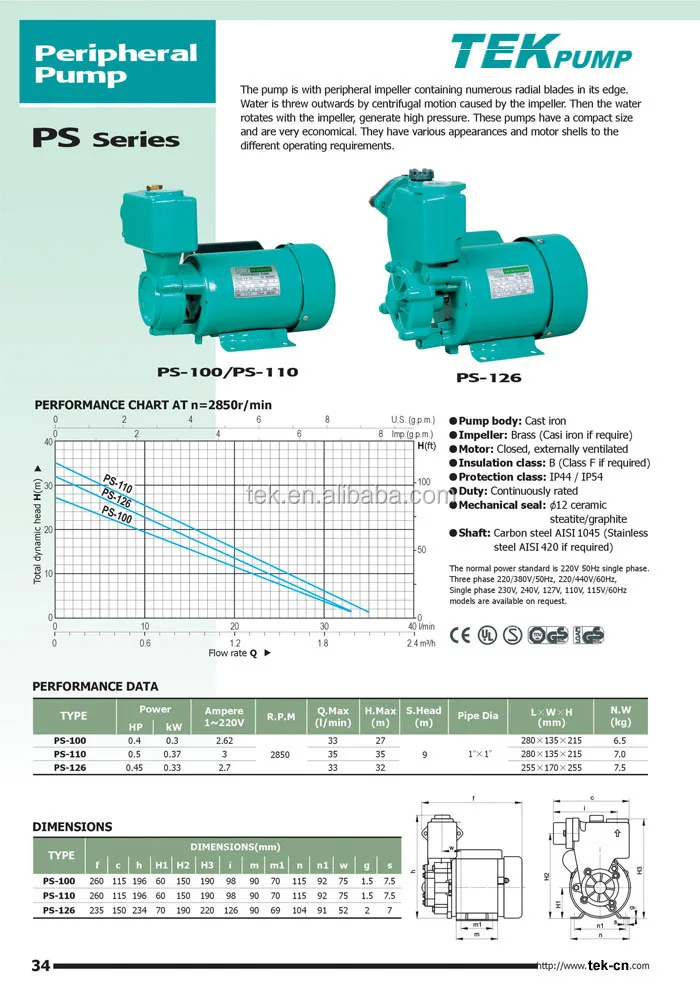

Model	Power		Q.Max	H.Max	S.Max	Pipe Dia	Packing Dim.	GW	Qty/20ft	Speed
	kw	hp	L/min	m	m	mm	mm	kg	pcs	(r.p.m)
PS-126	0.25	0.32	35	40	9	25x25	260x170x260	6.9	2650	2850
PS-130AUTO	0.25	0.32	35	40	9	25x25	310x230x290	6.9	1500	2850
