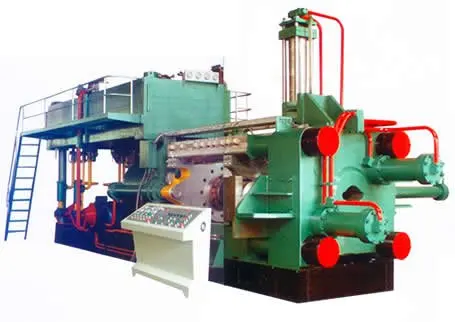

1350T Extrusion Press

Product Overview

Description

Extrusion press:



Extruding pressure		KN	13500
Pressure of operation system		Mpa	21
Return force		KN	570
Perforation stroke		mm	650
Extruding stroke		mm	1400
Dia of principal plunger piston		mm	860
Extruding speed		mm/s	0.3-13
lngot vessel dimensions		mm	Φ135-Φ165 x 680
Piercing force		KN	2000
Fasten strength		KN	850
Pattern strength		KN	1100
Shearing force		KN	300
Motor power		KW	55 x 3
Heating power		KW	30
Outer dimensions (L x W x H)		M	10x3.5x3.6
Height of discharging hole		mm	1290
Weight		KG	50000
