Pilot Tablet Coating Machine CE GMP approved /EU cGMP Standard

Product Overview

Description

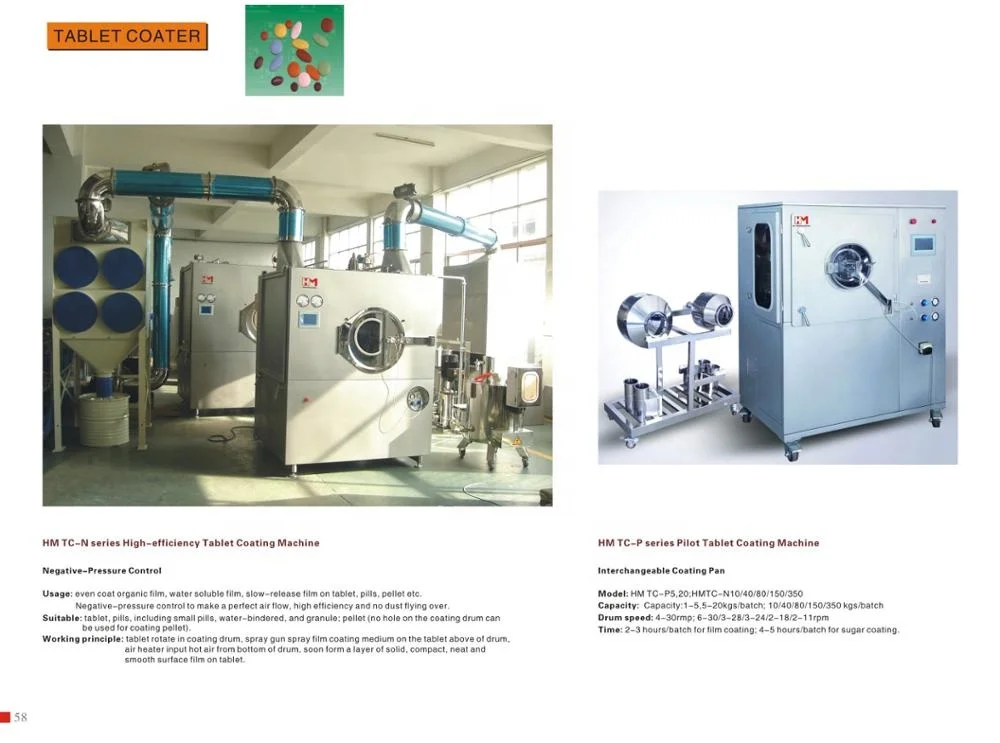

TABLET COATER

HM TC-N series High-efficiency Tablet Coating Machine

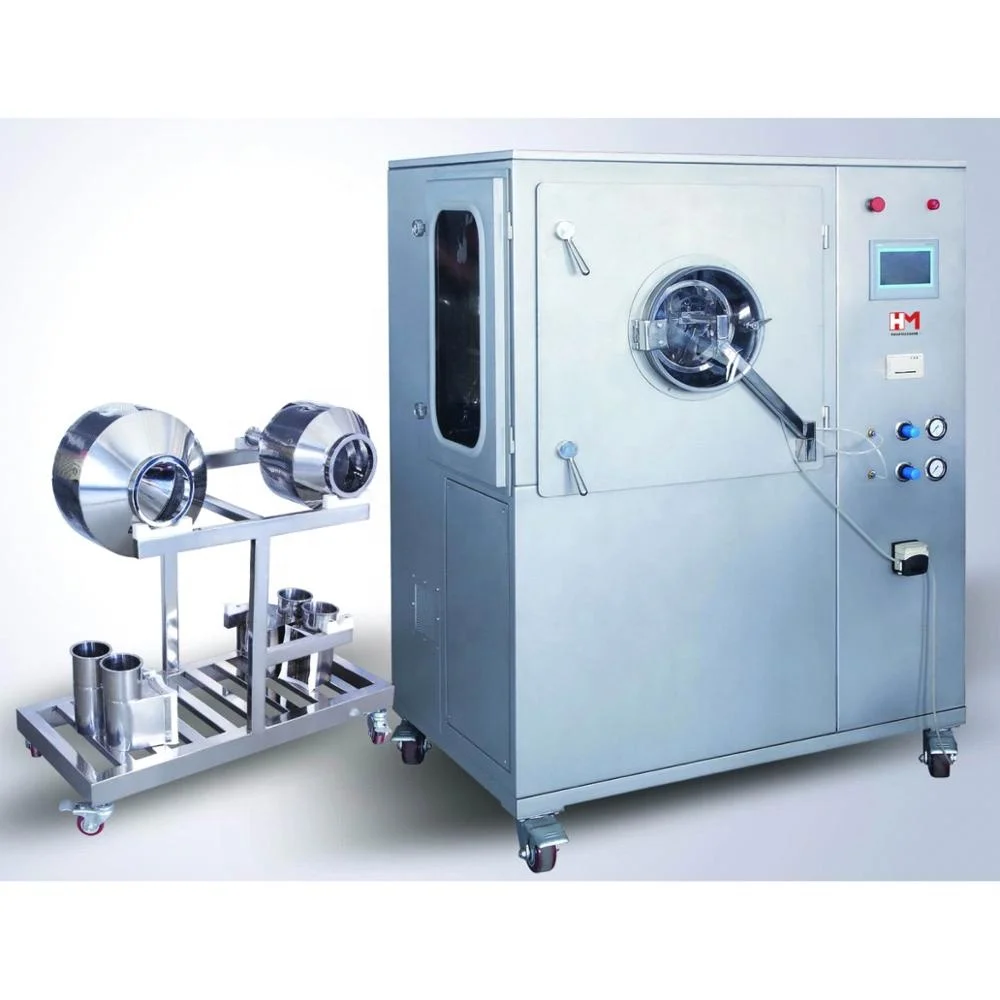

HM TC-P series Pilot Tablet Coating Machine

Negetive-Pressure Control

Usage: even coat organic film, water soluble film, slow-release film on tablet, pills, pellet etc.

Negative-pressure control to make a perfect air flow, high efficiency and no dust flying cover.

Suitable: table, pills, including small pills, water-bindered, and granule; pellet(no hole on the coating drum can be used for coating pellet).

Working principle: tablet rotate in coating drum, spray gun spray film coating medium on  the tablet above of drum, air heater input hot air from bottom of drum, soon form a layer of solid, compact, neat and smooth surface film on tablet.

Interchangeable coating pan

Model: HM TC-P 5,20;HM TC-N10/40/80/150/350

Capacity :1-5,5-20 kgs/batch; 10/40/80/150/350 kgs/batch

Drum speed: 4-40rmp; 6-30/3-228/3-24/2-18/2-11rpm

Time: 2-3 hours/batch for film coating; 4-5 hours/batch for sugar coating.
