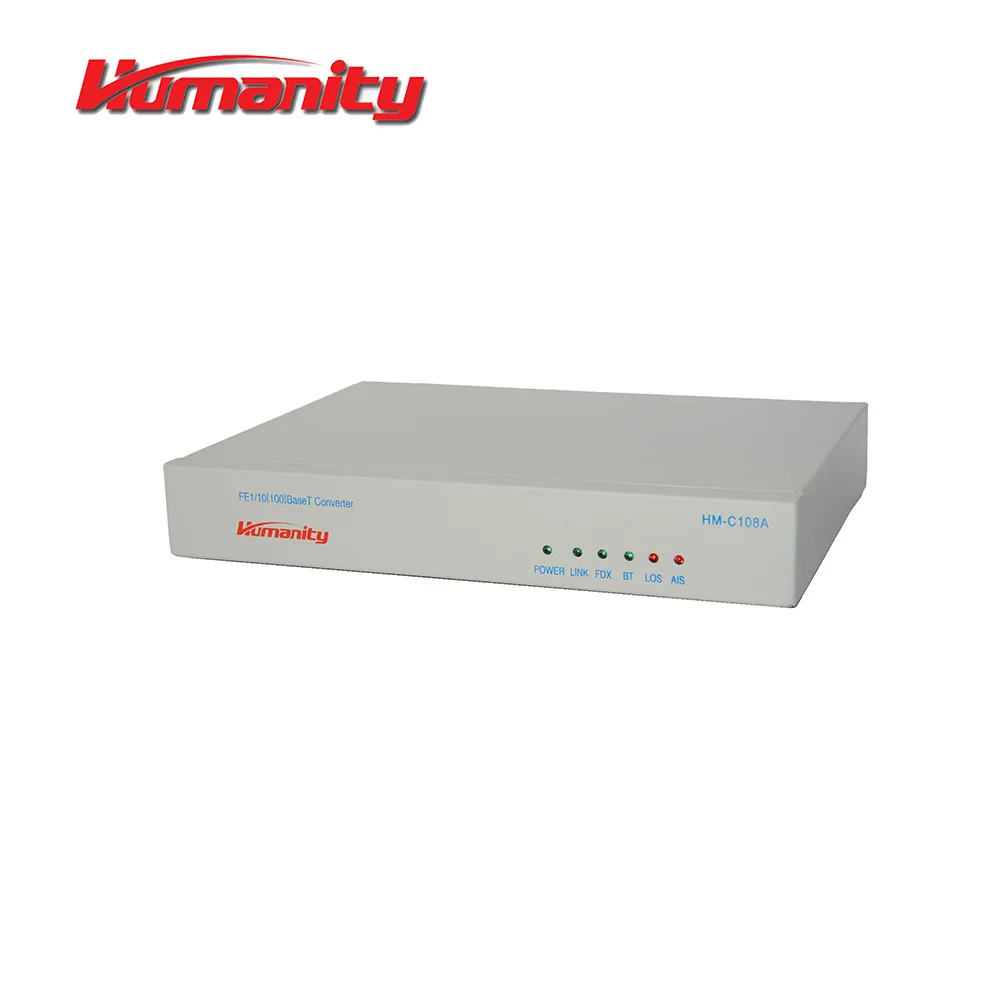

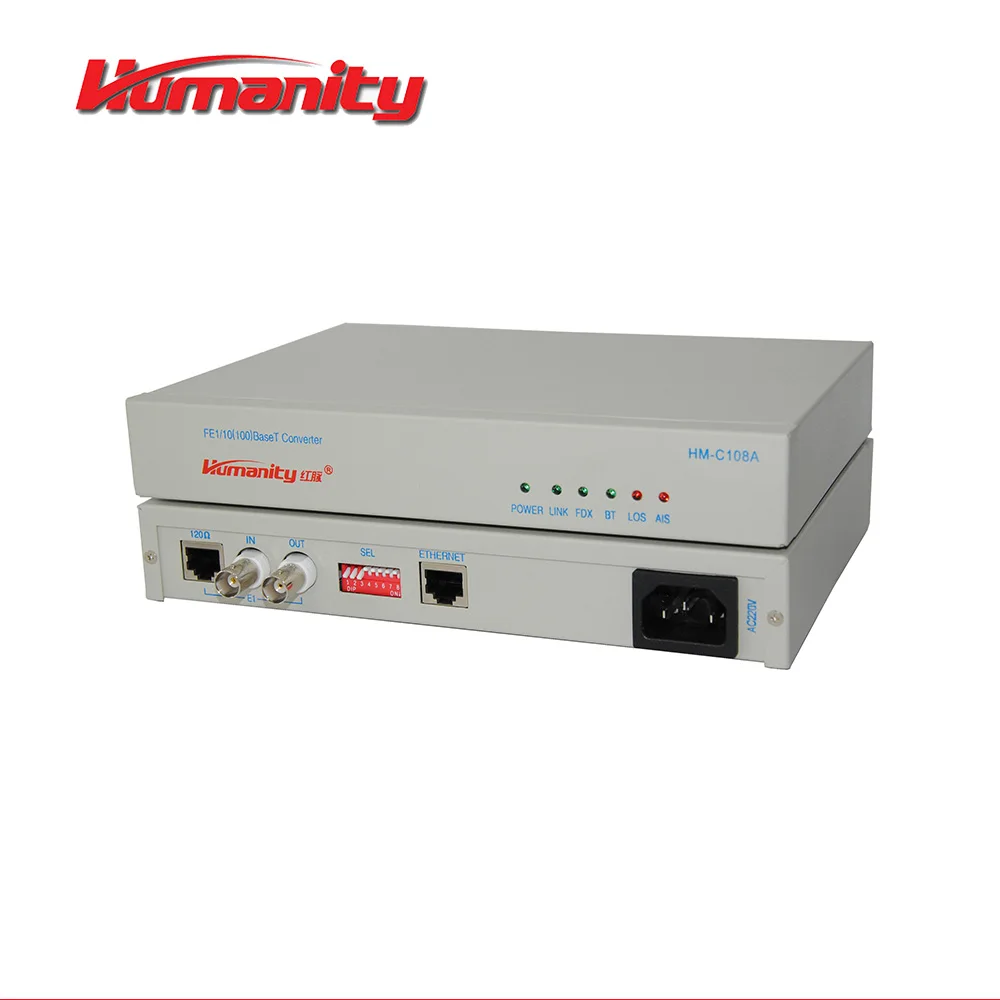

E1 to Ethernet protocol converter
- Category: >>>
- Supplier: Beijing Human Information Technology Co. Ltd.
Share on (262288667):
Product Overview
Description
Product Overview
E1 to Ethernet protocol converter realize Ethernet transmission over E1 with bandwidth of 64kbps to 2048kbps. It converts Ethernet frame structure to E1 frame structure, and recovers E1 frame structure to Ethernet frame structure at the other side, which enables Ethernet data to transmit in telecom network based on E1. Because it effectively used the spare bandwidth of telecom providers, it saves the networking cost and improves the efficiency and can be used immediately.
Technical Parameters
Interface Parameters:
E1 Port:
Comply with ITU-T G.703\\G.704
Code Pattern: HDB3 code
Rate: 2048Kbps±50ppm

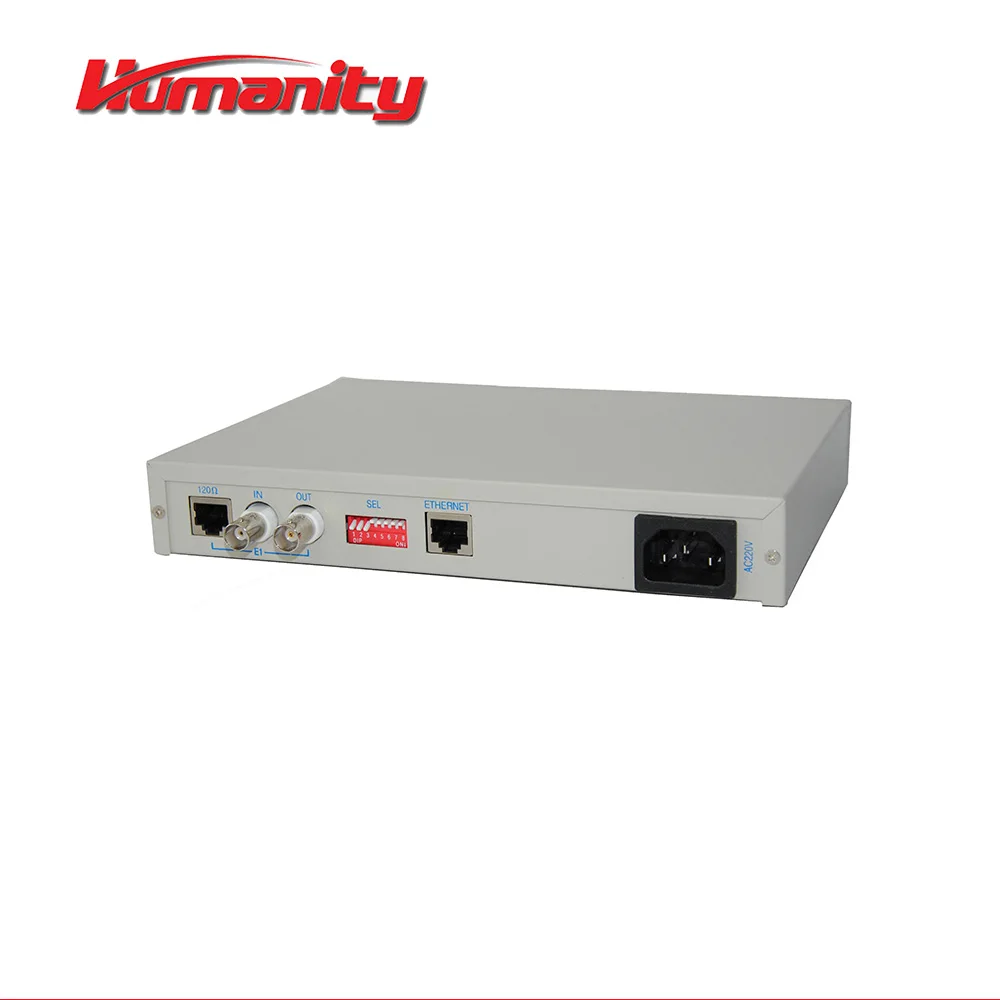

Interface: both supply unbalanced 75Ω BNC and balanced 120Ω RJ45
Ethernet Port:
Comply with IEEE 802.3(2000) standard
Rate: 10Mbps or 100Mbps
Interface:RJ45
Working Conditions:
Power supply: AC 220V±20%
Power Consumption: <5W
Environment Temperature:0-50oC
Other Characters:
Dimension: 220*175*35mm
Net weight: 1000g

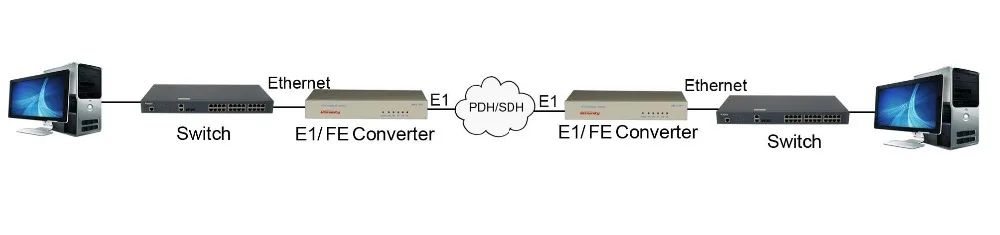

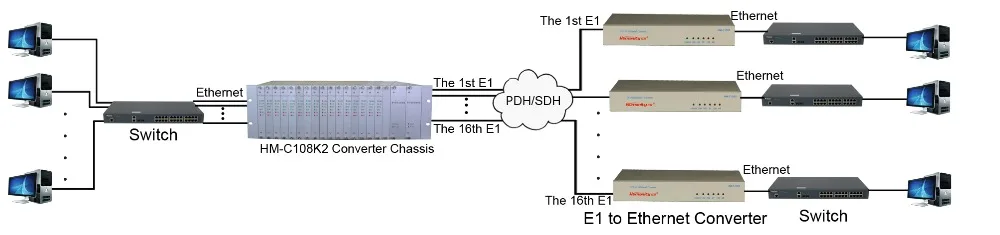

Application Diagram
Order Information
| Model | Description |
| HM-C108W | Mini E1 to Ethernet converter |
| HM-C106C | E1 to Ethernet converter |
| HM-C108A | FE1 to Ethernet converter |
| HM-C108A4 | FE1 to 4Ethernet converter |
| HM-C200B | 4E1 to 4Ethernet converter, RS232 or SNMP option |
| HM-C800B | 8E1 to 4Ethernet converter, RS232 or SNMP option |
| HM-C1600 | 16E1 to 4Ethernet converter, RS232 or SNMP option |
| HM-C108AC | E1 to Ethernet converter card |
HM-C200BC | 4E1 to 4Ethernet converter card |
| HM-C800BC | 8E1 to 4Ethernet converter card |
| HM-C108K2 | Chassis for E1 to Ethernet converter, SNMP, web, console option |
| HM-C616K | Chassis for 4E1/8E1 to Ethernet converter card, SNMP, console option |
