Product Overview

Description

Rotor pump+Manufacturer various pumps +18605777765

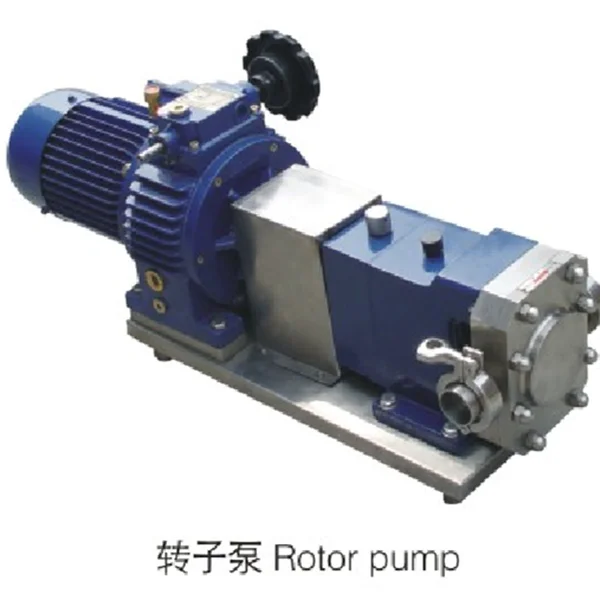

Brief Introduction of Rotor pump :

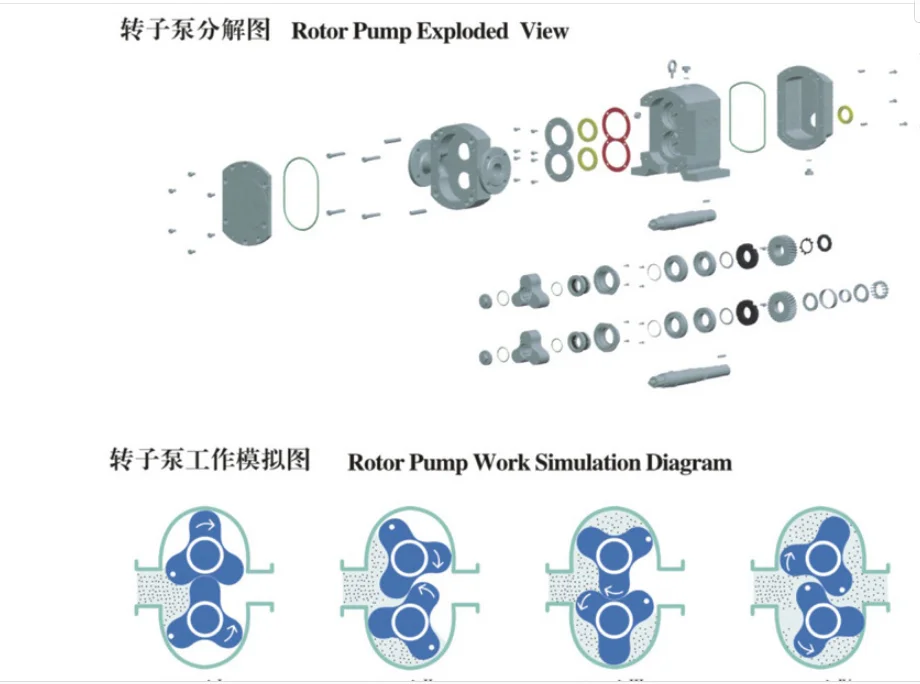

Rotor Pump is also named Colloid pump, cam pump, trefoil pump,high concentration pump,etc,It depends on two synchronic rotators.The two rotators are driven by a pair of outer-set synchronic gear boxes and the transmission shaft .They move synchronically in counter-clockwise directions.Which consequently,builds up high vacuum capacity and emission pressure.

The products are widely applied in such fields as dairy products,beer,food,pharmacy,beverages,cosmesics and chenical industry.

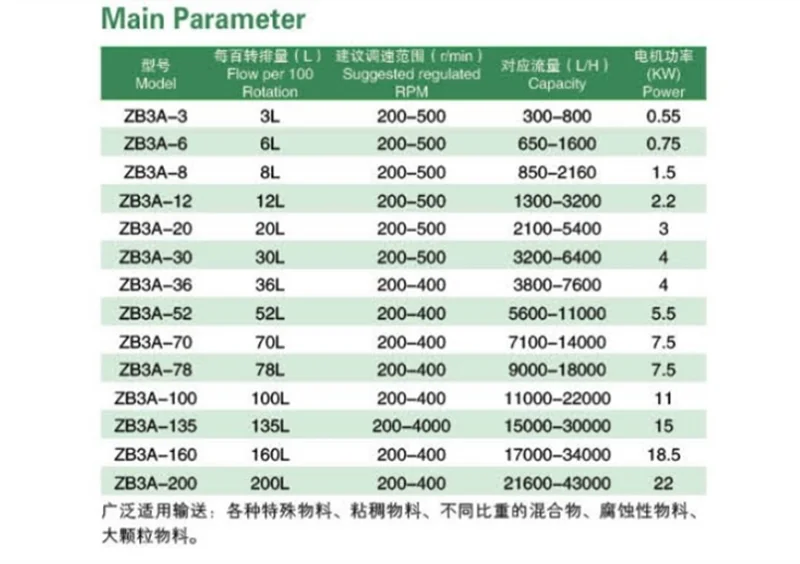

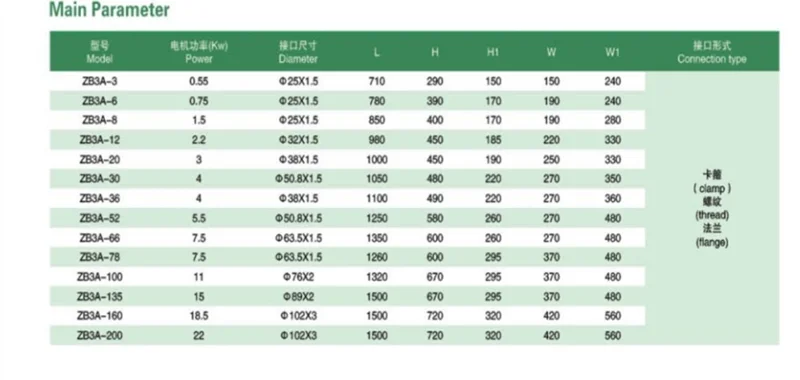

Technical Parameter of Rotor pump :



Choose to provide the following data:
The name of the conveying medium or liquid;

Viscosity and temperature of the medium (-20 to 150 ° C, maximum sterilization temperature 180 ° C)

Need to deliver head, pressure and flow;

The number and size of particles contained in the medium;

Choice of interface (clamp, thread, flange).

Pump body material: Select according to the media requirements 304, 316, 316L.

Can be equipped with cooling and heating devices

Sealing material: Standard rubber sealing ring is silicone rubber, select fluoro rubber according to media requirements, ternary

Ethylene propylene, PTFE, Ding Jing. Standard mechanical seal is silicon carbide-carbide

Choose graphite-silicon carbide, graphite-ceramic, etc.
