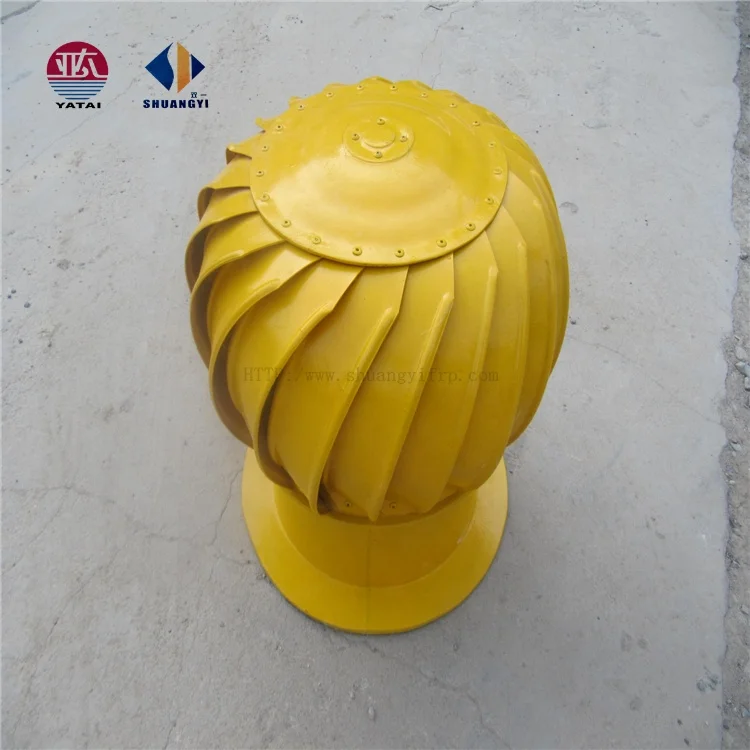

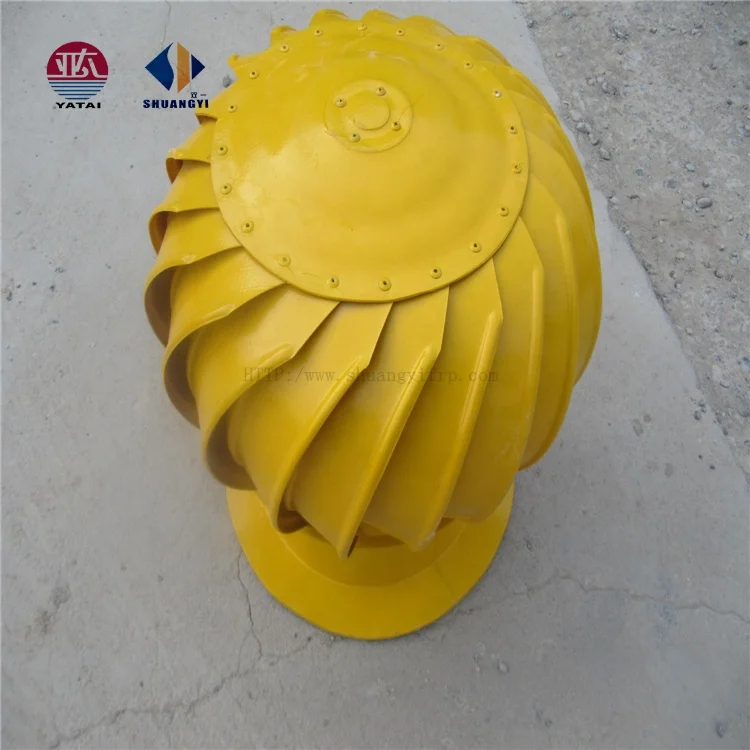

FRP Fiberglass Reinforced Plastic roof turbine ventilation fan/ roof turbo fan

Product Overview

Description





FRP roof turbine ventilation fan/ roof turbo fan









Specifications / structure

1.Material: made of FRP by stretching forming, attractive appearance, no rust,

2.  Bearing: wholel sealing bearing, which can ensure it operates smoothly and constantly.

3.  Special central shaft design, high-class lubricating bearing system: preventing turbine blades

rotating at high speed from deformation, and extending the service life.

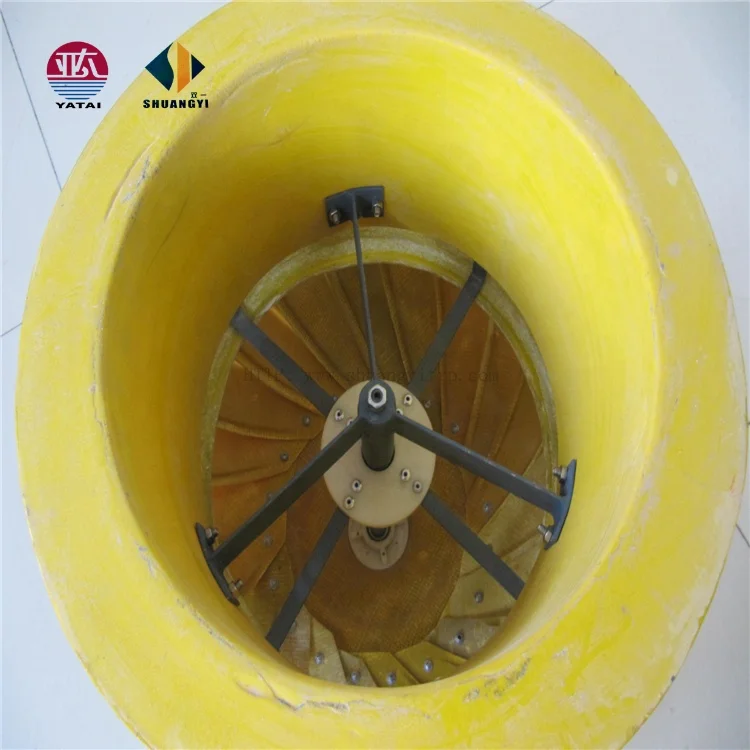

4, Inside support frame: cast iron.



Advantages

1, Automatically running. wind drive. One time investment, no anymore cost.

2. No operating cost, no electricity consumption, environmental protection, energy-saving.

3. No need maintenance, long life working.

4. Light weight, strong and durable construction.

5. Weather resistance,  self-cleanness, high revolving sensitivity and high air venting efficiency.

6. Easy installation:.installation position: flat roof, pitched roof, concrete roof and contour plate of

various industrial plants.

7, waterproof efficiency may reach 100%.



Function:

1)      Exhausting turbid, humid hot air to exterior and supplying fresh air to interior.

2)      Produce air convection as a heat radiator, reducing indoor temperature, increasing air fresh.

3)      Reduce air conditioning load, increasing the cooling effect.



Widely used in these places

1) Ware house;

2) Factories and workshops (such as paper mill, galvanized products producing factories,

painting factories);

3) Garage and other buildings which need air ventilate.



Type	Blade(Pcs)	Turbine  diameter (mm)	Air vent diameter (mm)	Net height (mm)	Net weight (kg)	Packing size (mm)
SY-300	20	420	300	340	2.0	410×410×330
SY-500	25	650	500	580	4.6	640×640×500
SY-600	29	750	600	590	5.8	730×730×600
