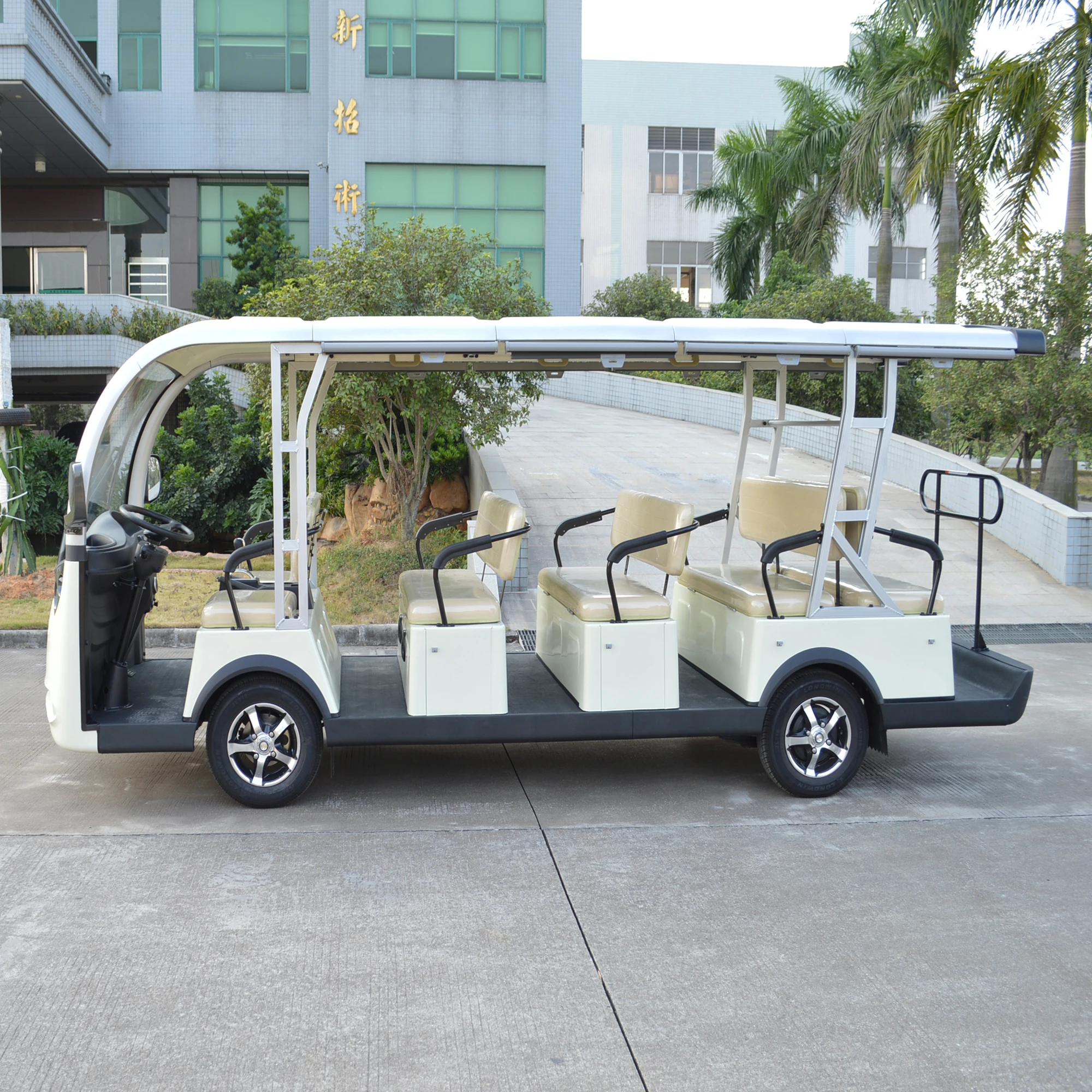

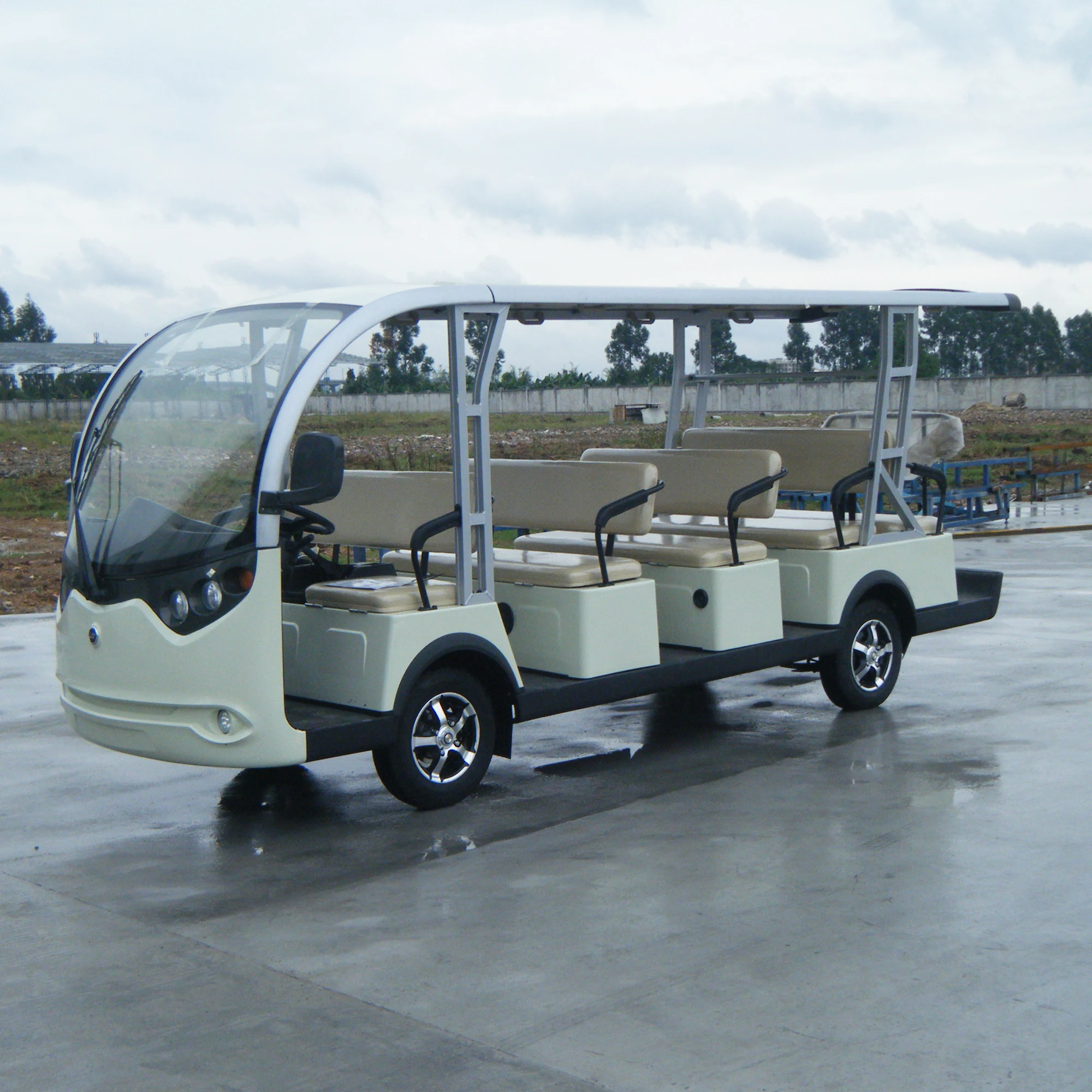

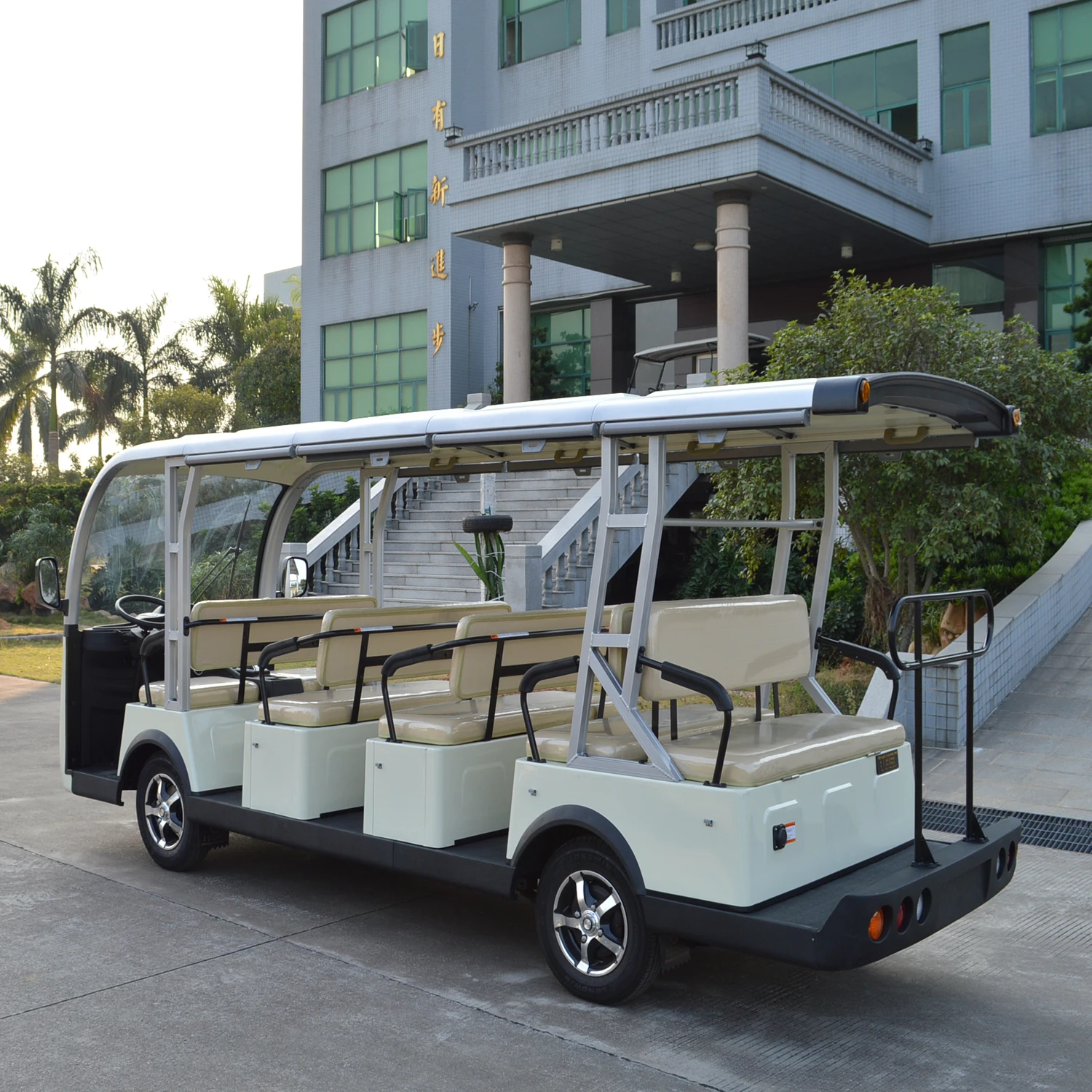

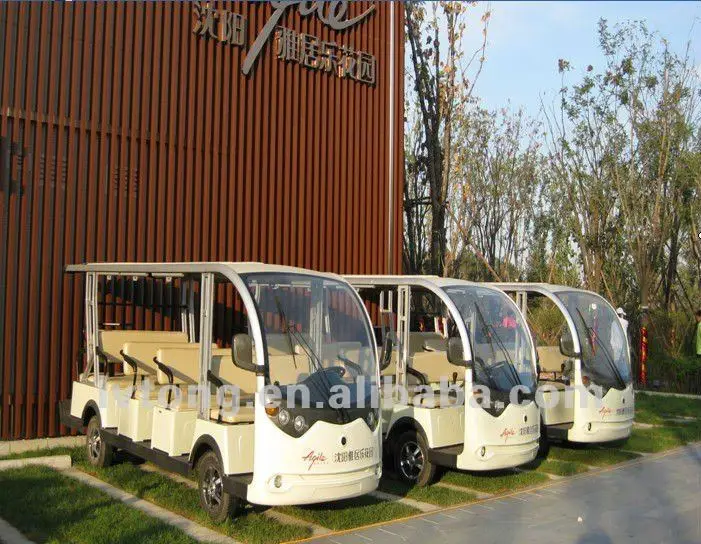

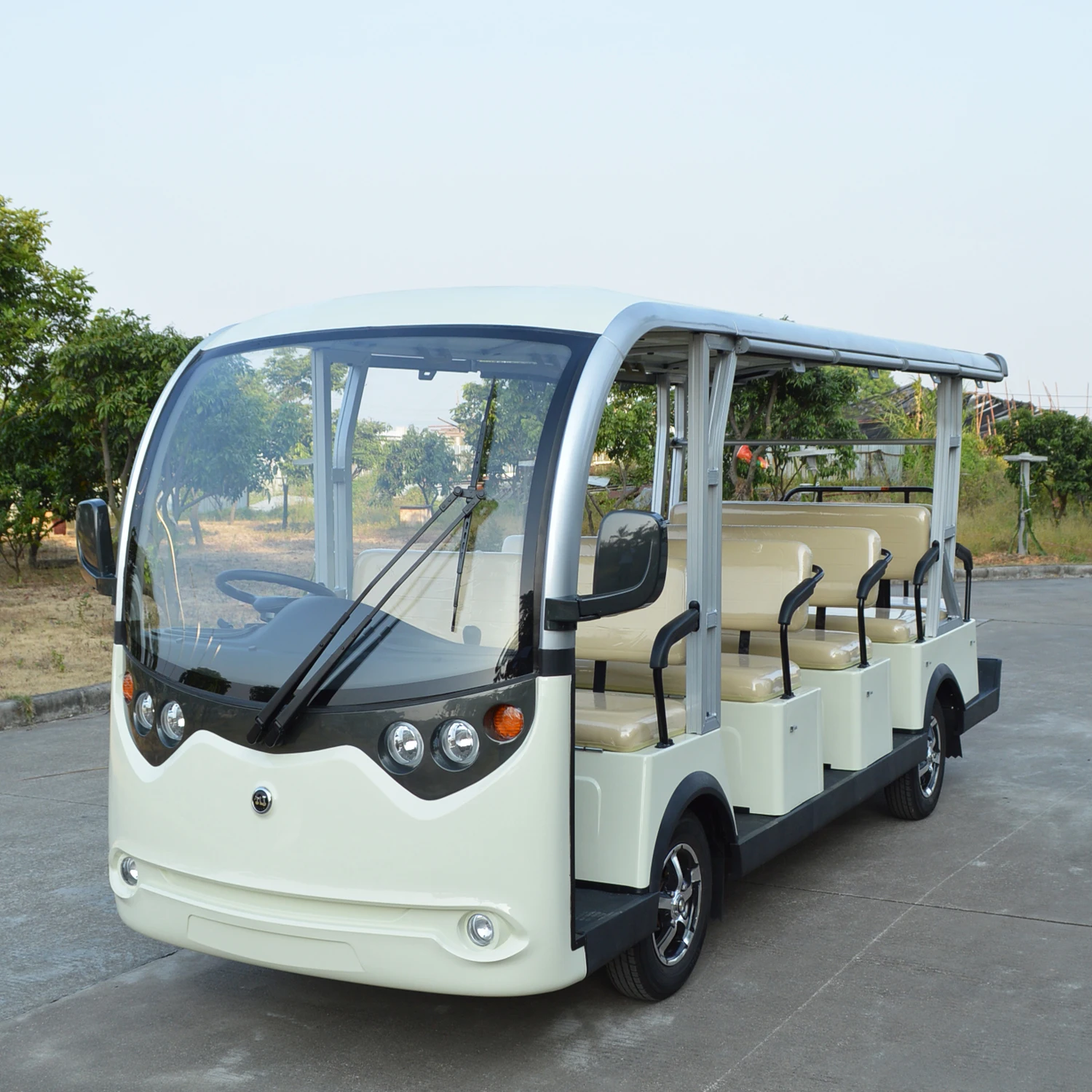

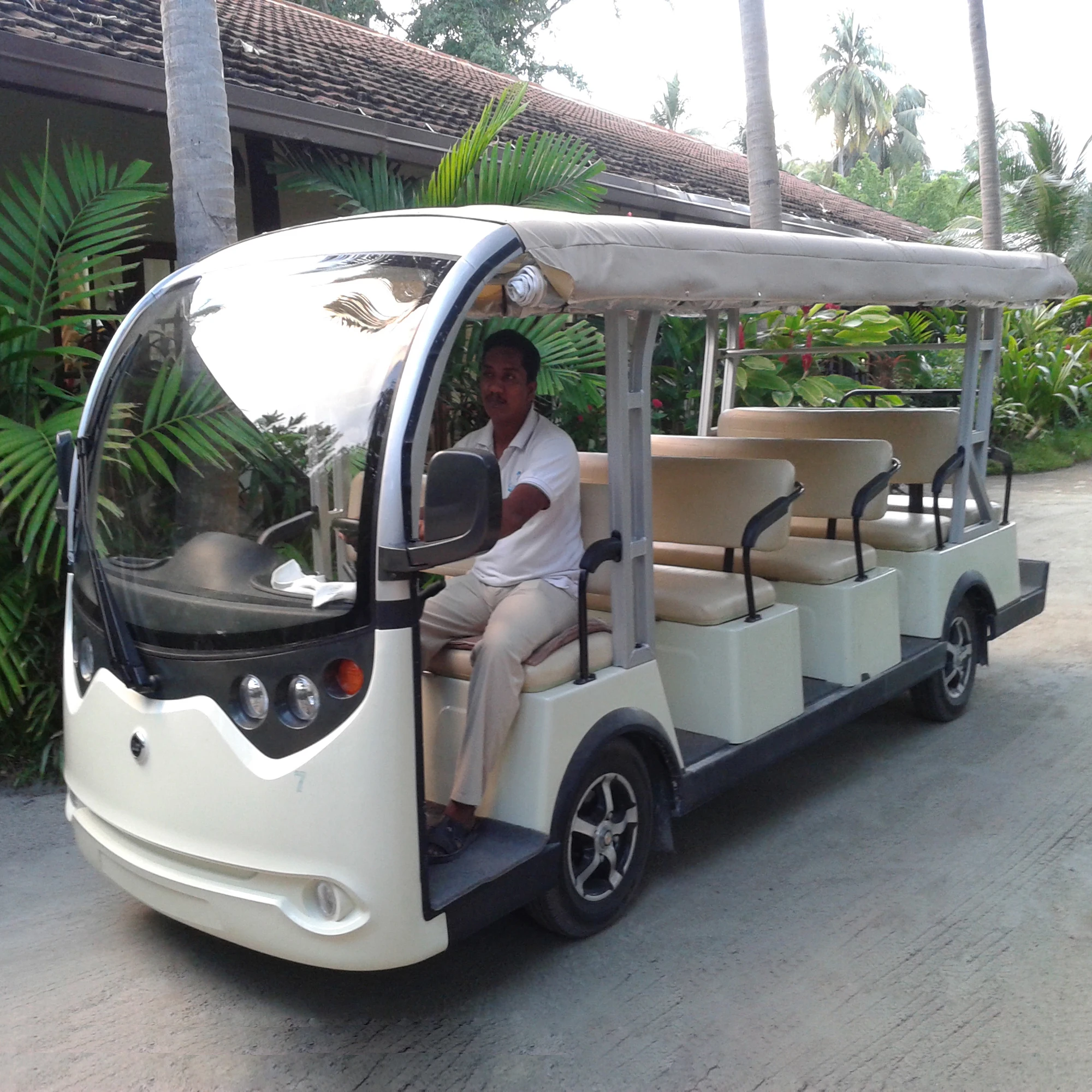

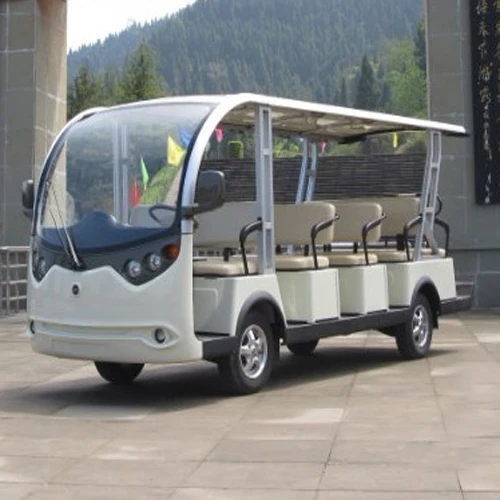

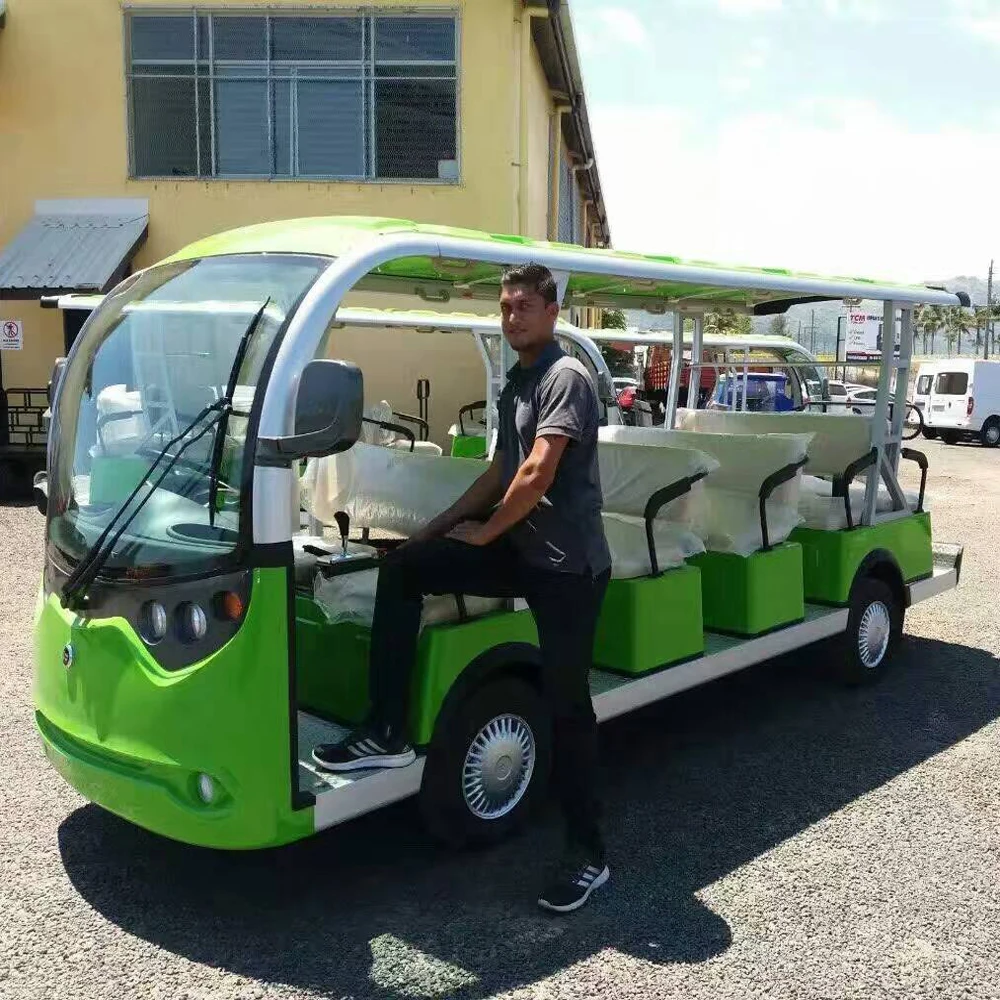

14 Seaters city electric sightseeing bus for sale

Name: 14 Seaters city electric sightseeing bus for sale
SKU: 263051300
Price: $7,100.00 - $8,600.00 USD
Availability: InStock

Price:$7,100.00 - $8,600.00

Quantity:

14 Seater city electric sightseeing bus for sale (LT_S14)

Electric vehicle product description

1. Motor: US ADC brand

2.Controller: US CurTis1266

3. Battery: 6V,12units

4.Stable quality, little noise, anti-fatigue and long durability

5.There is oil seal which can bear high temperature, therefore it can prevent the transaxle from oil leakage

Electric system	controller		1205/400A
	battery		6V,12units
	motor		72V/5.5KW motor
	charger		Computer Intelligent,input 220V/110V,ourput 72V,25A
Charging time			Less than 12 hours(discharging rate 80%)
Body configuration		Glass	Sandwich glass	Sun Roof	Fiber glass
		seat	leather	Floor	Autiskid rubber floor
		Rear mirror	Handoperated,both side	Steering	Dual automotive-style strut and self-adjust rack-and pinion steering
		DC/Light/Signal	72V/12V-400W Front light,turning light,fog light, rear light,horn,Buzzer
		Body	Fornt bady adopts”PP”alloy automobile special engineering material The driving baxadopts fiber glass material
		Dash Board	Fiberglass dash board,Voltage Indicator 48V,Switch Head Lights,Switch - Indicators Right/Left,key switch,Switch - Forward/Reverse
		Braking system	Front disc and rear dram,four-wheel hydraulic brake+hand brake
		Front axle and suspension	Independent suspension,helical spring +cylinder hydraulic shock absorption
		Rear axle and suspension	Integral type transaxle,gear ratio 12.49:1,semi-independent transaxle,spring,cylinder hydraulic shock absorption
		Tire diameter	535mm
Parameter		Lengthwidthheight	496014801960mm
		Loading passenger	14
		Max speed km/h	30km/h
		Mileage /km	80—100km(flat road)
		Max climbing ability	15%
		Mini turning radium(m)	5.5m
		Mini ground clearance	180mm
		Wheel base	Front 1180/back 1200mm
		Braking distance	3.5M
