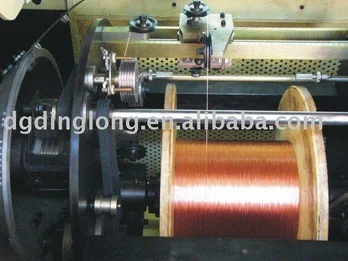

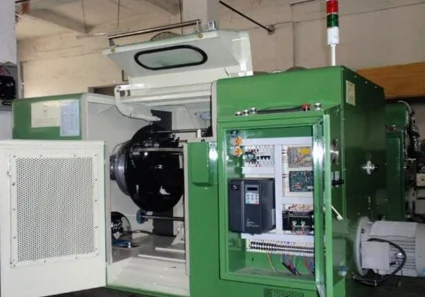

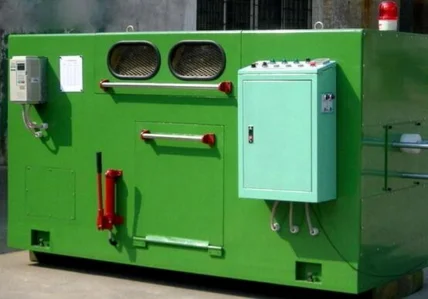

DL-300/250 High speed double twist wire bunching machine
Product Description
Application:
Twister: bare copper wire, tinned wire, enamelled wire, alloy wire etc. twisted.
Technical Specifications:
Model
parameter
DL-300/250
Single wire dia.
φ0.025∼φ0.18 mm
Bunching dia. range
φ0.075∼φ0.70 mm
Cross section of bunching
0.005∼0.30 mm²
Take-up bobbin size
φ250 mm×180 mm×φ30 mm
Rotation speed
4000 RPM
Traverse
φ15 mm polished rod traverse controller
Bunching pitch
0.8∼10.6 mm
Main motor
AC 2.2 KW Plus transducer
Capacity of loading
About 10 kg
Bunching direction
S/Z
Tension control
Take-up tension controlled by magnetic powder clutch,
Spool loading and unloading
Hydraulic Lifting
Noise
About 75 db
Machine size
2500 mm(L)×1120 mm(W)×1430 mm(H)
Weight
About 1600 kg
FAQ1
Q1: How long is the delivery time? A1: It will take 20 days from the beginning to the end of the production. It takes more than 30 business days to customize complex mechanical equipment. Q2: What is terms of payment? MOQ? A2: T/T, L/C. 1 set. Q3: How do you gurantee the machine stable operating? A3: We do pre-shipment test for every single set of machine. We have seperate QC, delivery, sales and after-sales departments. Also strict management process from pre-sales to after-sales. Q4: What is your after-sales service? A4: 1 year warranty with 60+ oversea after-service engineers (oversea after-service team of high efficient, professional and enough experience for various non-standard project) . Q5: How can I install my machine when it arrives? A5: For simple and semi auto machine, Dinglong would send manual instruction and teaching video. For complex operation , we will send the engineers overseas to help client installing, operating and training.
Our Services
What services will we provide to our customers? Pre-sales services: 1. Inquiry and consulting support. 2. Customized design program. 3. Pre-sale training: in order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes: 1) Correct operating mode. 2) Correct maintenance way. 3) Remove simple problem of our product. After-sales service: Since the shipment date, our company freely assuring period of after-sale maintenance service is: 1) 1year for mechanical part. 2) 6 month for electrical part. 3) Offer lifetime consultation on problems occurred.
Company Information
Dinglong Electrical Machinery Co., Ltd. is a high-tech manufacturer specialized in designing and manufacturing electrical machinery with ISO9001 certificates. Our products include: 1. Silicone strip equipment series. 2. 3D printer filament extruder machines. 3. LED strip equipment series. 4. Rubber processing machines. Since our company was founded, over the past 10 yeas, our products have been extensively imported from Africa, Southeast Asia, Latin America, Europe and other markets.
