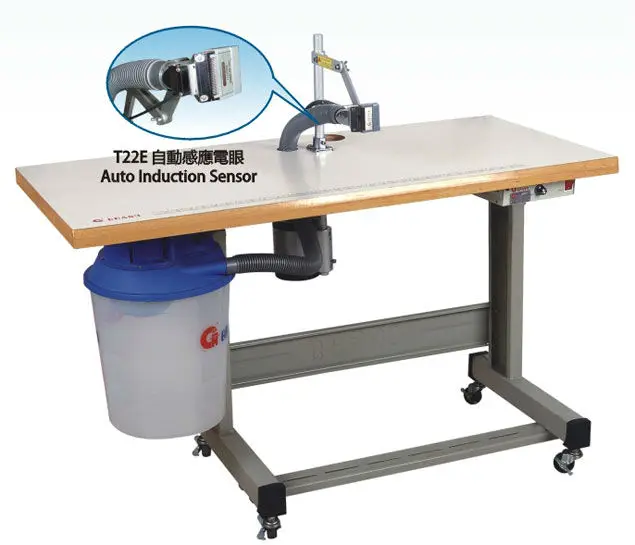

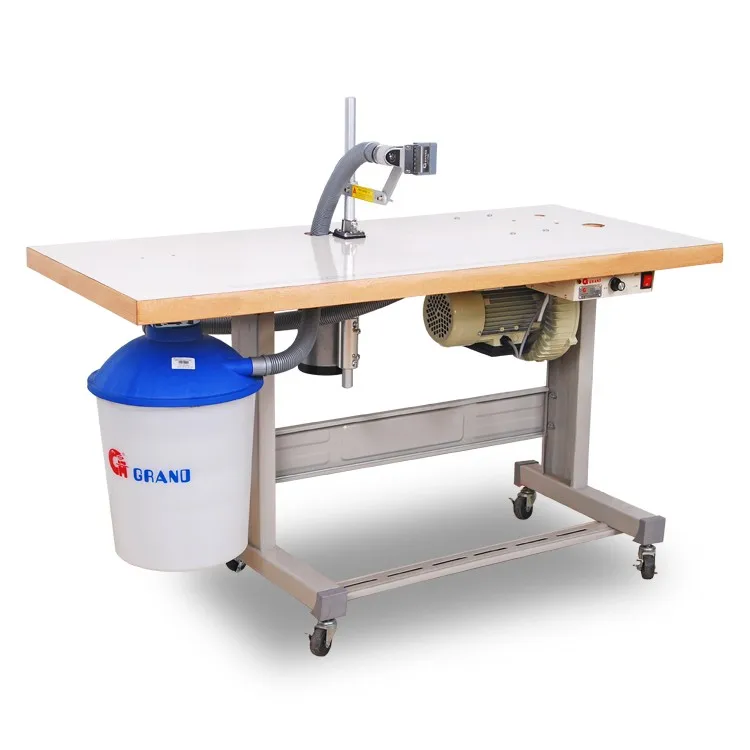

Table Style Thread Trimmer machine automatic thread cutting machine

Product Overview

Description

Setup a Trimming and Inspection line. Complete Trimming, loose thread removal and first Inspection in one stage with undisputable Worker Accountability. Other Advantages are listed below:



Advantages of thread trimming by our machine
-Totally eliminates alteration, specially in flat lock and over lock seams

-Simple to use equipment, continue to deploy unskilled operators

-Trim quality is independent of worker skill

-Eliminate cut rejection due to fabric cuts, re-working or part changing

Loose threads are removed and collected in a bin (waste collection bucket)

-Eliminate loose thread removal operation

-Get floors free of loose threads in finishing and packing work area

Increase productivity at other garment processing stages

-Eliminate Garment Cut rejection

-Eliminate the need of trimming at pressing, finishing and packing stages

-Increase operator efficiency at pressing, finishing and packing stages

-Stops alteration, part changing and reworking

-Eliminate loose thread removal operation

Cut production costs

-Make savings in materials, labor and time by eliminating loose thread removal operation

-Reduce labor at finishing and packing by eliminating the need of thread trimming at these operations

-Make savings in materials & labor used in part changing, alterations and loose thread removal

Cleaner floors and work area

-Loose threads are the root cause of plant Un-Cleanliness and are created by hand thread-trimming

-Thread-Trimming by machine does not create loose threads

-Cleaner work area translates into a better finished garments



Product Details:

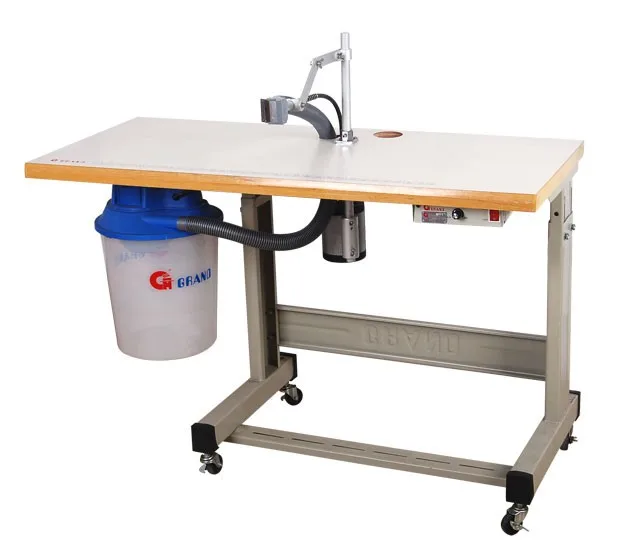

Name:	Table style thread trimmer/Table style inductor thread trimmer Machine
Model:	T22C/T22E
Application:	Automatic trimming, applicable to knit clothes (children's clothes, underwear, T-shirt), Denim clothes (shirt, western-style trousers, jeans) etc, specially applicable to clothes with many ends of thread; easy to move, suitable for department of division of labor in large and small manufacturers.
Merit:	For use where the article to be trimmed is brought the machine. Reduces trimming costs, increase production, uses unskilled help, eliminates scissor damage, keeps trimming area clean and reduces cleanup cost. The machine is properly designed new style, excellent quality and easy operation. It is the best choice of the modern thread trimmer equipment. Easy maintenance. You can choose different clipper blades & motor control for different material.
Technical Parameter:	Voltage				110V/220V
	Power				180W-430W
	Frequency				50HZ/60HZ
	Revolution				3450RPM(60HZ) 2850RPM(50HZ)
	Power consumption				0.180.43KW
Peference:	Material		SilkWool		Knit Material		DenimJeans
	Clipper blades		342/Blunt(Option)		277/Fine(Standard)		279/Coarse(Option)
	Motor control		3-4		5-7		6-9
Manual Operation VS Grand Thread Trimmer Operation Report
Zhongshan Shaxi Computerize Embroidery Garment Factory		Warm Underwear		Manual Operation 3'20~355/pc		Grand Thread Trimmer Operation 115~140/pc
Dongguan Houjie Garment Factory		Circle Collar Long Sleeves T-shirt		Manual Operation 40~50pcs/hr		Grand Thread Trimmer Operation 100~110pcs/hr
Vietnam Garment Factory		Circle Collar Long Sleeves T-shirt		Manual Operation 50~60pcs/hr		Grand Thread Trimmer Operation 80~120pcs/hr
Dongguan Chashan Grament Factory		Long Sleeves T-shirt With Slide Fastener And Pocket		Manual Operation 12~20pcs/hr		Grand Thread Trimmer Operation 30~35pcs/hr
Dongguan Chashan Garment Factory		Jeans		Manual Operation 20~30pcs/hr		Grand Thread Trimmer Operation 60~80pcs/hr

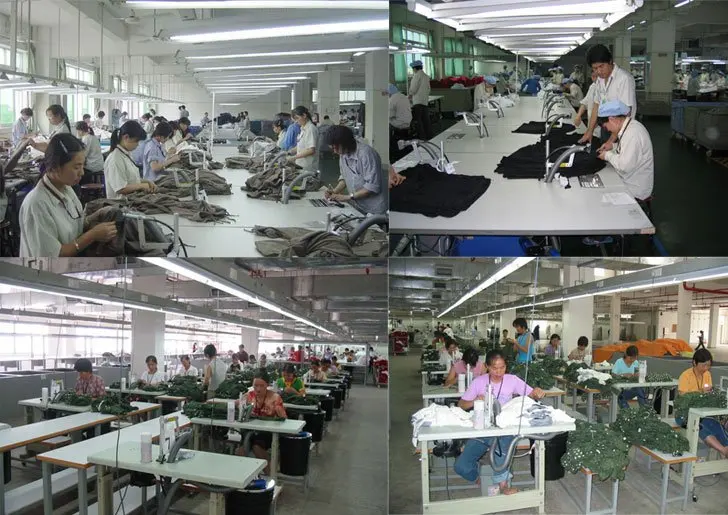

 Factory case:
