68 cooker hood motor (FZ8425)

Product Overview

Description



AC Series Single Phase Range Hood Motor FZ8425C-501



Superiority

1. Small Quantity is Acceptable
2. Free Sample is Available
3. Competitive Price
4. Safe & Reliable, Low Noise, Characteristics Hard, Good Starting, Long Life



Specification of AC Series Single Phase Range Hood Motor



Motor NO.	FZ8425C-501
Motor type	AC shaded pole motor
Brand name	Fangzhan
Place of origin	Guangdong,China
Voltage	AC36V-240V
Frequency	50/60HZ
No load power	5W-50W
No load speed	1300-2900RPM
Stator thickness	7mm-50mm
shaft diameter	Ø3.17mm-6mm or under requested
Core dimension	48,57,58,60,61,63,84mm
Frame material	silicon electric sheet or cold plate
Bearing	sliding bearing or balll bearing
Bracket	zinc aluminum alloy or metal
Environment temperature	15℃-105℃
Insulation Class	A,E,B,F,H
Certification	CCC/CE/CUL/UL/ROHS
Rotating direction	CW or CCW
Noise	Max 38dB(A)
Working standard	continuous
Rustproof	Yes or no
Lead wire	up to request
Use	exhauster ,cooker hood , range hood , exhause fan , fan ,massaging machine,electrical oven ,ice box air cleaner,cloth dryer , electric heater pump,home appliance
Customization	voltage,frequency,power,speed,stator thickness,rotating direction,shaft length,shaft end,lead wire,insulation class
Minimum order quantity	500 set
Supply ability	500,000 sets per month
Price	FOB Shunde port USD3.5-4.6
Packaging detail	foam and carton
Delivery time	15 days after we receive your 30% deposit
Payment term	T/T or LC





Description of AC Series Single Phase Range Hood Motor

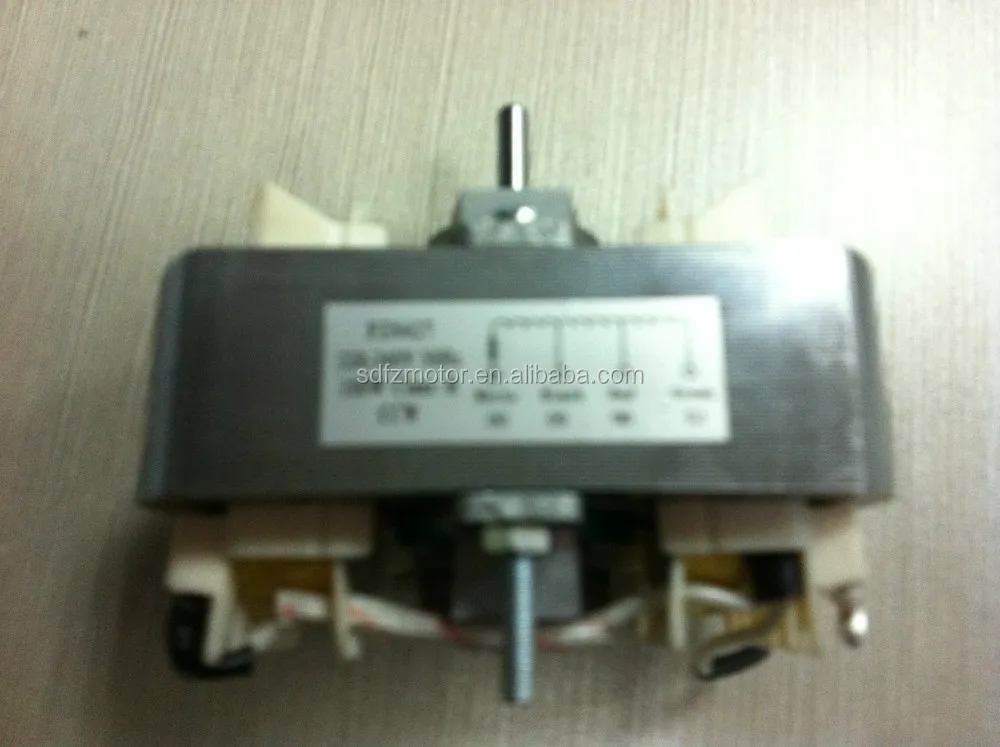

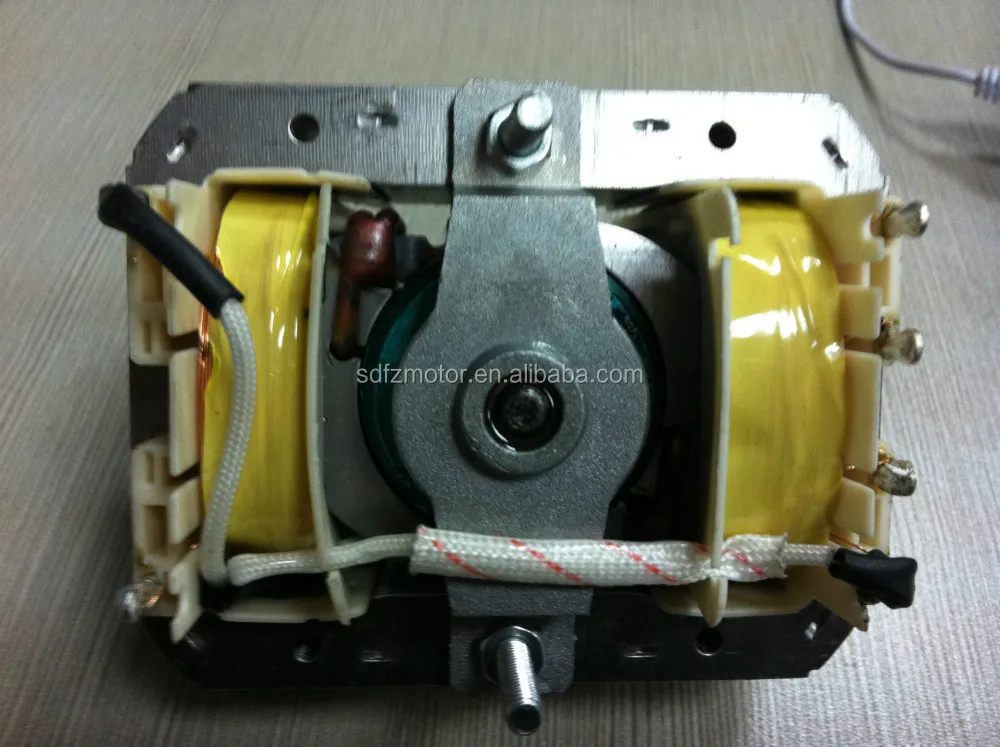

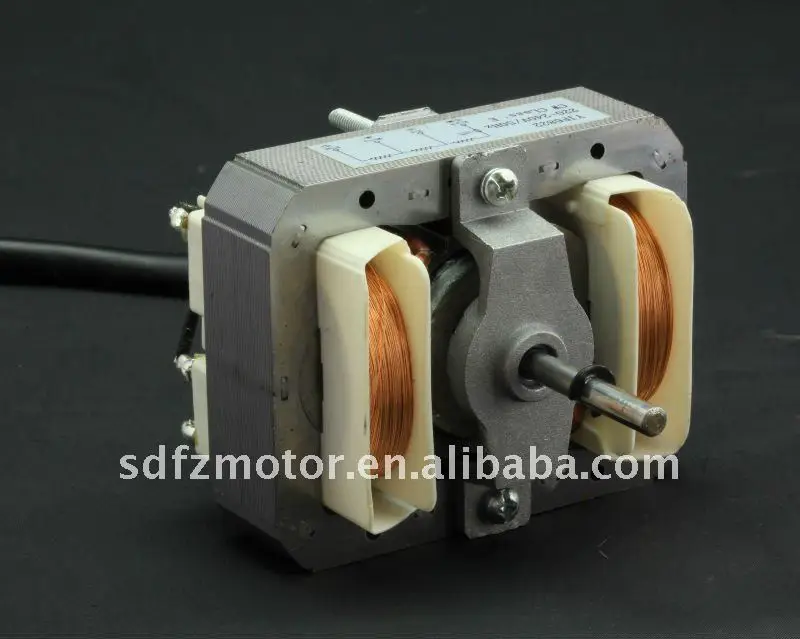

Pictures of AC Series Single Phase Range Hood Motor











Appliances of AC Series Single Phase Range Hood Motor



1) Range Hood





Package of AC Series Single Phase Range Hood Motor







Certificaton of AC Series Single Phase Range Hood Motor





Company Information





Factory View



1) Establishment: 1998
2) Plant Area: 10,000 m³
3) Employees: More than 300 including 31-40 R&D staff
4) Production Line: 7 lines
5) Production Capability: Approx US$50~100 millions/per year
6) Certification: ISO9001:2000 certified, most of our products are CE, ROHS and UL approved
7) Exported Countries: North America, Southeast Asia, Western Europe, Russia etc



Why Choose Us



1) Our motors are manufactured to the highest standard and with 1 year WARRANTY
2) We have established a substantial GOODWILL in the industry
3) We have get CCC,CE, RoSH, UL,ISO9001 approved
4) With the SAME quality,clients can get a more COMPETITIVE price from us
5) We accept SMALL order QTY to help our clients to open their markets
6) Easy online order!! We can arrange Door to Door service
7) OEM & ODM service are welcomed



Our Teamwork



1) Professional, our team can offer expertise and efficient services
2) Response promptly, all E-mail will be answered within 1 working day
3) Arrange quickly, orders will be arranged once payment or bank slip received.
4) We will be 100% backup and provide excellent after sales service for our clients



FAQ



Q1: What's the MOQ?
A1: We can accept small MOQ at the beginning to help customer enter into market firstly.



Q2: What's the delivery time?
A2: 7~10 days delivery time for samples, 15~30 days for formal orders.



Q3: What's the warranty?
A3: For the motors, we have 1 year warranty. If any quality problems on our side occured during this
      warranty period, we will replace them at our cost (including the shipping cost).



Q4: What's the price?
A4: We provide reasonable, competitive price and recommend suitable motors to our customers.



Q5: What's the service?
A5: Our policy is to provide more faster & safer & easier service for our customers.



Q6: What's the marketing supports?
A6: We are willing to help you do the marketing together. We can provide different free promotions, and we
      can also support you do some attractive suitable local advertisement.

Q7: Can we visit your factory?
A7: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up
       your case.
