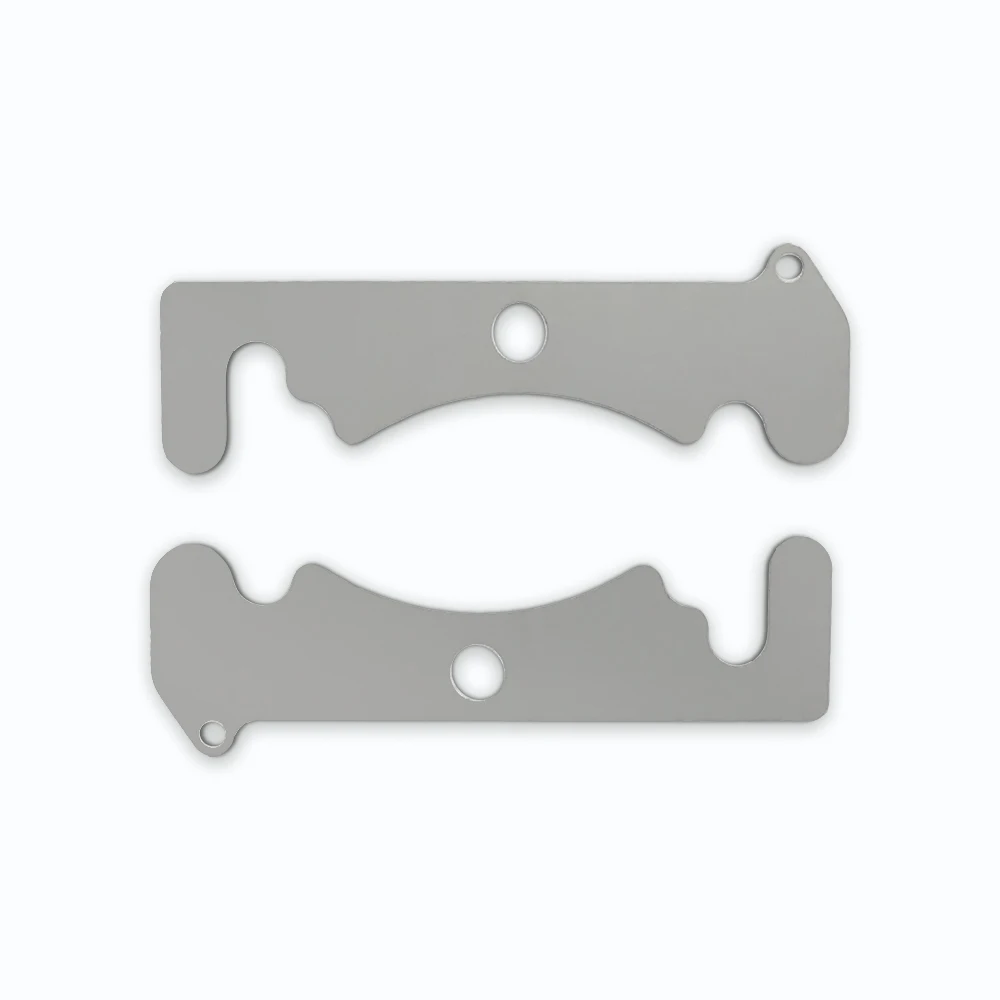

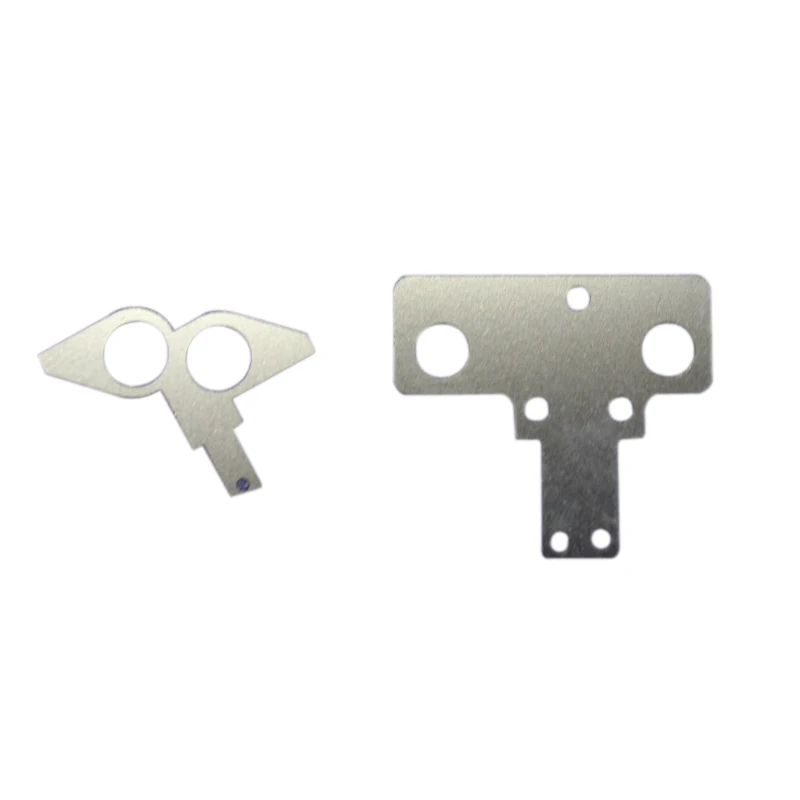

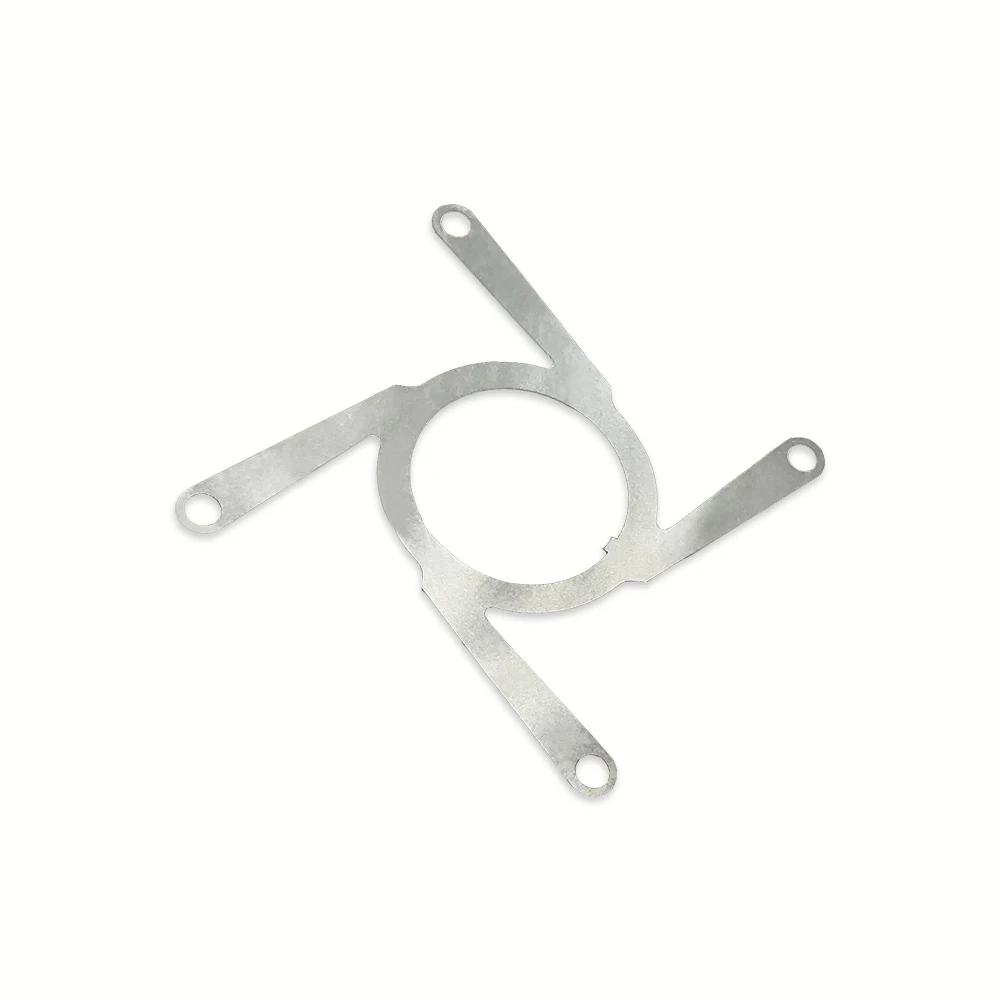

etched SUS304 0.01mm thickness flat shims stainless steel gaskets

Product Overview

Description

stainless steel gaskets :chemical etching or stamping process ,low cost ,different material and surface treatment available ,

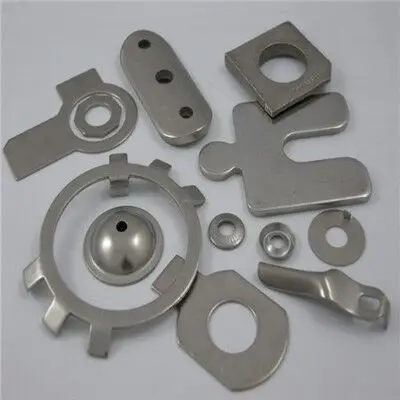

We professionally manufacture all kinds of metal components by etching process

Product thickness can be achieved between 0.01mm to 1.5mm.

Product size can be achieved between 1mm* 1mm to 600mm* 780mm.

Smallest open hole is Ø 0.1mm.

Smallest line width is 0.025mm.

Product precision is ± 0.01mm (common difference). Its generally 20% of material thickness.

We also provide imported stainless steel thin belts with many kinds of models such as 301,304,430.



Our  gaskets made of stainless steel 304 ,301 , 316, spcc

Production process

1.cutting material
    Measure and check the standard,flatness,and note the data
2.Cleanning
   Absterge the infectant of the material in defatted alkalescent liquid
3. sensitive glue coating and dry
4.Exposure
   Vacuum-press after laminating the two sides separate,then sensitive by ultraviolet radiation
5. Development
   Dry film by develop and implementing the roasting furnace
6.Etching
   Inject the material into the etching liquid
7.clean oil film

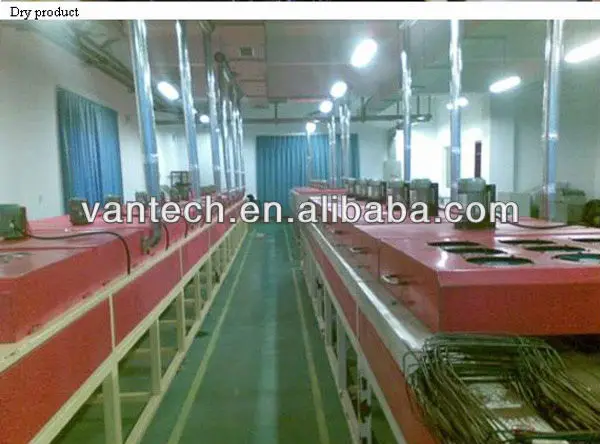

8 Dry the product
9.inspection

10. package
