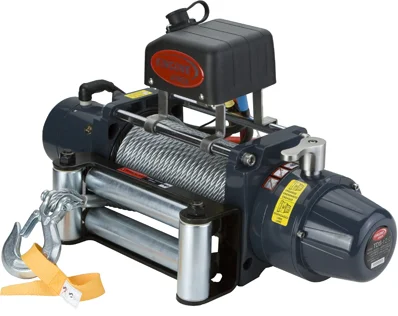

KINGONE 12000lbs recovery winch off road winch electric winch with wire rope




















 ss1_01
 8


ss1_13




































































































SPECIFICATION
Line pull:5,442kgs/12,000lbs
Motor: 12V/6.0HP 24V/3.6HP
Gear Train: Three stage
Gear Ratio: 254:1
Freespooling Clutch: Rotating ring gear
Wire Rope Size: Φ3/8"×90'(Φ9.5mm×27.4m)
Wire Rope Type: Aircraft A7×19
Drum Size: Φ2.5"×9"(Φ63.5mm×229mm)




























LINE PULL
Layer of Wire RopeMax Line Pull
112,000lbs/5,442kgs
29,789lbs/4,445kgs
38,273lbs/3,760kgs
47,199lbs/3,255kgs






























































LINE SPEED AND AMP DRAW(1st layer of rope on the drum)
LoadLine SpeedAMP Draw(12V)AMP Draw(24V)
No Load29.3FPM/9MPM6040
2,000lbs/907kgs13FPM/4MPM11687
4,000lbs/1,814kgs9.8FPM/3MPM141110
6,000lbs/2,722kgs7.9FPM/2.4MPM178129
8,000lbs/3,650kgs6.9FPM/2.1MPM224165
9,500lbs/4,309kgs6.2FPM/1.9MPM238185
11,000lbs/5,000kgs4.9FPM/1.5MPM270214
12,000lbs/5,442kgs4.5FPM/1.4MPM285217


DIMENSIONS(mm)
 tds-12.0 drawing.png


STANDARD ACCESSORIES

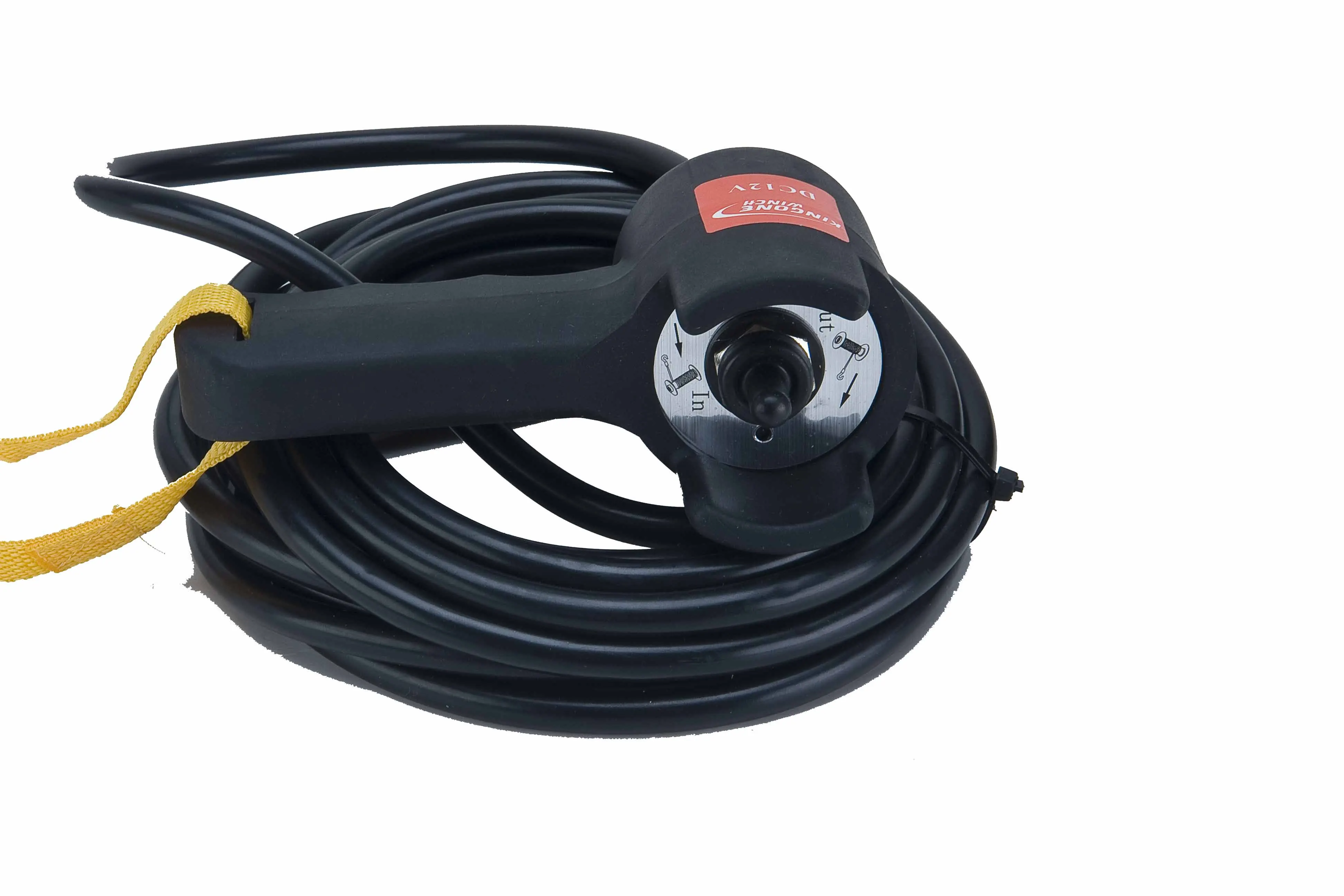

Controller                      TA-0906

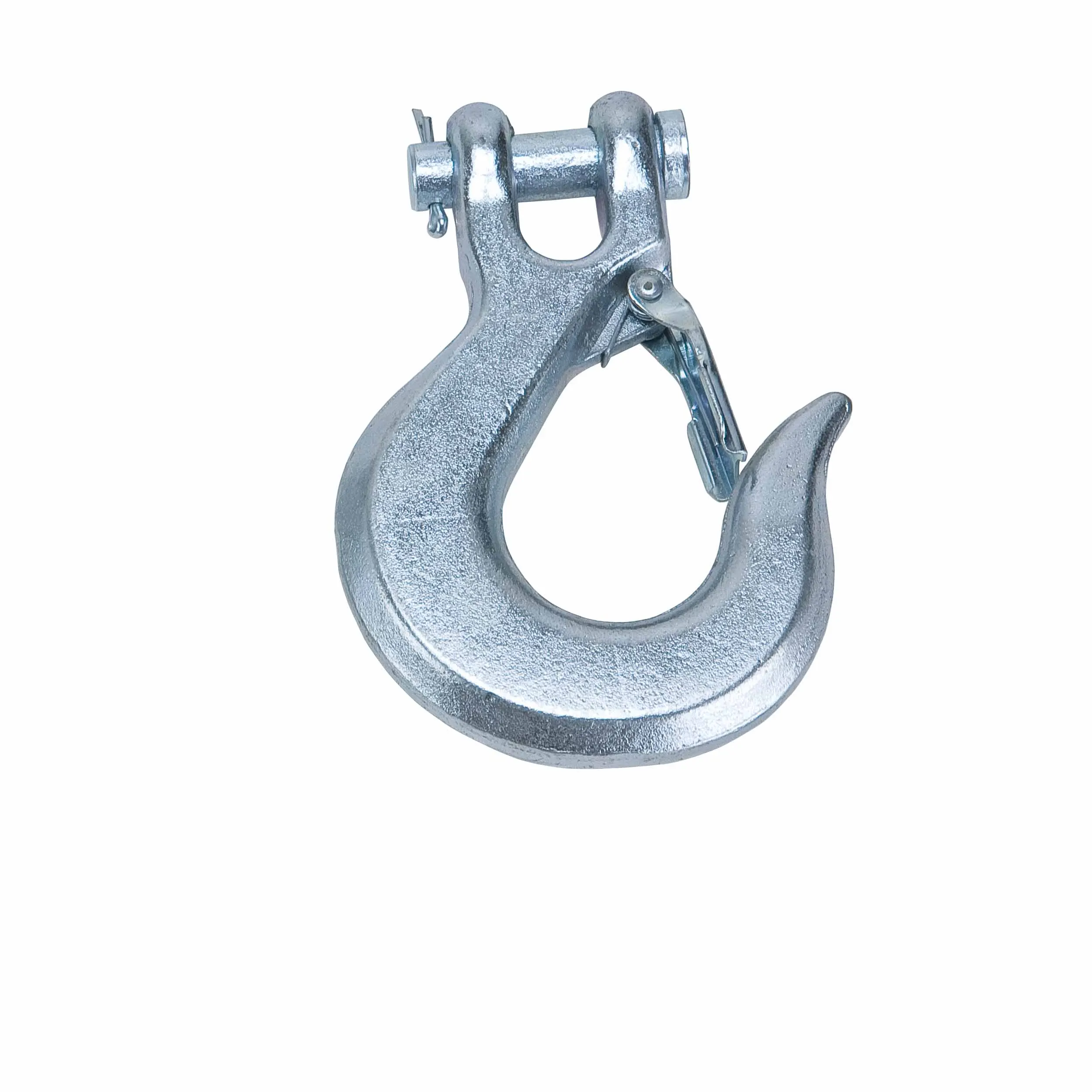

Wire Rope With Hook

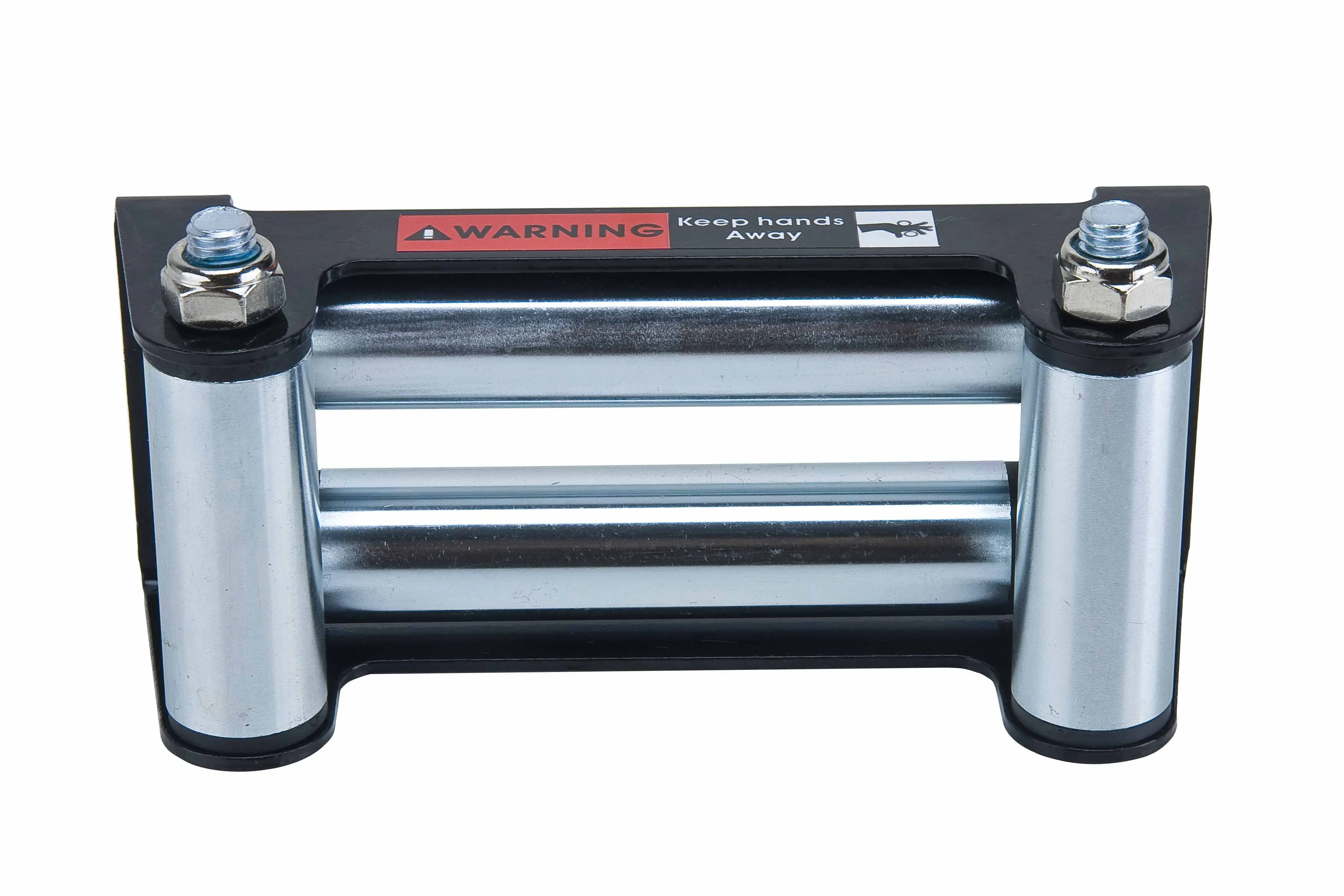

4 Way Roller Fairlead    TA-0903
Control Unit                  TA-0909
Mounting Hardware
Handsaver Strap

PACKAGE
Winch weight : 49 kgs/108lbs
Gross Weight :  52kgs/114lbs
Box Dimension : 647×198×410 mm(25.5"×7.8"×16.1")
