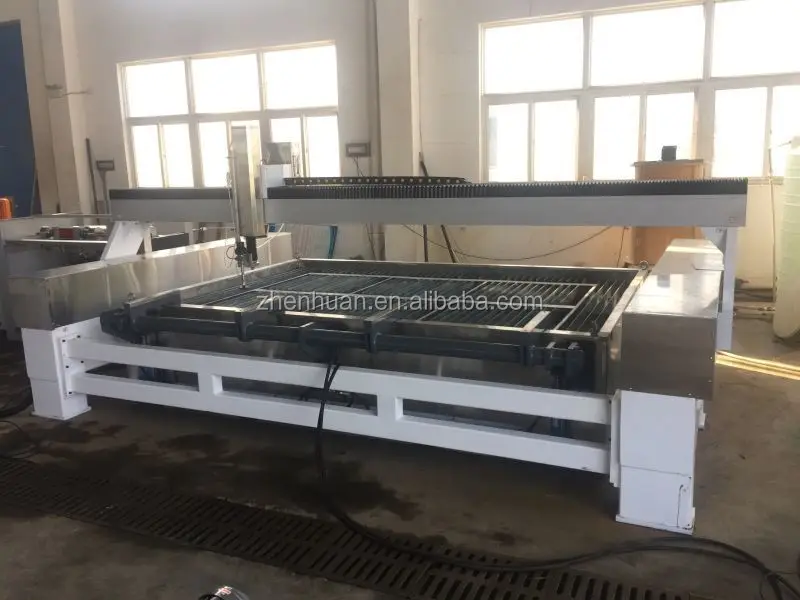

Water jet cutting machine
- Category: Water Jet Cutters >>>
- Supplier: Nantong Zhenhuan Trade Co. Ltd.
Share on (264584694):
Product Overview
Description
MAIN FEATURES
G75 high-pressure generating system that our company produce, can boost pressure ordinary into 420 MPa. Through a nozzle of 0.3mm, by adding special sands, a water stream can cut various kinds of material .
Makeup of the line: high pressure water-jet generator G75, 5 Axis CNC system, working table
MACHINE SPECIFICATION
Serial No. | Item | Data |
1 | Workable area | 1300x1300mm |
2 | Stoke of Z axis | 150mm |
3 | Max. dimension of working piece | 1300 x 1300mm |
4 | Max. cutting thickness | 100mm |
5 | Cutting speed (100mm) | 5mm/min |
6 | Main motor | 37kW |
7 | Max. water-jet pressure | 420MPa |
8 | Rated flux | 3.6L/min |
9 | Re-positioning accuracy | +/- 0.05mm |
10 | Processing accuracy | 1-50mm, 0.2mm; 50-100mm, 0.5mm |
