electric free fall winch for pile driver marine tugboat hand brake used on oil gas drilling platform offshore boring island
- Category: >>>
- Supplier: Pingyang Construction Hoisting Machinery Co.
Share on (264592740):
Product Overview
Description

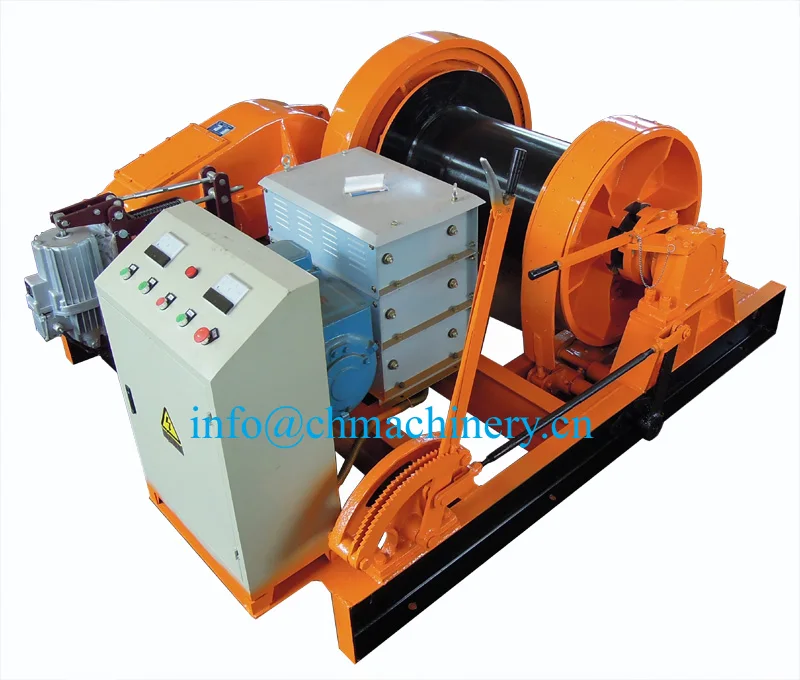

electric single drum free fall hand brake marine winch for pile driver or lifting on boat as marine winch, with clutch, ratchetratchet pawl.
This series winch mostly are applicable for free fall rushing hole and pilling. Characteristic of this winch is that its rope roll are could pull out.
| Model | JKL3 | JKL5 | JKL8 | JKL10 |
| line capacity | 30KN | 50KN | 80KN | 100KN |
| speed | 30m/min | 30m/min | 30m/min | 30m/min |
| dia. of drum | 320mm | 400mm | 525mm | 550mm |
| wire rope dia. | 18mm | 22mm | 26mm | 30mm |
| rope capacity | 180m | 250m | 350m | 350m |
| motor power | 22kw | 37kw | 55kw | 75kw |
| weight | 1500kg | 3000kg | 5400kg | 7800kg |
