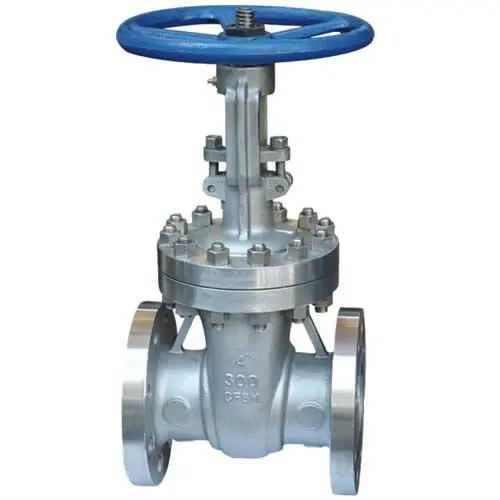

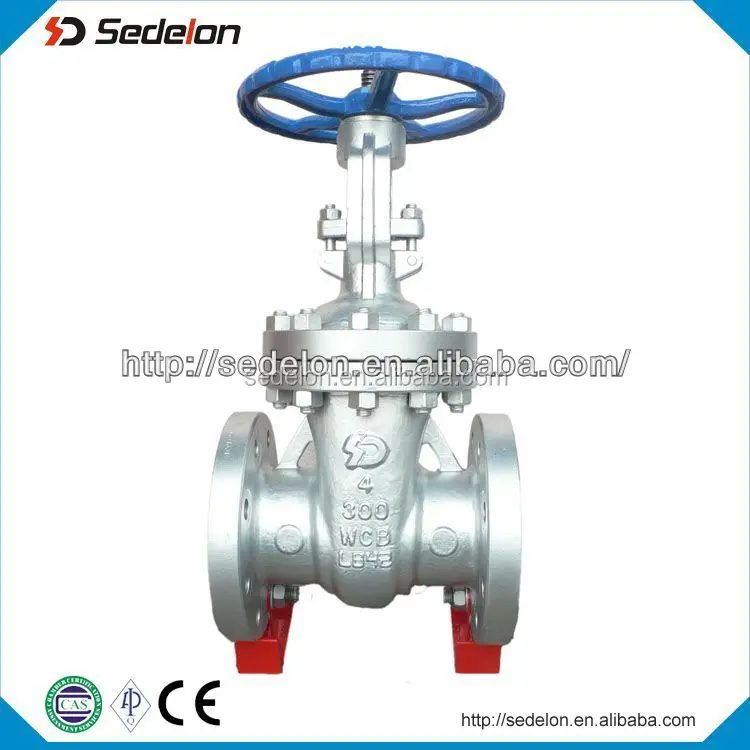

Class 150/300/600/900 Stainless Steel Gate Valve Cad Drawings

Product Overview

Description





Class 150/300/600/900 Stainless Steel Gate Valve Cad Drawings



Sizes 2"-40".

Pressure:Class 150Lbs, 300Lbs, 600Lbs, 900Lbs, 1500Lbs,2500lbs as specified in B16.34

FP. Full port design / RP. Regular Port / Reduced Port

Bolted body, side entry, Two piece body / split body / Three piece body

Blow out proof stem

Flanged end, raised face

CAPI / ISO5211 Mounting pad

Double block & bleed on request

Trunnion mounted

Level or wormgear actuator

Materials:
Cast Steel: ASTM A216 WCA, WCB, WCC

Stainless Steel: ASTM A351 CF3, CF3M, CF8, CF8M, CF8C, CG8M, CF10, CF10M, F304, F316, F304L, F316L, F321, F347, F317, F304H, F316H

Cr-Mo Steel: ASTM A217 WC1, WC6, WC9, C5, C12, C12A, F11, F22, F1, F5, F9, F91, F92

Low Temperature Steel: ASTM A352 LCA, LCB, LCC, LC1, LC2, LC2-1, LC3, LC4, LC9, CA6NM
