Product Overview

Description

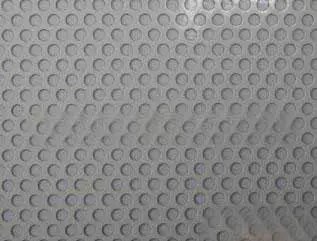

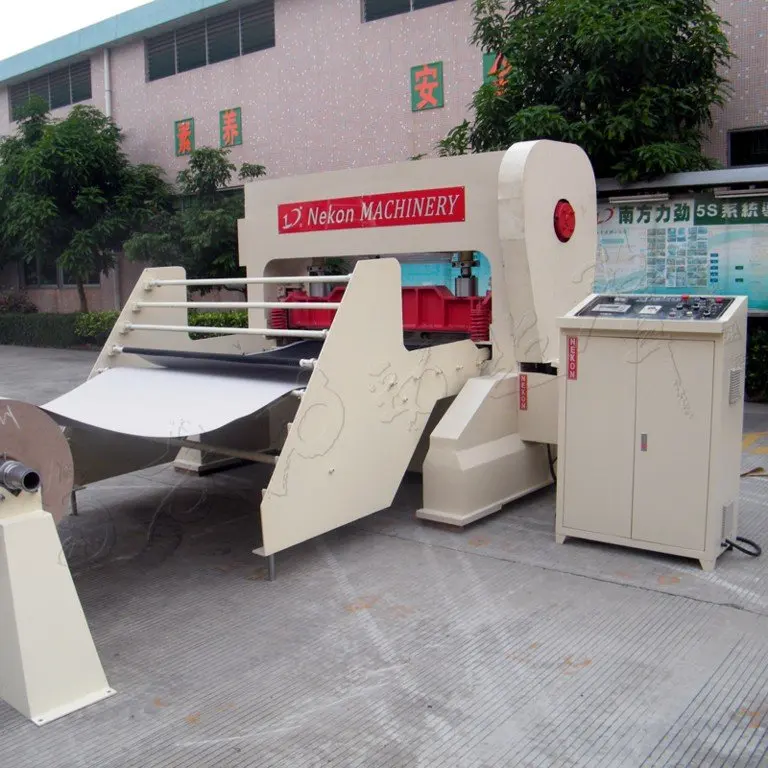

South Nekon mechanically leather punching machines(Leather Perforating Machine) is called one way vision mesh punching machine(leather holes punching machines ) for shourt, mechanically leather punching machine is mechanically punching, which uses bent axle revolving to achieve loop movement, and punching the holes on leather, cloth, paper, foam, thin metal, PVC and other thin films.(samples following):

Fabric leather EVA thin metal perforation machine punching machineTechnical Data

Model  : NK-CK155
Supply and voltage: 380V 50-60HZ
Height of moulds :25mm
Ram pressure :120 tons
Air pressure: 6kg/cm2
Weight :7600KG
Productivity :2—8m/min
Rated power :18KW
Machine size: 3220*1950*2000 mm
Paper shelf size :2400*300*850mm
Feeding shelf size: 1950*1850*1450mm
Electricity box size :850*500*1250mm
Rewinding shelf size :2350*1850*1150mm
Power of main motor: 11KW
Power of rewinding electrical machine: 750W*5(pcs)
Paper shelf cylinder diameter :80mm
The waste of electricity : 8-10kw/hour
The biggest diameter of paper :1400mm
The effective working width :1.6m
Tolerance within :1 mm
Max thickness that can punch: better less than 10 mm or 20 mm (There are two kinds)
