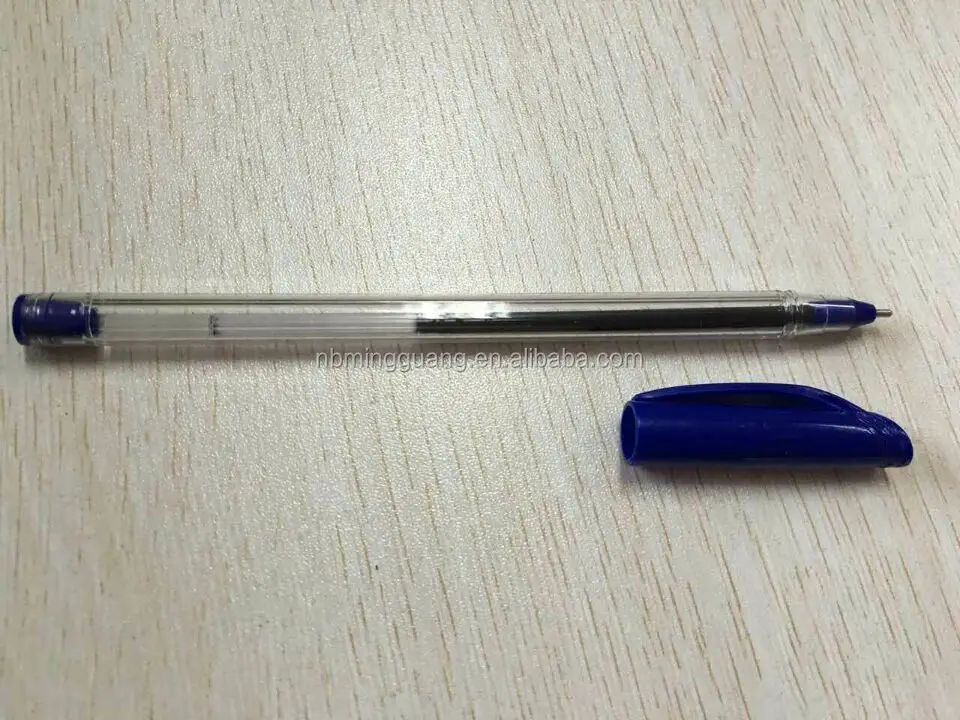

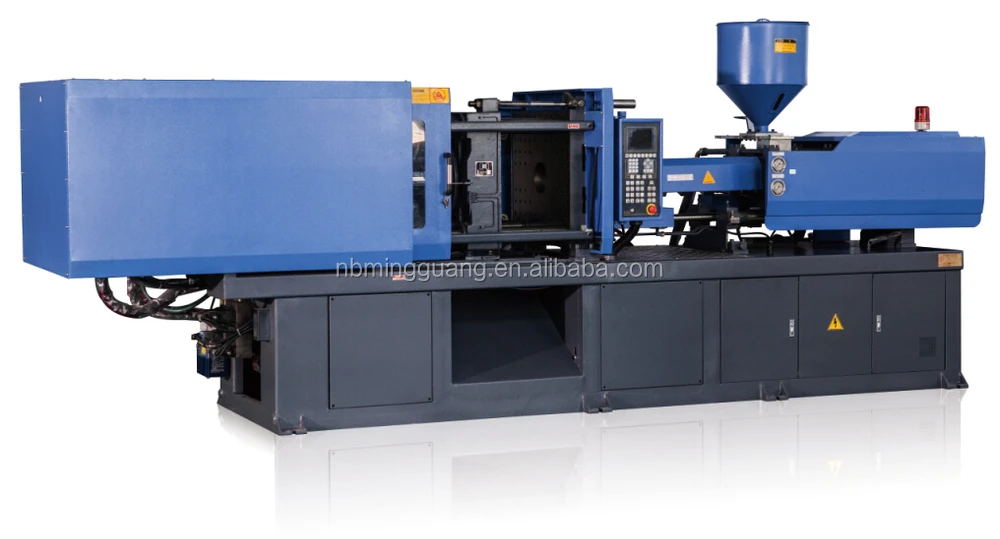

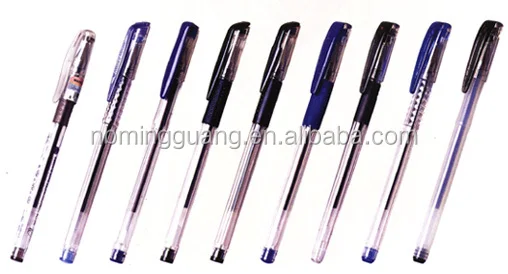

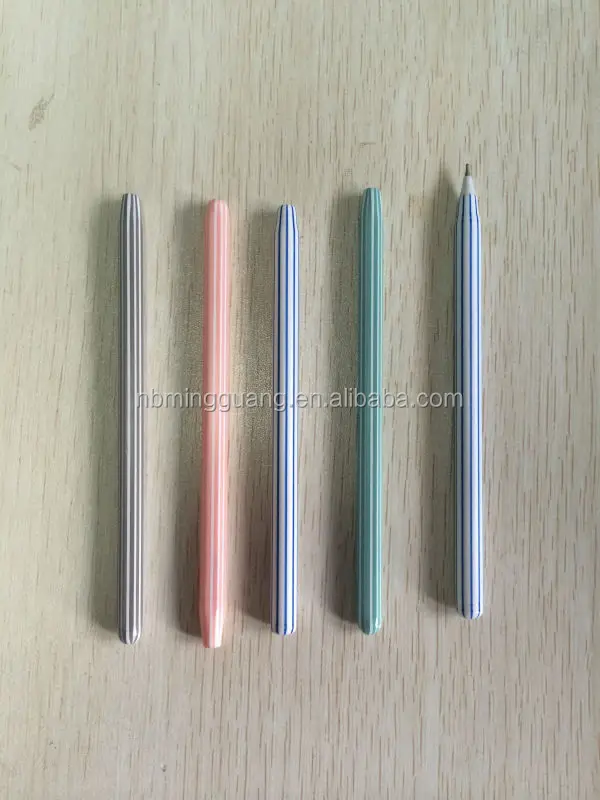

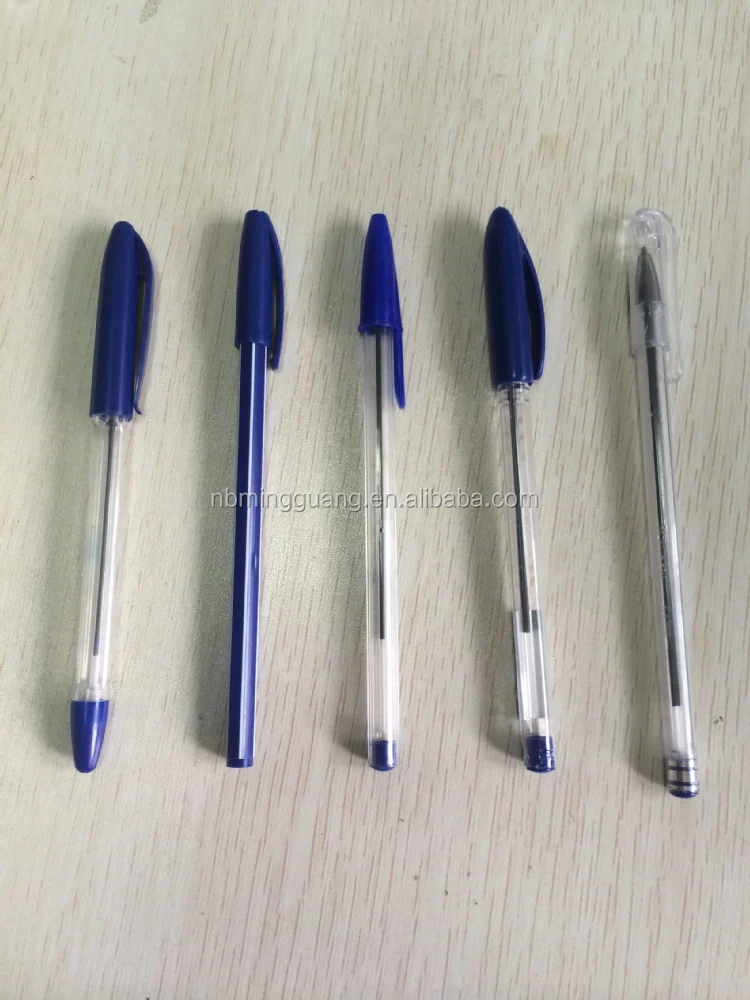

128ton ballpoint pen making Injection Moulding Machine
- Category: >>>
- Supplier: Ningbo Mingguang Weiye Machinery Co. Ltd. [Zhejiang China]Ningbo
Share on (265604042):
Product Overview
Description
NINGBO MINGGUANG MACHINERY CO.,LTD
WE COULD PRODUCE ALL KINDS OF PLASTIC INJECTION MOLDING MACHINE.
UNTIL NOW WE HAVE EXPORTED MANY MACHINES TO MANY COUNTRIES.
50ton -2000ton. PET SPECIAL PREFORM MACHINE.
HIGH SPEED INJECTION MOLDING MACHINE
SERVO MORTOR MACHINERY.
MOULDS.
IF YOU NEED ANY KINDS OF MACHINERY. KINDLY PLEASE CONTACT WITH US.
THANKS!
Specification Table | XY1280 |
| |||
A | B | C |
| ||
Injection Unit | Screw Diameter (mm) |
| 42 | 45 |
|
Screw L/D Ratio (L/D) |
| 20 | 18.5 |
| |
Shot Size(Theoretical) (cm³) |
| 221 | 256 |
| |
Injection Weight ( g) |
| 205 | 238 |
| |
Injection Rate (g/s) |
| 110 | 120 |
| |
Plasticizing Capacity (g/s) |
| 19.5 | 23 |
| |
Injection Pressure (Mpa) |
| 204 | 167 |
| |
Screw Speed (rpm) | 220 |
| |||
Clamping Unit
| Clamping Force (KN) | 1280 |
| ||
Toggle Stroke ( mm) | 360 | ||||
Space Between Tie-Bars (mm) | 415*375 |
| |||
Max.Mould Height (mm) | 400 | ||||
Min. Mould Height (mm) | 150 | ||||
Ejector Stroke (mm) | 120 | ||||
Ejector Tonnage (KN) | 40 | ||||
Other
| Max.Pump Pressure (Mpa) | 16 | |||
Pump Motor Power (KW) | 11 | ||||
Heating Power (KW) | 6.3 | ||||
Machine Dimensions(LxWxH) (m) | 4.4*1.36*1.8 | ||||
Machine Weight(Approximate ) (t ) | 3.8 | ||||
