Двойной воздушный цилиндр с двумя стержнями серии TN, Двойное действие с пневматическим цилиндром магнитного типа
- Category: Pneumatic Cylinders >>>
- Supplier: Ningbo Airtop Pneumatic Hydraulic Co. Ltd.
Share on (265865001):
Product Overview
Description
Product Description
TN Series Double Shaft Dual Rod Air Cylinder Double Acting With Magnet Type Pneumatic Cylinder
Product Feature:
1. The bore size of TN series dual rod cylinder is from φ10 to φ32mm.
2. Double piston rods, twice the thrust, provide high resistance to bending and torsion.
3. Embedded installation and fixing type saves the mounting space.
4. There are mounting holes on three sides, which is convenient for multi-position mounting.
5. This cylinder is with magnet type.
Specification:
Working Pressure | 01 ~ 0.9 MPa | ||
Proof Pressure | 1.35 MPa | ||
Working Temperature | 0 ~ +70℃ | ||
Speed Range | 100 ~ 500 mm/s | ||
Adjustable Stroke | -10 ~ 0 mm | ||
Stroke Tolerance (mm) | +1.0 0 | ||
Cushion Type | Rubber Bumper | ||
Non-rotating Accuracy | ± 0.4° | ± 0.3° | |
Port Size | M5X0.8 | G1/8 | |
Stroke:
Bore Size (mm) | Standard Stroke (mm) | Max. Stroke | Allowed Stroke |
10 | 10, 20, 30, 40, 50, 60, 70 | 70 | 100 |
16 | 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 125, 150 | 150 | 200 |
20 | 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 125, 150 | 150 | 200 |
25 | 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 125, 150 | 150 | 200 |
32 | 10, 20, 30, 40, 50, 60, 70, 80, 90, 100, 125, 150 | 150 | 200 |

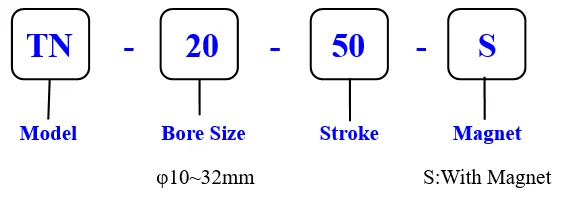

How to order ?

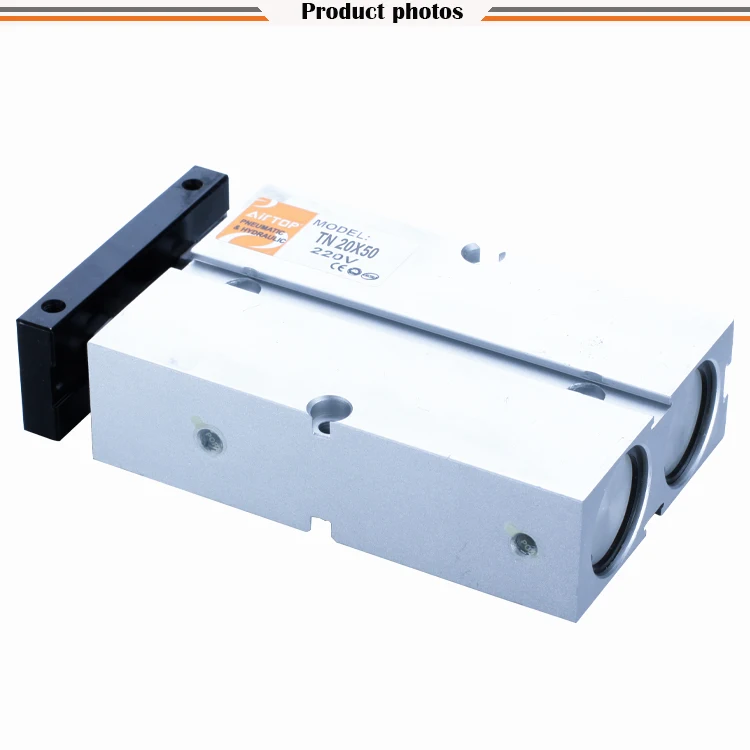

Product Photos
More products
Company Information
Packaging & Shipping
Trade Terms:
- Payment: T/T, L/C,Western Union: 30% deposits, 70% balance before delivery
- Delivery time: Standard samples: 5-7 days, customized samples: 10-15 days,bulk prodution depends on the quantity
Why Choose us?
Best Quality & Best Service with Competitive price.
- Alibaba Assessed 7 years Gold Supplier.
- We have ISO9001:2000 Quality System and CE Certifications ensure every component to be precise, accurate and durable.
- We have imported advanced CNC machines from Germany and Japan and we also have die-casting machines, injection machines, advanced computer testing machines.
- AirTOP has developed a complete sales network and after-sales services and has steady customer groups in the international market. AirTOP pneumatic products are favored especially by customers in Europe, North and South America, the Middle East and Southeast Asia.
