ampoule bottle/syringes bottle/infusion bottle making Machine
- Category: >>>
- Supplier: Zhejiang Keli Plastic Machinery Co. Ltd.
Share on (266330273):
Product Overview
Description
Product Description
one step injection blow molding machine for plastic bottles.
It is suitable for plastic,such as PP.PE.PS.ABS.
producing plastic containers and bottles in all shapes.
producing plastic containers and bottles in all shapes.
Injection blow molding machine:
Full-Automatic PP,PS,PE,ABS Bottle injection Blow molding Machine.
producing plastic containers and bottles in all shapes.
producing plastic containers and bottles in all shapes.
Specification
Keli injection blow molding Machine use famous brand hydraulic,electrical,pneumatic parts: | ||
Yuken---Atos---Rexroth | ||
ABB---Omron---Schneider---Techmation---B & R | ||
Festo-- | ||
Injection system | unit | parameter |
Dia.of Screw | mm | 45 |
Injection weight | g | 160 |
Clamping system | ||
Injection clamping force | kn | 500 |
Max platen size of mould(LXW) | mm | 480X370 |
Min mould thickness | mm | 240 |
Product dimension range | ||
Range of formability product | ml | 2-750 |
Height of formability product | mm | ≤210 |
Dia.of formability product | mm | ≤100 |
Other | ||
Total power | kw | 44.5 |
Operating power | 34-48% | |
Overall dimension(LXWXH) | mm | 3850X1550X1950 |
Keli products range:
one step injection blow molding machine,one step injection stretch blow molding machine,injection blow mould,injection blow mold,plastic cap mould for PP,PE,PS,ABS,PET cosmetic,pharmaceutical and food bottle,jar packaging.
Company Profie
Zhejiang keli plastic machinery co.,ltd was established in 1999,keli is a professional and leading manufacturer only focusing on one step injection blow molding machine (IBM),
one step injection stretch blow molding machine(ISBM) and related injection blow mould,injection stretch blow mould for
pharmaceutical bottle,cosmetic bottle and food bottle packaging industry.Till now we have more than 20 years experience.
one step injection stretch blow molding machine(ISBM) and related injection blow mould,injection stretch blow mould for
pharmaceutical bottle,cosmetic bottle and food bottle packaging industry.Till now we have more than 20 years experience.
The self-research SZCX series injection blow molding machine integrates injection molding and blow molding in one machine,won torch project 2010.It has self-intellectual properies,been authorized many patents for invention.the technical level is on the top in china in the field. Our machines have exported to many countries,like America,Canada,uk,Germany,Russia,Brazil,Turkey,Malaysia,Mexico,philippines,Indonesia,india,Vitenam and Egypt.etc.
Packing & Delivery

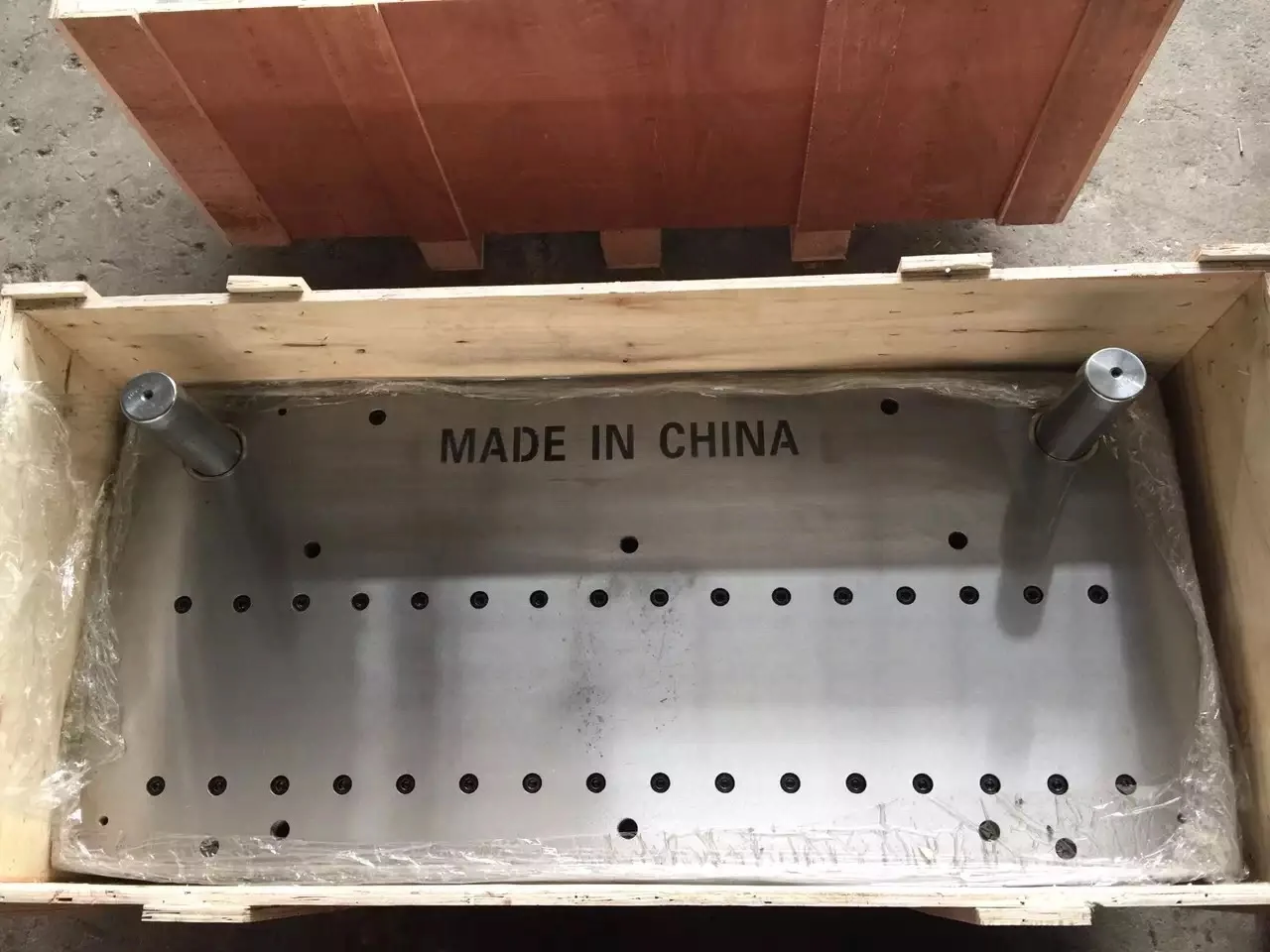

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.when we deliivery the machines,we use wound film to wrap it to keep it clean and secure.
FAQ
We available SZCX130/30,SZCX160/45,SZCX250/60,SZCX160/50X,SZCX300/70X,SZCX700/135X model for your choice.Model with X is specially for european market,and favored by most of customers,because all hydraulic parts are postioned above the molding area to avoid oilleak into molding area to contaminate the plastic bottles.Pls more details,pls contact me:KATE MEI.
Wechat:008613806593280.
Mobil:008613806593280.
Email:mhl/tzkeli.com.cn
Wechat:008613806593280.
Mobil:008613806593280.
Email:mhl/tzkeli.com.cn
