Product Overview

Description

Product name:

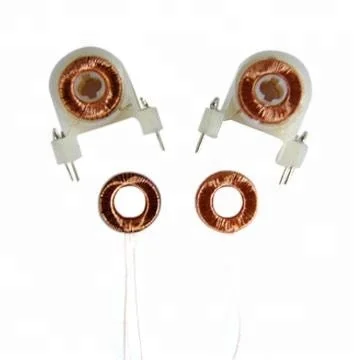

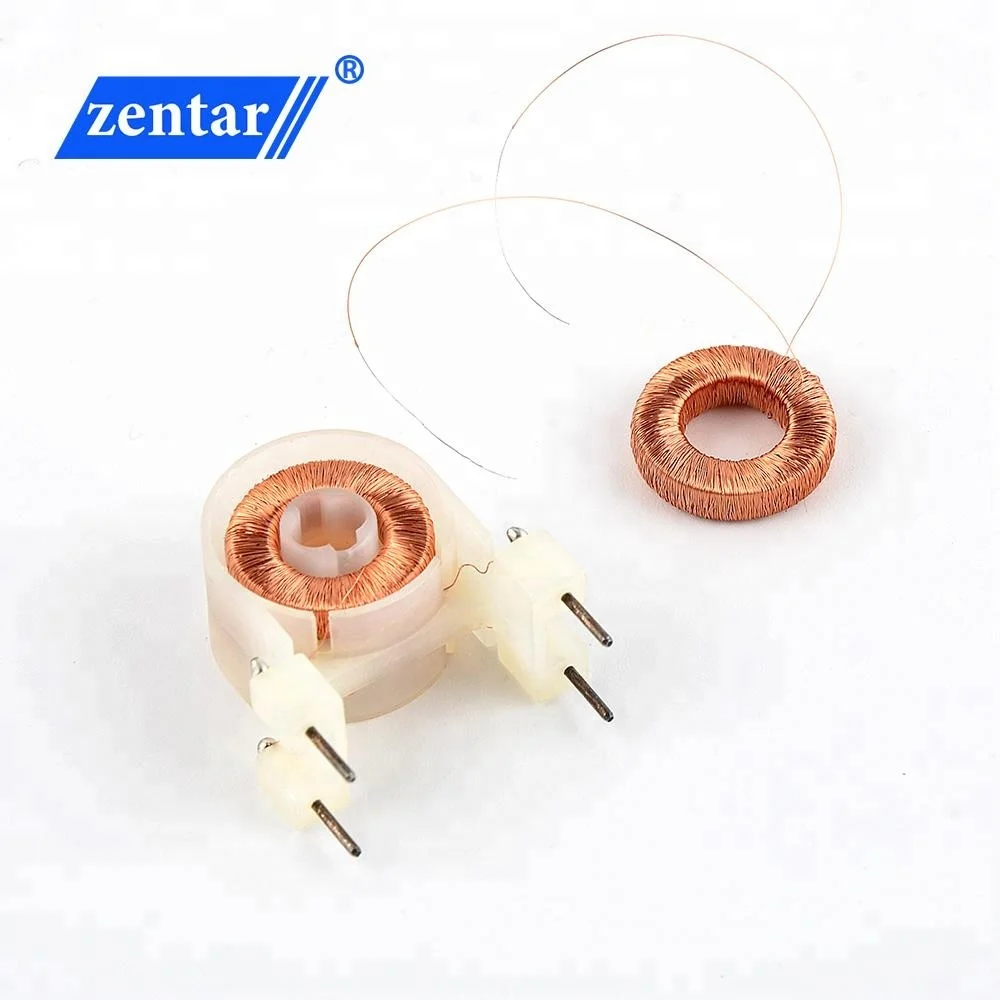

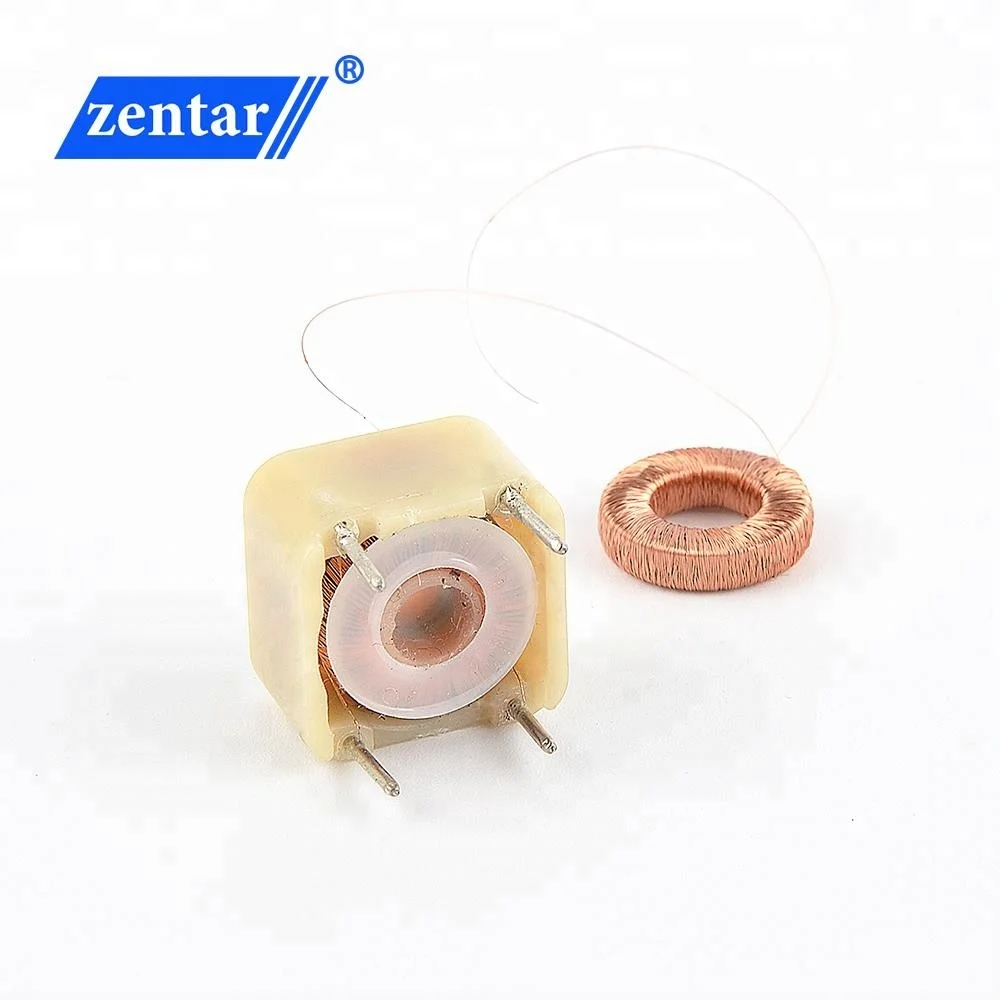

Zentar ZCT101,GNT101 GFCI Magnet Soft Iron Core for GFCI

The core with winding(800 turns 38AWG) could meet the below requirement .
Test condition Iin=5mA F=50Hz Rl=1KΩ
Variety Ratio of output voltage≤15% at -35 or 80 to that at ambient temperatuer 25.
Over leakage charactersticsVariety ratio of Vo≤10% before toafter magnetization
at DC 20AT 10mS (3 times).



APPLICATIONS

-Residual current circuit breaker

-Earth Leakage protection switch

-Leakage circuit protection Breaker

-Leakage circuit protection plug (Appliance Leakage Circuit Interrupter -ALCI)
