bottle/jar injection blowing molding mould for jomar IBM machine
- Category: >>>
- Supplier: Zhejiang Keli Plastic Machinery Co. Ltd.
Share on (267446620):
Product Overview
Description
Plastic liquid bottle injection blow mold for injection blow molding machine

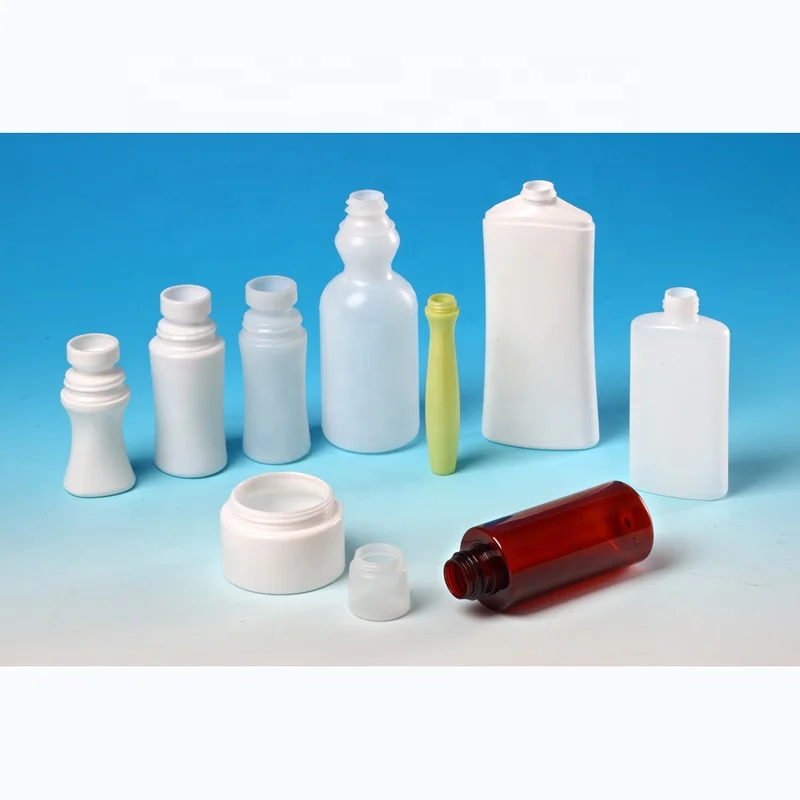

Keli can do differernt bottle mold in all shapes
Specification
ITEM | MATERIAL | HARDNESS |
Injection cavity | 3Cr13 | HRC45-48 |
Blow cavity | 3Cr13 | HRC45-48 |
Injection neck ring | 3Cr13 | HRC45-48 |
Blow neck ring | 3Cr13 | HRC45-48 |
Core rods | 3Cr13 | HRC42-45 |
Face bar | Al 7075 | |
Mainfold | H13 | HRC30-32 |
Stripper plate | AI 6061 | |
Blow mold bottom plug | Brass/Steel | |
Die set | 45# Nickel plating | HRC26-28 |
Other small parts | 45# Nickel plating | HRC26-28 |
Keli manufactue injection and blow molding mold,PET bottle injection stretch blow mould , is not only speicial for Keli IBM and ISBM machine, but also can design and make the molds for Jomar,Uniloy, Novapax etc famous injection and blow molding all around the world.
The mold standard material we used is 3Cr13 stainless steel, but if the custom require the better quality, also can choose the material as 2083 from German, SKD61 from Japan or 2316 from USA.
You must will be satisfing our best designing and sale service.
The mold standard material we used is 3Cr13 stainless steel, but if the custom require the better quality, also can choose the material as 2083 from German, SKD61 from Japan or 2316 from USA.
You must will be satisfing our best designing and sale service.
Company Profie
Our showroom
Packing & Delivery

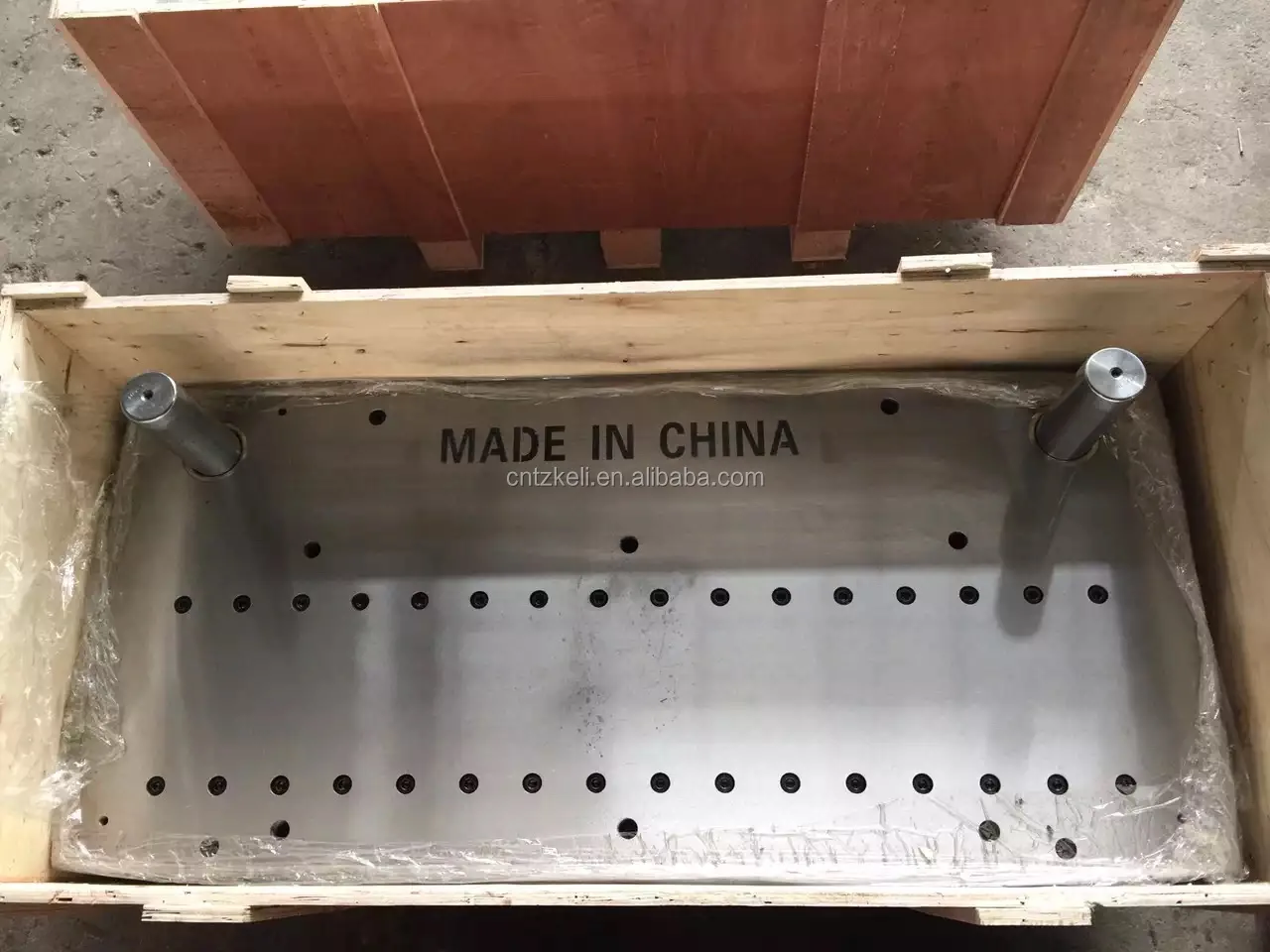

Packing with wood cases to protect the molds
FAQ
We are available 15A 50A 70A SZCX130/30,SZCX160/45,SZCX250/60,SZCX160/45X,SZCX300/70X,SZCX700/135X mold for your choice.if you have drawing for us is appreciated.OEM is ok for us.
Pls more details,pls contact me:KATE MEI
Wechat:008613806593280.
Mobil:008613806593280
Email:mhl@tzkeli.com.cn
Wechat:008613806593280.
Mobil:008613806593280
Email:mhl@tzkeli.com.cn
