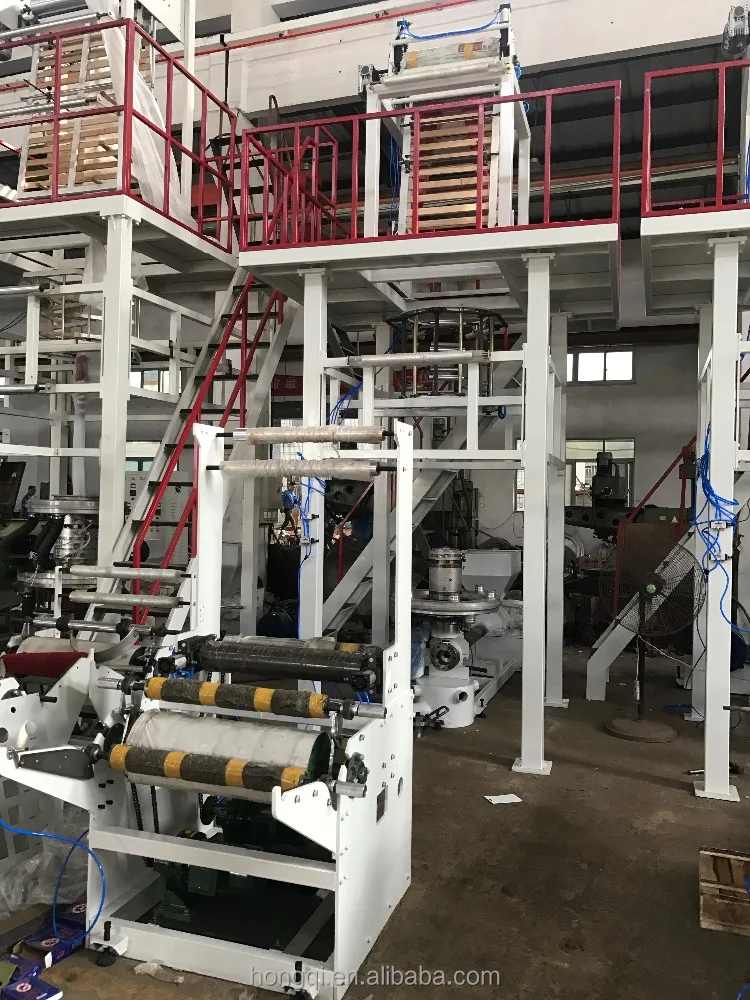

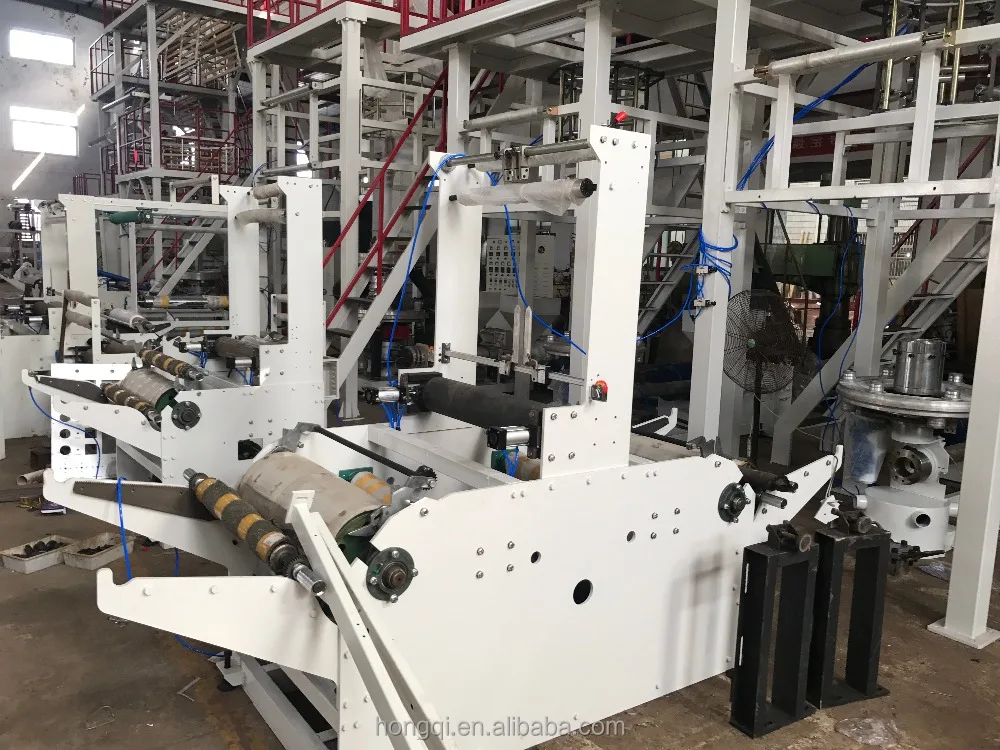

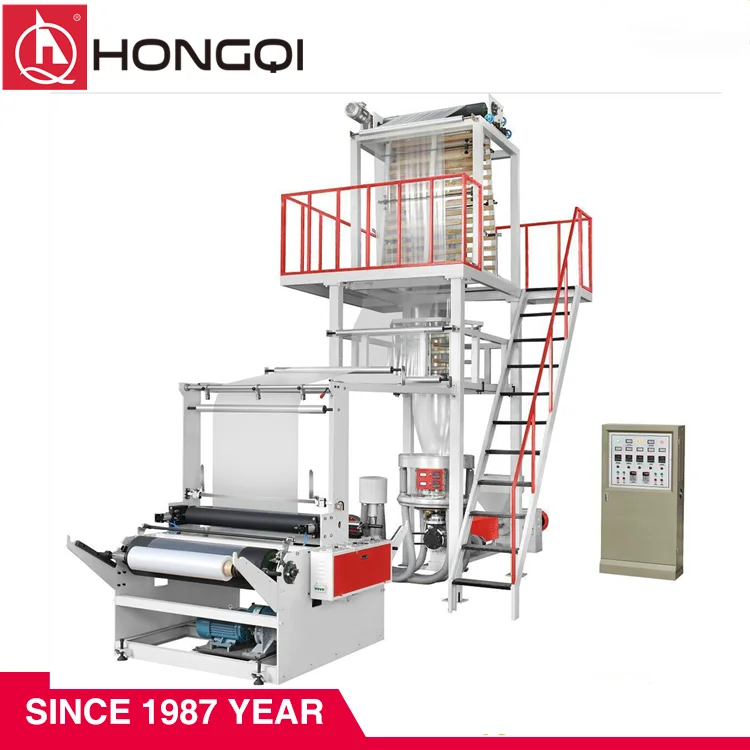

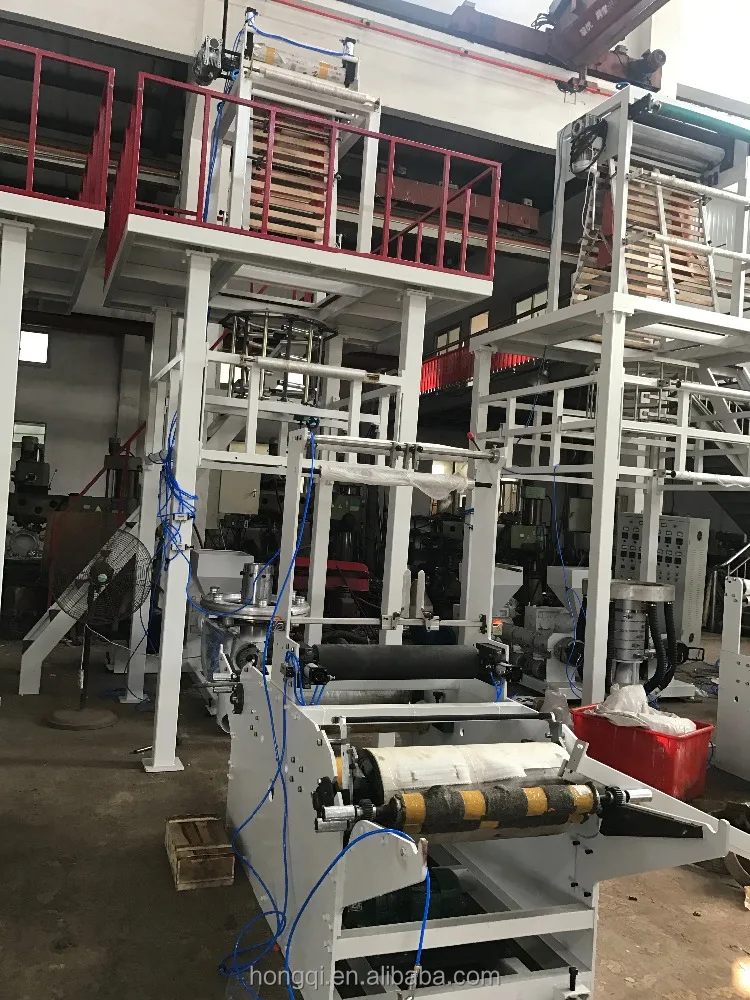

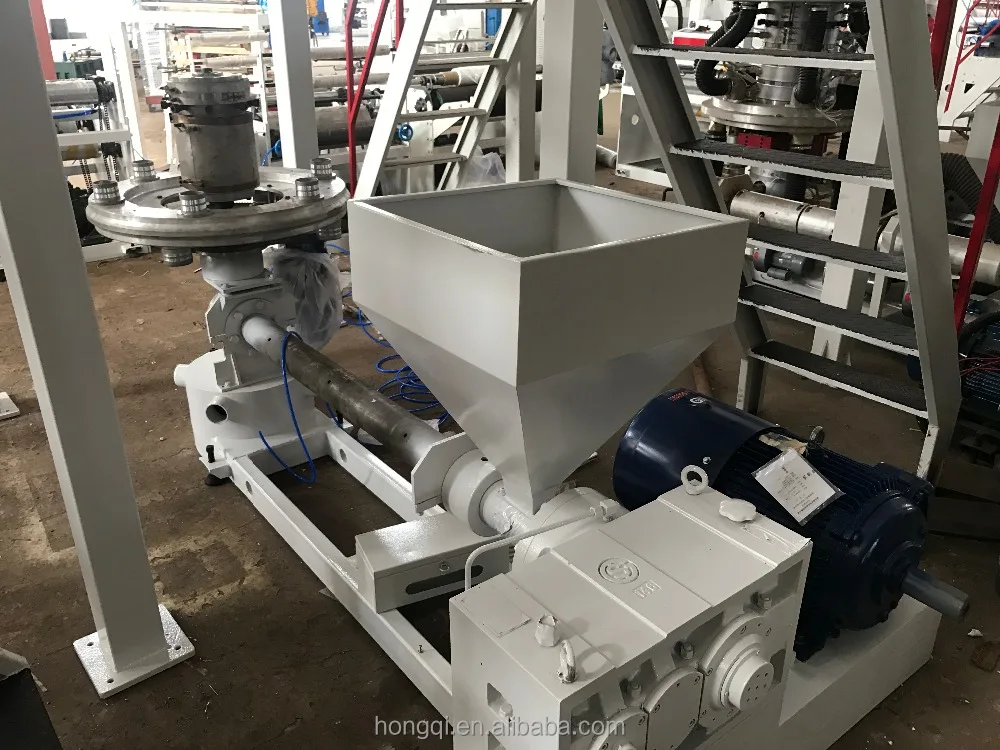

High speed plastic pe blown film machine
- Category: >>>
- Supplier: Ruian Hongqi Plastic And Packing Machinery Co. Ltd.
Share on (267896846):
Product Overview
Description
2020CE, ISO certified High speed plastic pe blown film extrusion machine

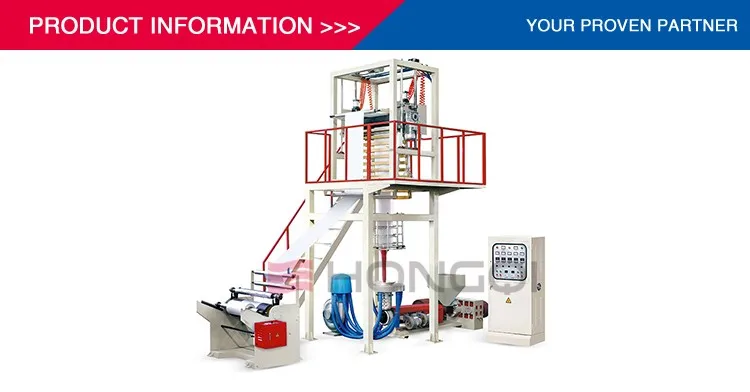

Product Description
The extruder, cylinder and screw rods of the machine unit are all made from high-quality alloy steel through nitriding and
precision machining, so as to ensure optimal hardness and corrosion resistance, and the output is high and the plasticizing
is good by adopting screw rods which are specially designed. The high-speed film blowing machine unit is suitable for
blowing various plastic films such as low-density polyethylene (LDPE), high-density polyethylene (HDPE) and linear
low-density polyethylene (LLDPE). The plastic films can be widely used for civil and industrial packaging such as food,
apparel, trash bags and vest bags.
| Main Technical Variables | |||
| Model | FB-D- 600 | FB-D- 800 | FB-D- 1000 |
| Screw diameter(mm) | Φ50mm | Φ55mm | Φ60mm |
| Screw L/D Ratio | L/D30:1 | L/D30:1 | L/D30:1 |
| Screw rotation | 10-120r/min | 10-120r/min | 10-120r/min |
| Power of main motor | 18.5kw | 22kw | 30kw |
| Max.Extrude Output | 60kg/h | 80kg/h | 100kg/h |
| Single-face Thickess of film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Max Film Folding Dia. | 600mm | 800mm | 1000mm |
| Total Power | 28kw | 36kw | 42kw |
| Machine of weight | 2600kg | 3000kg | 3500kg |
| Overall Dimension(L×W×H) | 4600×2600×4000mm | 4800×2800×4300mm | 5000×3000×4800mm |
| Design and specifications are subject to change without notice | |||
Packaging & Shipping
Our Services
We guarantee fix for the equipment for 1 Year and only change spare parts which belong to the bad
quality of equipment in one year(except man-made causation)
Debugging and Installation:Seller delegates engineers to RECIPIENT to make a supervision of correct
installation, commissioning and provide training by asking of Buyer. Buyer will pay for round trip tickets,
habitations, food for Seller’s engineers,and USD100 per day for subsidy.
Company Information

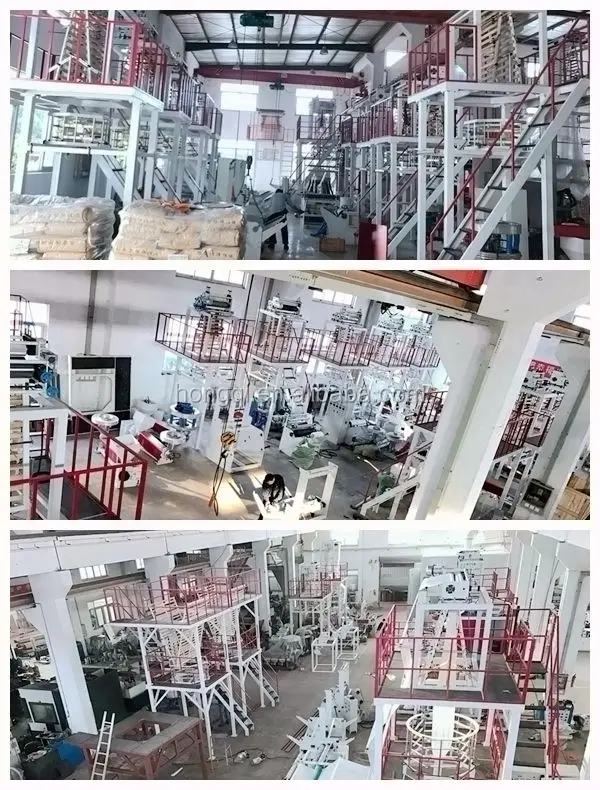

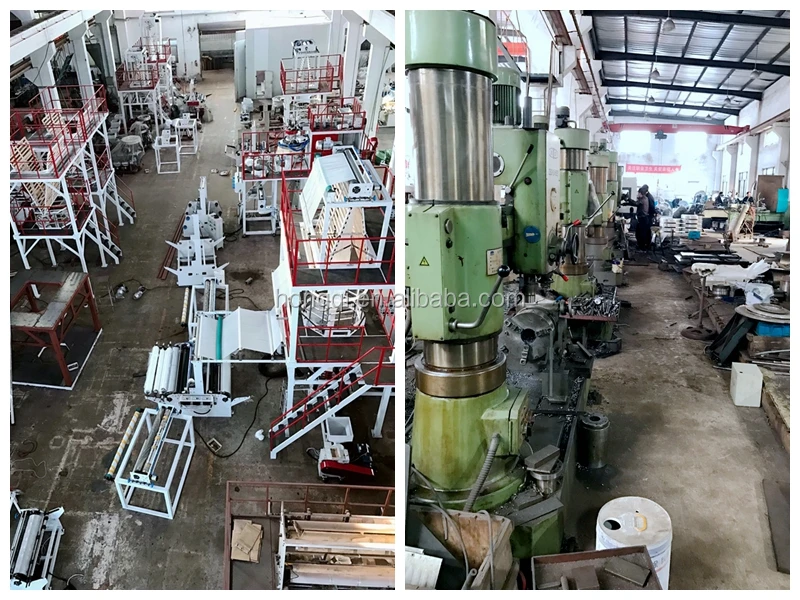

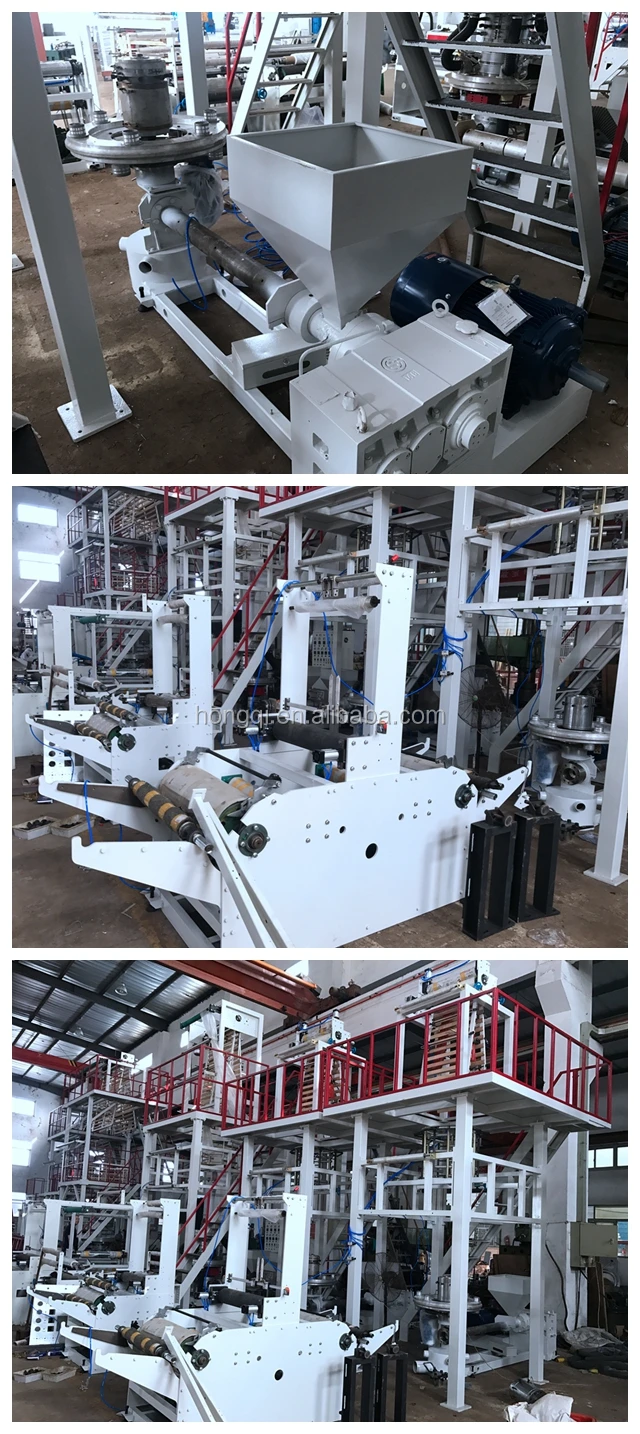

workshop
FAQ
2017 CE, ISO certified High speed plastic pe blown film extrusion machine
1. Q: Are you a factory or trading company?
A: We are a factory
2. Q: What certificate do you have?
A: We have ISO9001, SGS, GB4455 and CE certificate.
3. Q: How dose your factory do regarding quality control?
A: We have a special QC department in charge of product's quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: What's the main market of your company?
A: we have customers all over the world.
6. Q: What is your delivery time?
A: Normally, It needs about 30 working days. The exact time depends on production management.
7. Q: Can we visit your machine operation in your factory?
A: We have own plastic making company, you can see the machine operation.
8. Q: Where is your factory located? How can we visit there?
A: Our factory located in dongshan economic Industry Zone, Ruian City, Zhejiang Province, CHina.
You can by air to Wenzhou Airport and by High-speed rain to Ruian Station.
