Cheapest manual hand pushed screed thermoplastic applicator hot melt lining road Lane marking machine for city roads
- Category: Road Marking Machines >>>
- Supplier: Shenyang Roadnet Highway Technology Co. Ltd.
Share on (267910403):
Product Overview
Description
Product Description

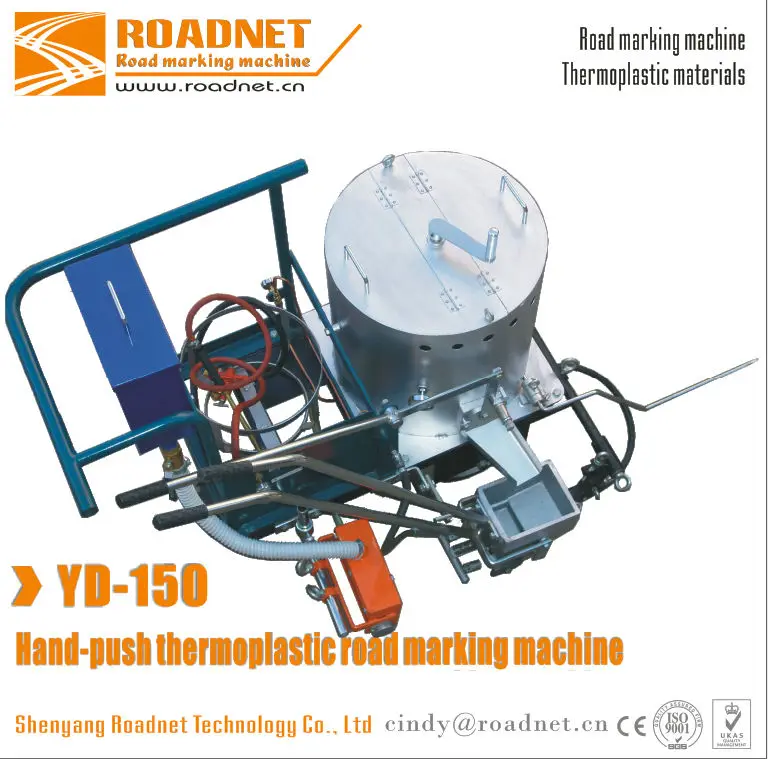

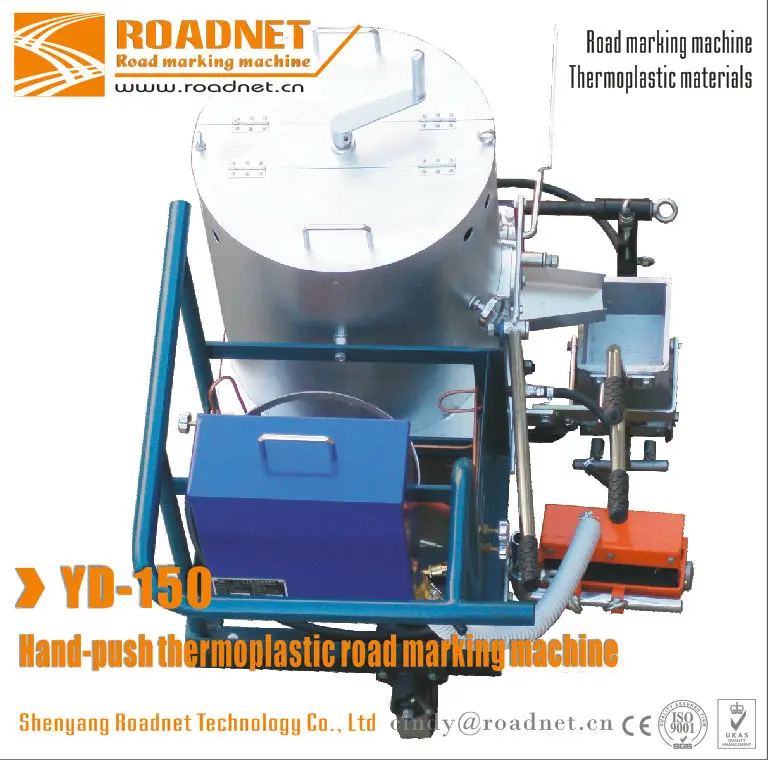

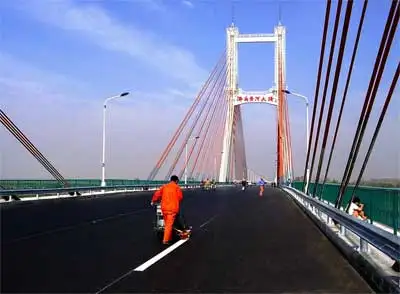

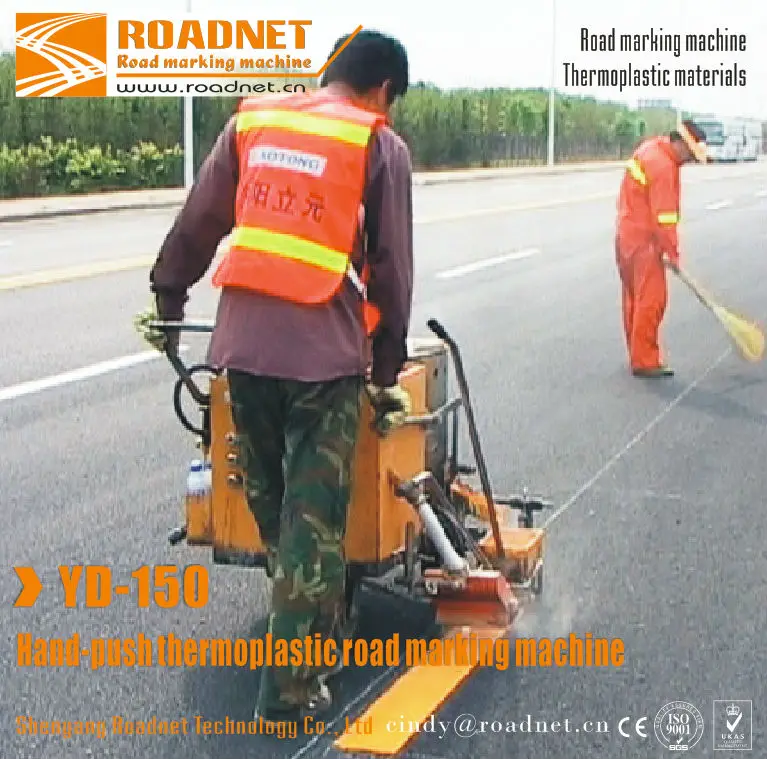

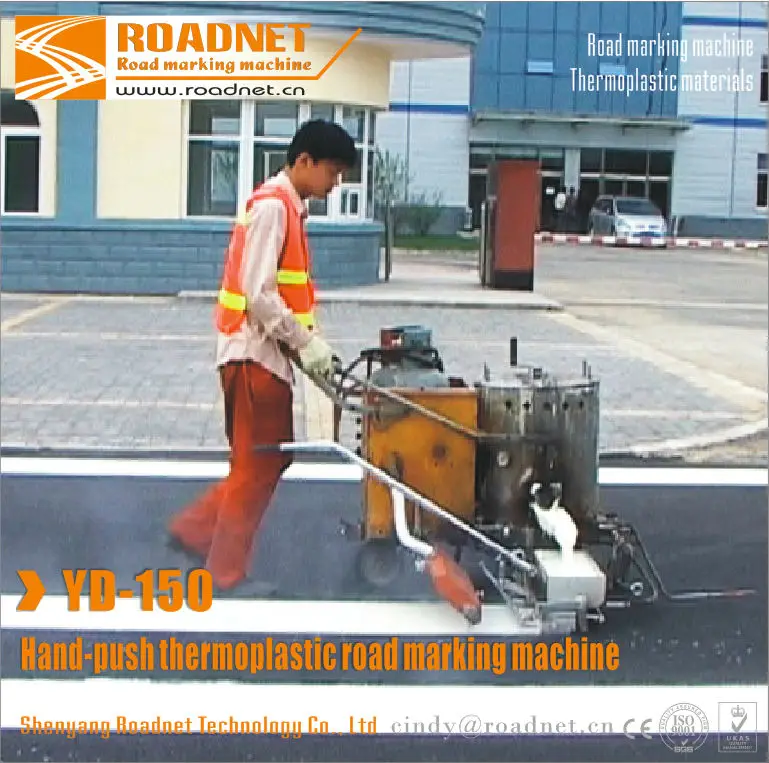

YD-150 Cheapest manual hand-pushed screed thermoplastic road marking machine for city roads, traffic line marking machine
YD150 is simple, cheap and effective, of lightweight, easy maintenance.
Main features:
1. double insulation tank, movable.
2. with plug-in manual mixer, movable and easy to clean-up.
3. with high-precision iron tank mechanism, screed-type structure. Alloy-steel grounded knife, eccentric interlink and movable design. It resists high temperature, anti-corrosion and not deformed.
4. with synchronized glass bead dispenser roller dispenser which designed to ensure uniformity spreading glass bead from walking speed.
Technical parameters:
Manual hand-pushed screed thermoplastic road marking machine for city roads
Dimension | 1260 × 880 × 1000mm |
Weight | 140 kgs |
Application Width | Standard: 150/200/300 mm Option: 100/400/450 mm |
Insulation tank capacity | 80 kgs |
Glass beads capacity | 10 kgs |
Application thickness | 1.0-2 .5 mm |
Heating fuel | petroleum liquefied gas |
liquefied petroleum gas tank | 15 kgs |
Application | screed-type |

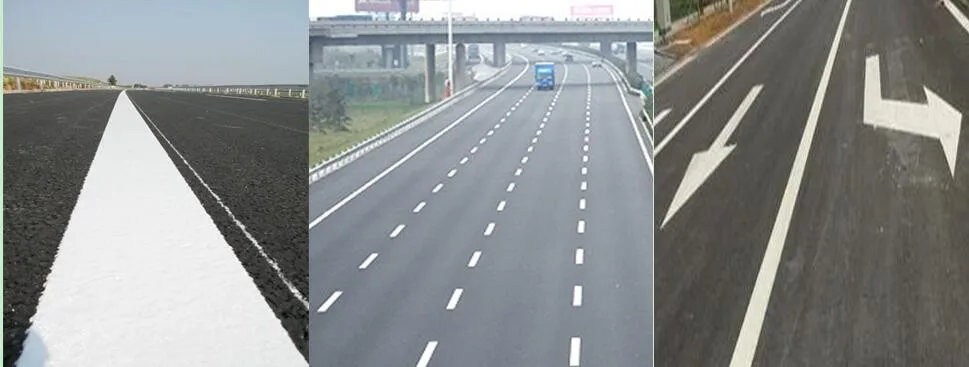

Line Type: flat lines, dotted lines, arrow lines
Packaging & Shipping
Packed in plywood case that offers full protection during long term shipment.
Our Services
1. 12 months warranty: Any parts damaged during the warranty period will be offered free of charge
2.Training overseas provieded
Certifications
FAQ
1. Q: Can this machine preheat the thermoplastic paint?
A: No. It needs to work with a preheater. The tank on the machine only
for preserving the heat of thermoplastic paint.
2. Q: Do you have thermoplastic road marking machine with preheater?
A: Yes, we have. It is model YD600 (single tank pre-heater)or YD2400
(single tank pre-heater), which is suitable for small line marking project.
For more details,pls check home page.
3.Q: Can I adjust the line thickness? And how?
A: Yes, it could be adjusted by edging knife and hanger. The normal line
thickness is 1.2-4 mm.
4.Q: How to mark lines in different width?
A:Change the marking hopper(buekct shoe), change line width. We have
varied sizes, from 50 mm to 450mm. Usually, the standard equipment is
150mm. The other size is optional. Also, we could produce special marking
hopper for you.
5. Q: What about the after-sale service?
A: We are responsible to provide technical advise in the machine's
whole shelf life. We help solving problems via whatsapp, skype,viber and
email by sending pictures and videos. and overseas traning provided.
6.Q: Could you produce customized machine?
A: Yes, we could. We are the manufacturer of thermoplastic road marking
machine in shenyang City.
7. What about the shipment?
A: It is on your choice. Usually, we recommend sea shipping which
provides reasonable prices. Also, for spare parts, it could be sent by
TNT,FEDX, DHL and other internatioanl express.
If you have other questions, please feel free to contact us!
