Gas infrared oven heater element for pizza oven HD262

Product Overview

Description



Product Name: Gas infrared oven heater element for pizza oven







---Now Haodong Technology is the first and only manufacture in China who apply rare-earth catalytic combustion technology in infrared burner&heater.



After coated with processed black rare-earth catalyst on the ceramic surface,the energy-transfer rate goes up greating, can save 10-20% energy than non-catalytic type.At the same time, it prolongs the use life of ceramic plate.











Specification and Models of Gas infrared oven heater element for pizza oven:



MODEL	Dimension	Weight	GasType	Heat Output		Consumption
	mm	kg		KW/h	Kcal/hr	NG(m3/h)	LPG(kg/h)

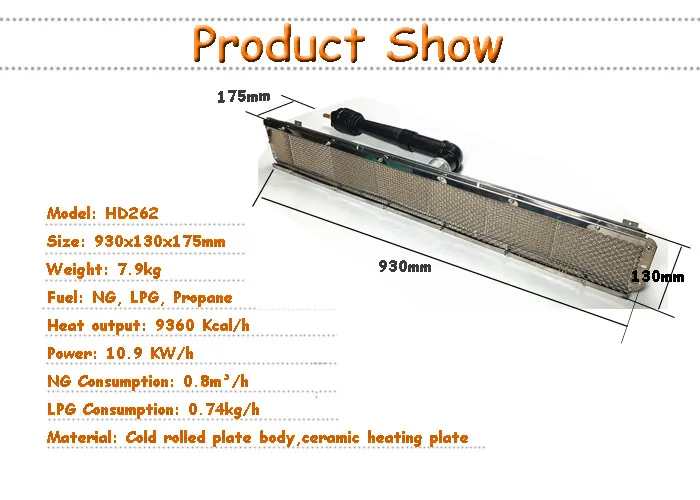

HD262	930*130*175	13	NG/LPG	10.9	9360	0.8	0.82





Item	Infrared gas burner HD262
Spare parts	Ignition pin, pulse igniter, solenoid valve
Gas type	LPG, natural gas
Heat transfer rate	>95%
High efficiency	Start work in 8 seconds
Use lifetime	>11000hrs, with right use, can use 3~7 years.
Technology	Rare-earth catalyst, save gas 20%
Smokeless & Flameless	CO,80ppm, NOx<10ppm, CHx<50ppm
Working pressure	NG:2000~5000pa; LPG:2800~5000pa

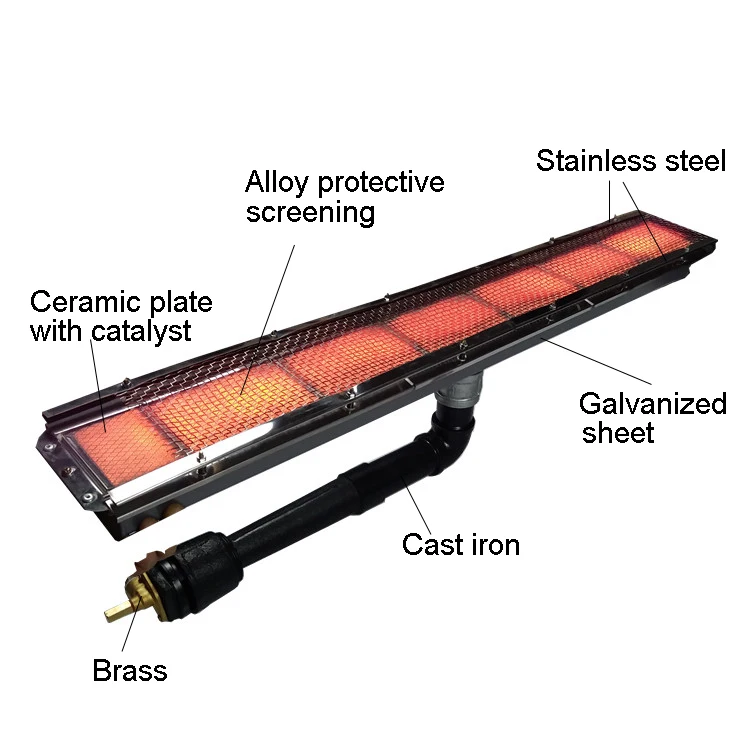

Material	Galvanized steel body, cast iron air damper, honeycomb ceramic plates with catalyst, brass nozzle
Usage	Industrial surface treatment;  Food baking; Latex/rubber glove drying; fiber/texitle drying; asphalt road drying.

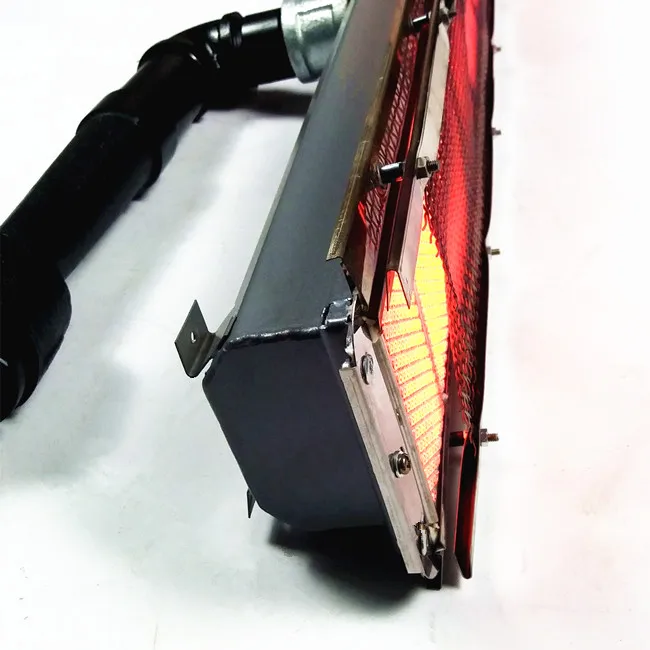

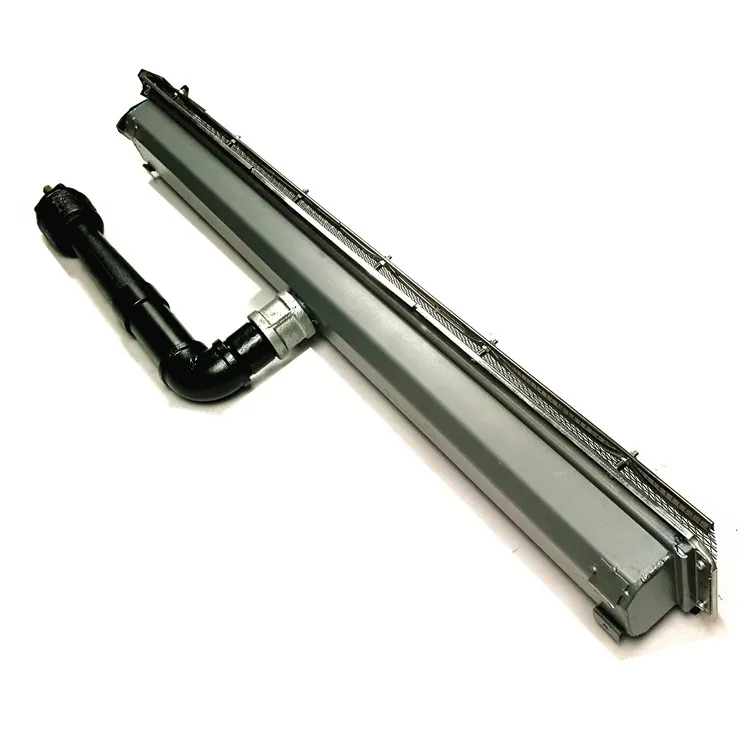

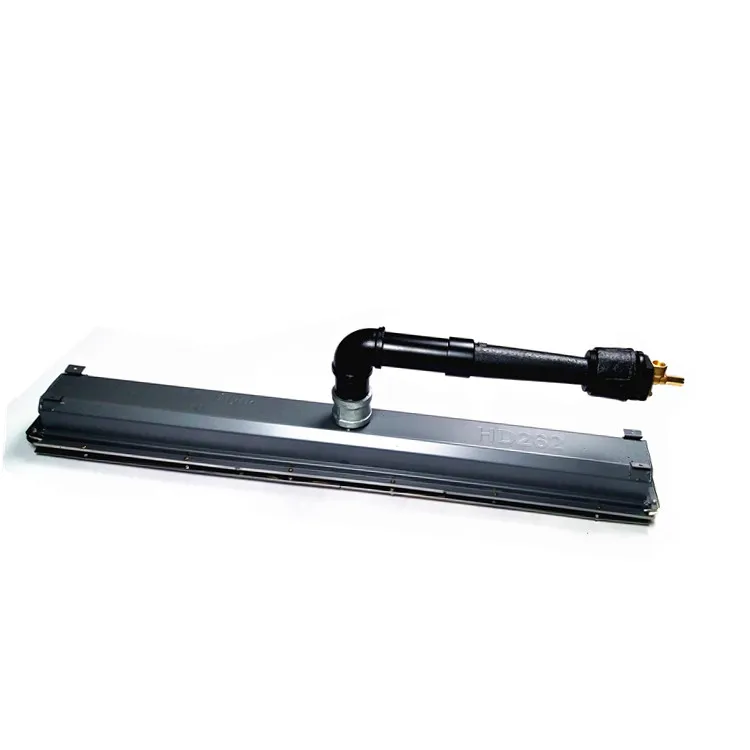

Detail photos -- Gas infrared oven heater element for pizza oven  - HD262





The use of technical parameters



Items	Technical parameters
Types	natural gas (NG),liquefied petroleum gas (LPG)
Light-off temperature	≤350
complete combustion temperature	≤380
Heat source temperature	around 850
Baking temperature range	30---550
Wavelength range	1.9m--15m
Furnance pressure natural	gas 150mmAq;liquefied petroleum gas 280mmAq









Comparison table for all kinds of energy consumption



Furnace type   Parameters	Electronic cooker	Oil furnace	Coal-fired furnace	Infrared catalytic heaters
Energy requirement	10,000Kcal	10,000Kcal	10,000Kcal	10,000Kcal
Temperature	180	180	180	180
Energy consumption	Electricity(15 kW/h)	Electricity (1Kw/h)+ diesel (2Kg)	Coal (10Kg)	LPG(0.9Kg)
Heating time	20 minutes	40 minutes	90 minutes	5-8 minutes









Application for Gas infrared oven heater element for pizza oven - HD262
