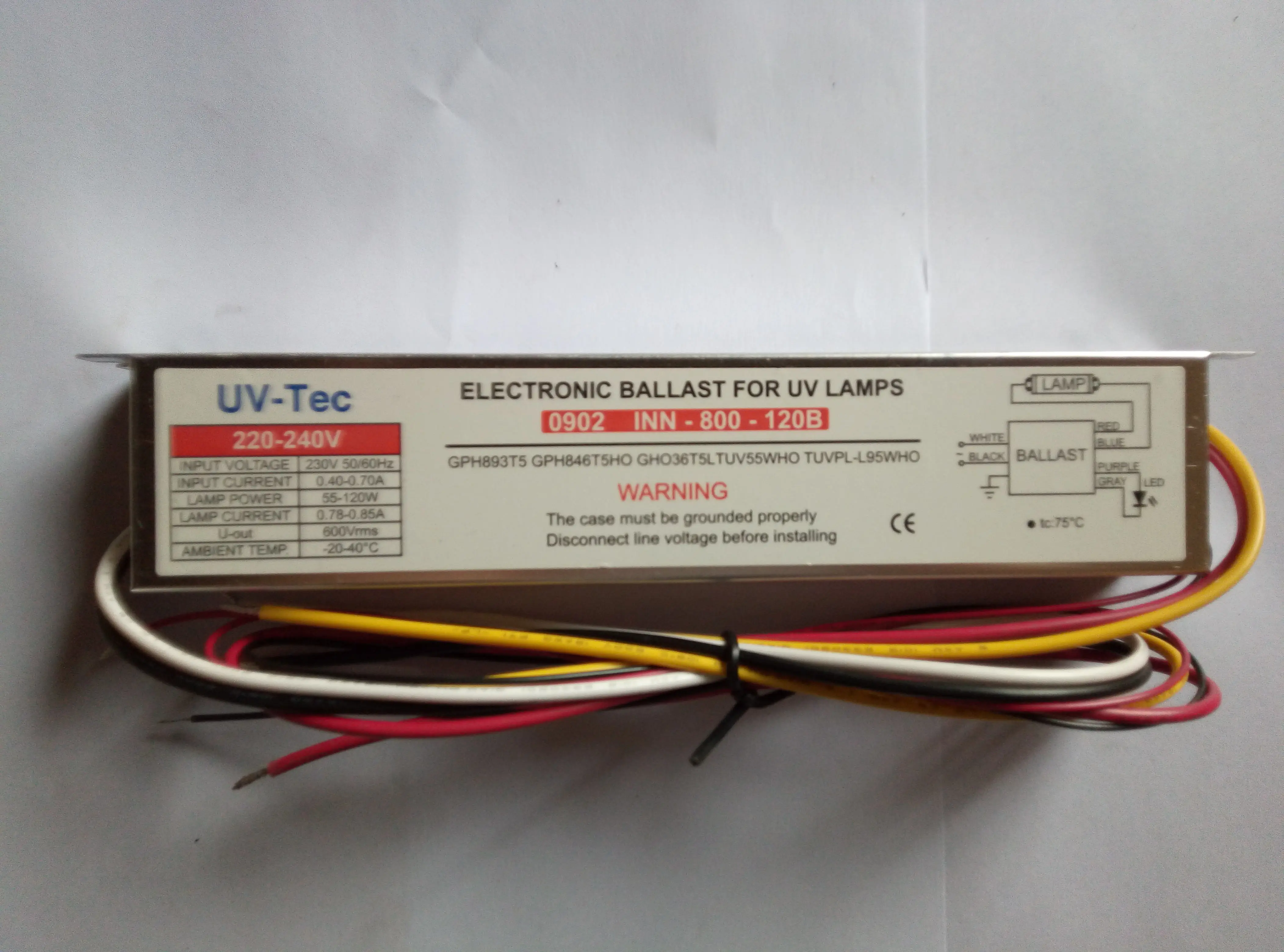

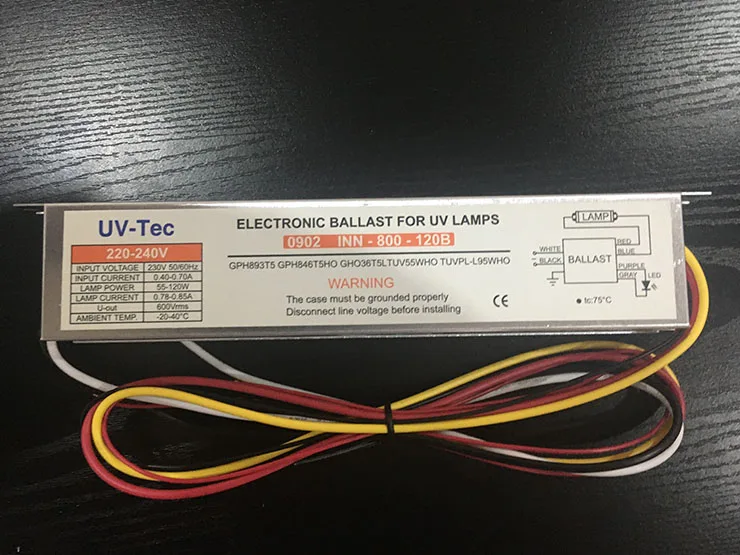

UV TCE lighting accessories Ballast INN 800 120B

Input characteristics

Rated input voltage: 230V

Rated power frequency: 50 ~ 60Hz

Input voltage range: 198v ~ 264v

Maximum input power: 100

Maximum input current: 0.8A

Input power factor PF: > 0.55

Overall efficiency η:> 90%

output characteristic

Load lamp: gho36t5l, gpho843t5l

TUV75W,GPH846T5HO

Output current: 0.75 ~ 0.85a

Start mode: preheating start, suitable for frequent start environment

Lamp status indication function: switching value, 5VDC output. The lamp is normal

Working output 5VDC voltage, can be external LED indicator, lamp out

Output 0vdc when off; The switch value can be connected to the remote device to reverse the current

Working state of feed lamp tube

Meet the following criteria:

Protection grade: IP65

UL935

Working conditions

Working environment temperature: - 15 ~ 40 ℃

product mix

American glue filling structure, power line length 430mm, output line and signal line

650mm long

Size: 215 * 44 * 26mm

Shell material: Aluminum

Precautions for use

The power supply must be cut off before installing and replacing the ballast;

packing:in order need safe we usually use cardboard and bubble film.

shipping;We usually ship by DHL UPS FEDEX EMS or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also choose

Timely reply,

timely delivery,

ensure product quality and quantity.

Provide after-sales service and samples

  my name is xiangxiang cui  from Shanghai Yitu Electronic Technology CO.,LTD ,
We are Philips (China) Special Lighting Agent Center in Shanghai supply any kinds of special lighting and accessory.Add:Room205 NO.188 changyi Road, Baoshan District, Shanghai, P.R. China, the company was founded in 2005,with 15 years of professional experience.
Main product: Philips UVC lamp(Air sterilization, water sterilization)UVB lamp(Psoriasis. Vitiligo and other skin diseases)UVA(catch insects nail painting ink curing) infrared  lamp(Physiotherapy, cosmetology, kitchen, animal husbandry and heating),plant lights(green plant Ornamental plants)and ballest.
