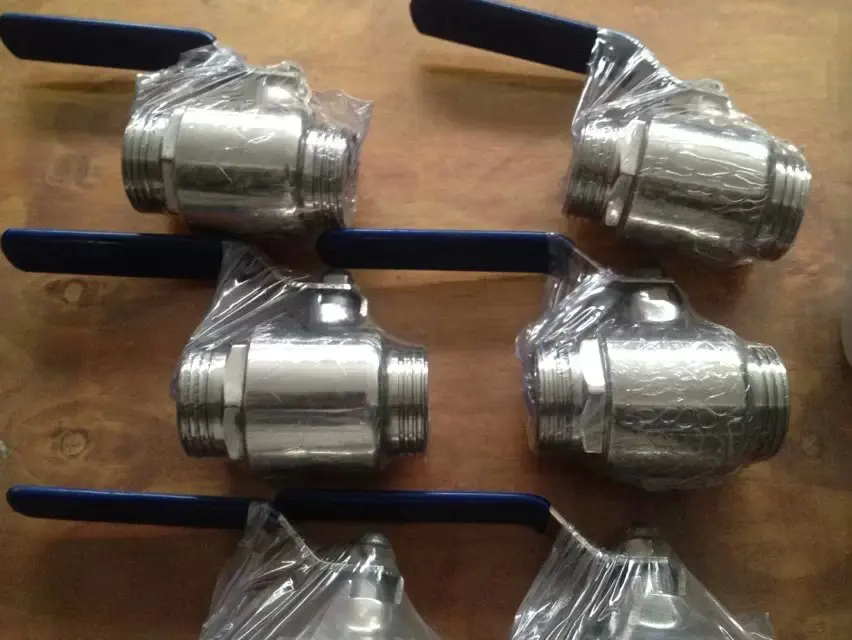

stainless steel 201 304 316 material casting 1pc type ball valve

Share on (268994569):


Price:

Quantity:


Product Overview

Description













































MaterialAISI304,AISI304L,AISI316,AISI316L
StandardsDIN,SMS,ISO,IDF,3A,RJT,DS,BS,BPE

constitute elements



one handle,one ball body with transfixion cavity, valve central spindle amd spindlle shaft seal.


Type

Weld/thread/clamped ball vavle


CertificateISO9001:2000
Applactationtransfer controlling the material, it extensively use to food, berverage processing  and pharmacy, chemical industry area.























































































Technical Data



Material


Contact with the product components


304L/316L(1.4306/1.4404) Forging


Can provide material inspection report


Material No contact with the product components


304/202(1.4301/202) Forging


Sealing Material


Standard


PTFE


Adopt import sealing materials, with all the seal material the FDA 117.2600


Option


EPDM/VMQ


Pressure


Pressure of Work


0~16 bar


Control air pressure


5~8 bar


Temperature


Working temperature


VMQ:(-50~+180℃) EPDM:(-20~+135℃)FPM:(-30~+230℃)


Sterilization temperature


150℃(MAX20min)


Surface treatment


Inside surface treatment


Ra>=0.4-0.8μm


Surface treatment


Ra>=0.8-1.6μm


Connection


The diameter welding


Welding mouth:DIN 11850-2with 11850-1/SMS/3A/ISO Series etc


Connection mode: welding, fast loading, male and female, flange, etc.


Pneumatic control


Pneumatic head and fixed bracket

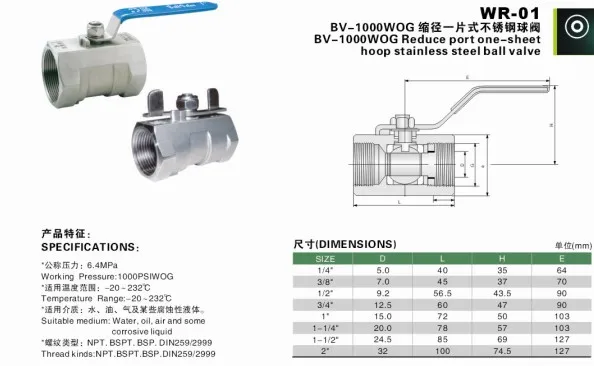

 1pc ball valve.jpg



































1. May I have free samples before ordering?




Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves








2. What's the payment term




For small orders, we accept PayPal, Western Union, T/T and Credit Card.


For mass orders, we accept T/T and L/C.








3. Can i have my own Logo on the product?




Yes, you can send us your drawing and we can make your logo.








4. Do you have any MOQ of your products?




We always have stock for valve








5. Do you accept no-standard products?




Sure, as soon as you could provide drawings or detail.
