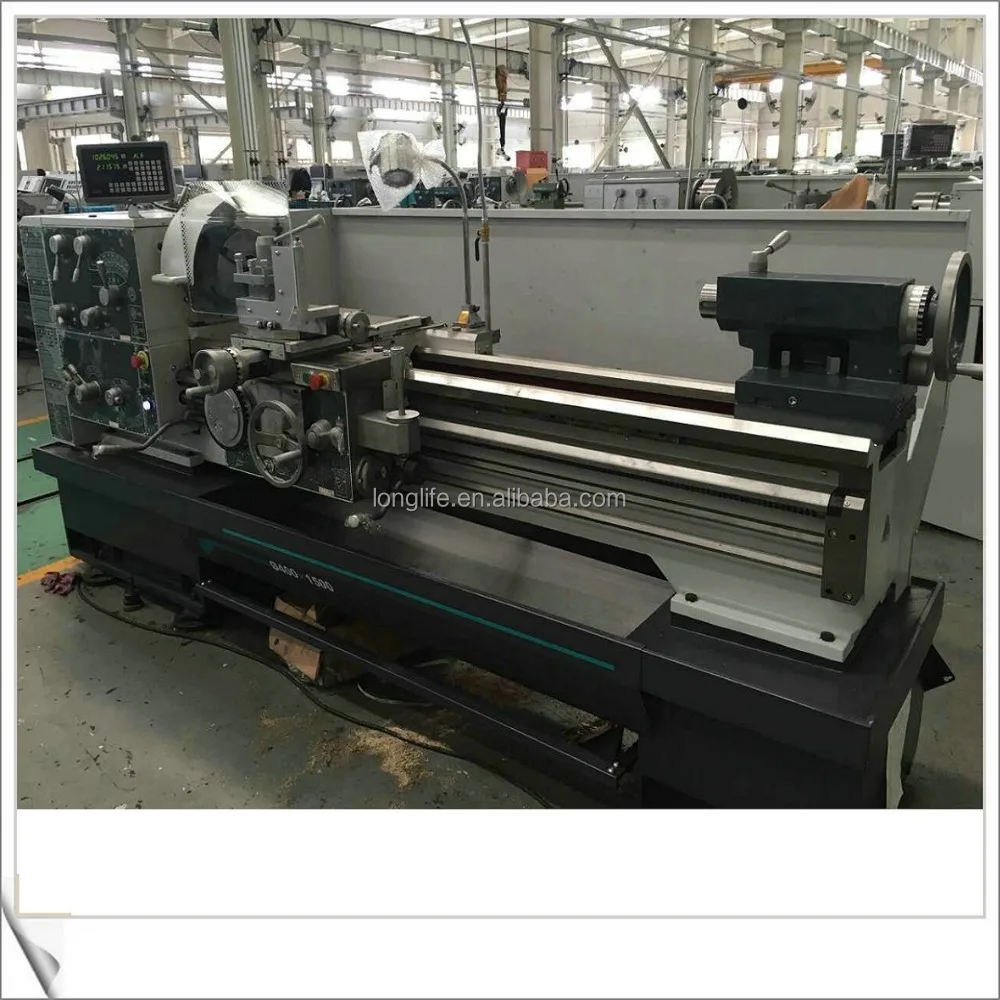

CDS6250B/Cx3000 Universal Center Lathes
Brief Introduction
+C6240 series universal center lathe machine are capable of various turning applications, mainly used for I.D and O.D. cylindrical face taper surface and other parts that features rotating surface.
+such universal center lathe machine is suitable for face turning, grooving, parting, drilling and other popular metric, inch, module and diametral pitch threads.
+such universal center lathe machine is perfectly suitable for small valume production plant and machinery maintenance shops, and can machine a range of materials, including steel, cast iron and non-ferrous metals.
+Gap lathe features a removable gap, which is the main difference between horizontal lathe and gap lathe, and can be adjusted to machine larger or longer workpieces, thus suitable for process disk parts and irregular shaped parts.
+Various combinations of metric, imperial lathes with miscellaneous functions are available upon request.
* As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice.
Main Technical Data
Specifications | Unit | CDS6250Bx3000 | CDS6250Cx3000 |
Max. swing over bed | mm | Dia.500 | Dia.500 |
Max. swing over cross slide | mm | Dia.290 | Dia.290 |
Max. swing over gap | mm | Dia.760 | Dia.760 |
Gap length(from spindle nose) | mm | 280 | 280 |
Max. work piece length | mm | 3000 | 3000 |
Max. cutting length | mm | 2950 | 2950 |
Width of bed ways | mm | 394 | 394 |
Spindle nose |
| D8 | D8 |
Spindle bore | mm | Dia.90 | Dia.110 |
Max. bar diameter allowed to pass | mm | Dia.82 | Dia. 105 |
Spindle speed ranges | rpm | 26~2000(16 speeds) | 26~1700(16 speeds) |
Spindle center height | mm | 250 | 250 |
Spindle motor power |
| 7.5(10HP) | 7.5 (10HP) (11kW. optional) |
Max. swing over carriage |
| 290 | 315 |
Longitudinal feed range | mm/r | 0.044~1.48 | 0.044~1.48 |
Cross feed range | mm/r | 0.022~0.74 | 0.022~0.74 |
Metric Pitch | mm | 0.5~80 (53 kinds) | 0.5~80 (73 kinds) |
Modular Pitch | MOD | 0.5~40 (66 kinds) | 7/16~80 (47kinds) |
Inch thread | TPI | 7/16~80(47 kinds) | 0.5~40 (45 kinds) |
Diametrical Pitch | DP | 7/8~160(48kinds) | 7/8~160 (47kinds) |
Max. size of turning tool shank | mm | 25x25 | 25x25 |
Travel of top slide | mm | 150 | 150 |
Swivel angel of top slide |
| ±45° | ±45° |
Max. travel of tool post(X-axis) | mm | 340 | 340 |
Max. travel of tool post(Z-axis) | mm | 2950 | 2950 |
Tailstock quill diameter | mm | Dia.75 | Dia.75 |
Tailstock quill travel | mm | 150 | 150 |
Tailstock quill taper |
| No. 5 MT | No. 5 MT |
Machine dimensions | mm | 4930x1223x1295 | 4930x1223x1295 |
Machine weight | kg | 3120/4280 | 3120/4280 |
Free Std Accessories
S.N | Name | Size |
1 | 3-jaw chuck | Φ250 mm |
2 | Steady rest | Φ30~Φ160mm |
3 | Follow rest | Φ20~Φ80 mm |
4 | Catch plate | 1 Set |
5 | Turret Protection | 1 Set |
6 | Chuck Protection | 1 set |
8 | Dead center | D115, DB1221 |
9 | Center sleeve | 1 Set |
10 | Oil gun | 1 Set |
11 | Wrench tool | 1 set |
12 | Foundation bolt | 1 set |
13 | Foot brake | 1 set |
14 | Protection of leadscrew | 1 set |
Optional Accessories
Pls send inquiry to me for optioanl accessories and other further information about such lathe machines.
