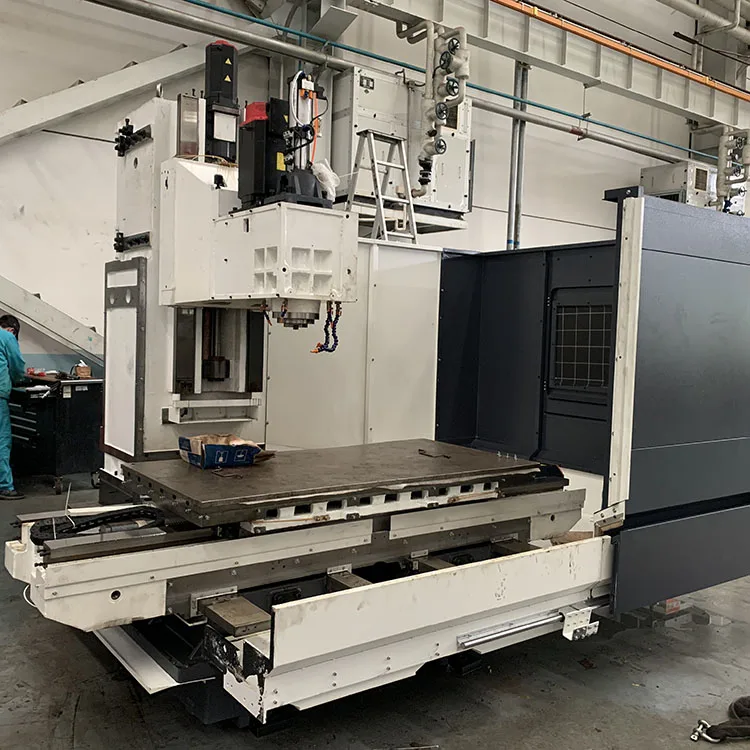

VMF1800 3 axis CNC Vertical Milling Machine for moulds without atc
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (270466598):
Product Overview
Description
VDF1800 3 axis cnc vertical milling machine
Brief Introduction
VDF-1800 cnc vertical milling machine/vertical machining center is the new generation CNC machine produced by our Dalian factory.
This machine is adopted for plate, disc, and shell etc. precision parts production, which makes the machine easy to operate. This machine is ideally suited for accurate milling, boring, drilling, counterboring and tapping operation etc. automatically on work table within one set up.
This VMC equipped with full-closed guarding, automatic lubrication system, coolant system, automatic chip removal, manual spray gun, and MPG.
It has the characteristic of high reliability, high accuracy and high rigidity for its rigid main structure emulated and calculated by means of engineering mechanics.
CE Standard and CE Certificate;
Main Technical Data
Specifications | Unit | Parameter |
Table ( L x W) | mm | 2000x800 |
T-slot (Numbers x Width x Distance) (b/t slots) | mm | 6x18x125 |
Table load Max | kg | 2500 |
Distance from spindle center line to column guide way surface | mm | 850 |
Distance from spindle nose to table upper surface | mm | 180~942 |
X/Y/Z travel | mm | 1850/800/762 |
X/Y/Z guide way type |
| Sliding guide way |
X/Y/Z rapid traverse speed | m/min | 15/15/12 |
Feed rate | mm/min | 1~6000 |
Positioning accuracy | mm | X:0.030 Y/Z:0.020 |
Repeat positioning accuracy | mm | X:0.013 Y/Z:0.008 |
X/Y/Z servo motor power | Nm | 22/22/22 |
Spindle motor power | kW | 11/15 wide range motor |
Spindle speed range | r/min | 45~6000 |
Spindle taper |
| #50 (7/24) |
Tool magazine capacity/Type |
| 24/swing arm |
Tool adaptor type |
| BT50 |
Max. Tool weight | kg | 15 |
Max. Tool diameter / length | mm | 110/350 swing arm |
Time of tool change (T-T) | sec | 3.5 |
Air pressure requirement | MPa | 0.6 |
Power requirement | kW | 40 |
Overall dimension (L x W x H) |
| 5160x3480x3120 |
Net weight | kg | 14500 |
Machine covers an area of size | mm | 5530x895 |
Free Std Accessories
Optional Accessories
Pls send inquiry to me for optioanl accessories and other further information about such cnc vertical milling machines.
Our Services
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
6, Call us at any time: +86-1313 046 5353/156 411 21240|Wechat: 1313 046 5353
7, Fax us:+86-411-84410129
