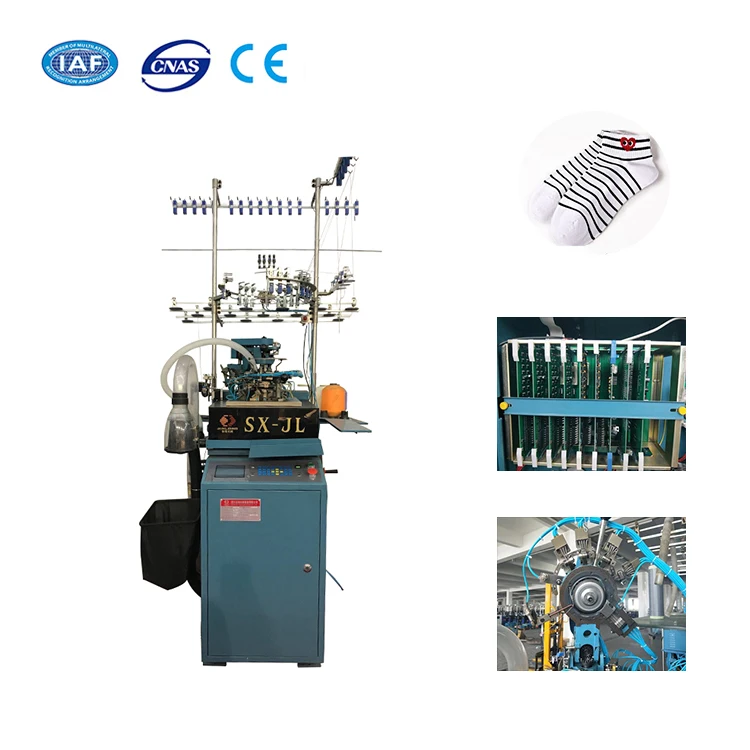

300 Pairs Per Day Single Cylinder Sock Knitting Machine SJL 600

Product Overview

Description

Technical character:

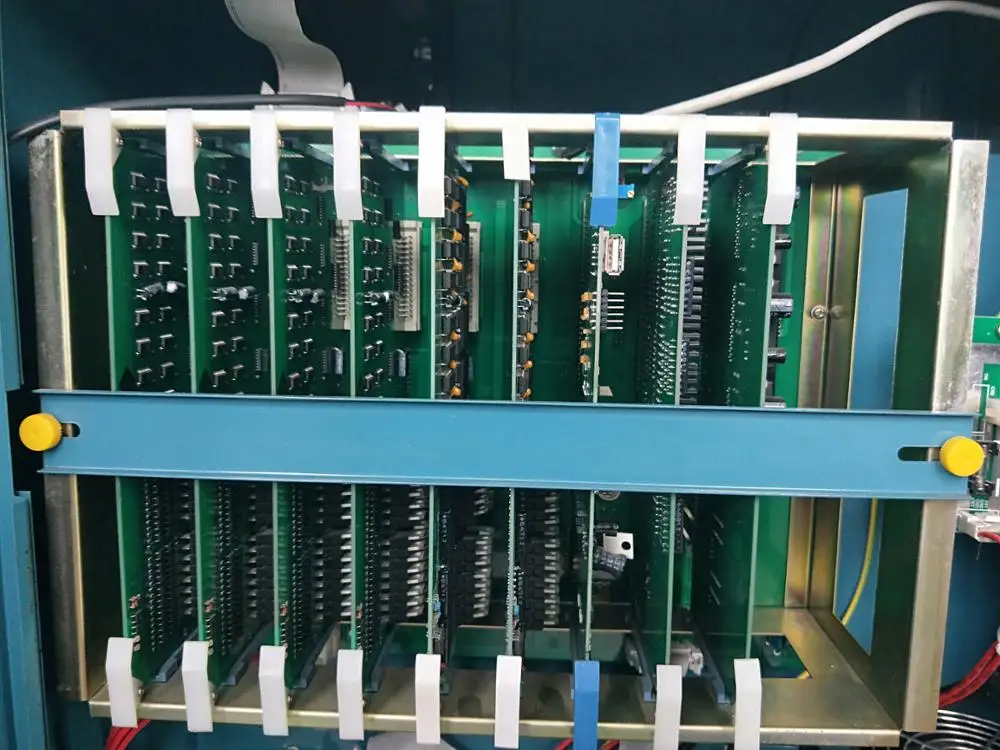

•      It adopts computer-controlled device made in Korea, which has close structure, complete function and feasible operation. The in/out operation of every brake of this device is controlled by data and the style of socks is changed by the input of pattern and chain procedure.

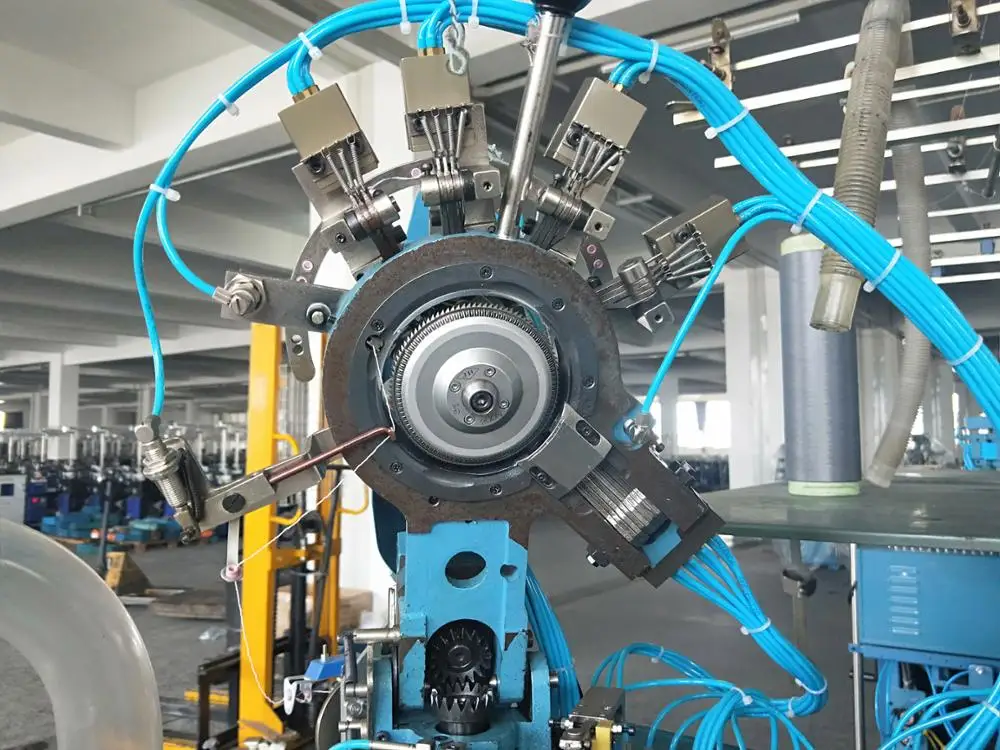

•      It has 8main feeders, 5suits of assistant feeders and every suit has 3 yarn mouth, one sock can be 16 colors at most.
•      The yarn-sending speed of the elastic is controlled by step-advancing motor and can knit varies of elastic sock tubes.
•      It adopts clear and big display screen with selection of languages includes Chinese, English so the data of computer is very clear.
•      The lubricant oil system adopts computer-controlled procedure to add oil to keep more steady oil-adding quantity.
•      The pattern can be saved after accidental power off or other problems, and the last work procedure can be automatically continued after restart.
•      Accident checking is perfect and protection system of thread-break and needle-break is very sensitive.
•      Pattern designing of system is brief and easy to operate, it can be run on common computer with windows98/2000/XP.



	SJL-600	SJL-600TM	SJL-600M
Round radius	3+1/2	3+3/4	4
Needle speed	84200N	84168N	84168N
Rotation speed	350400r/min	250300r/min	250300r/min
Power	1.00KW	1.00KW	1.00KW
Dimension	150×120×240 (W×L×H,cm)	150×120×240 (W×L×H,cm)	150×120×240 (W×L×H,cm)
Weight	330Kg	330Kg	330Kg
	115×105×180 (W×L×H,cm)	115×105×180 (W×L×H,cm)	115×105×180 (W×L×H,cm)
